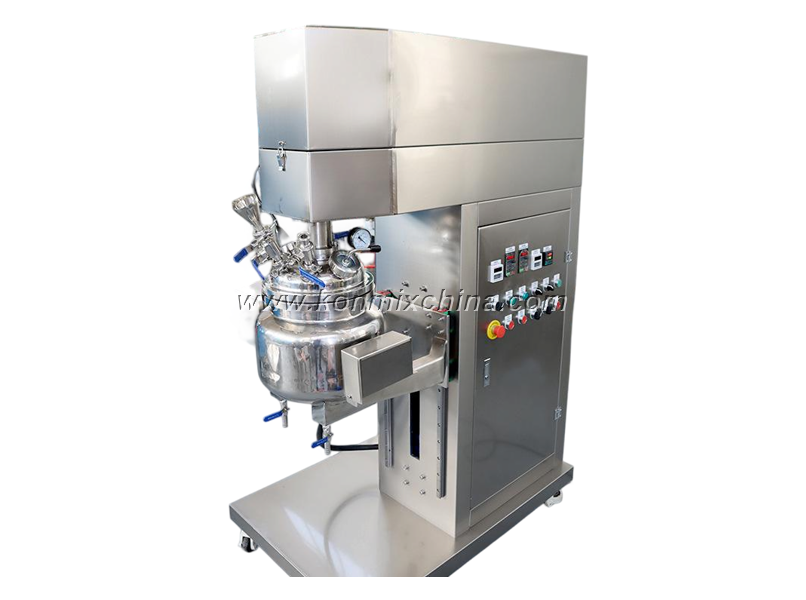

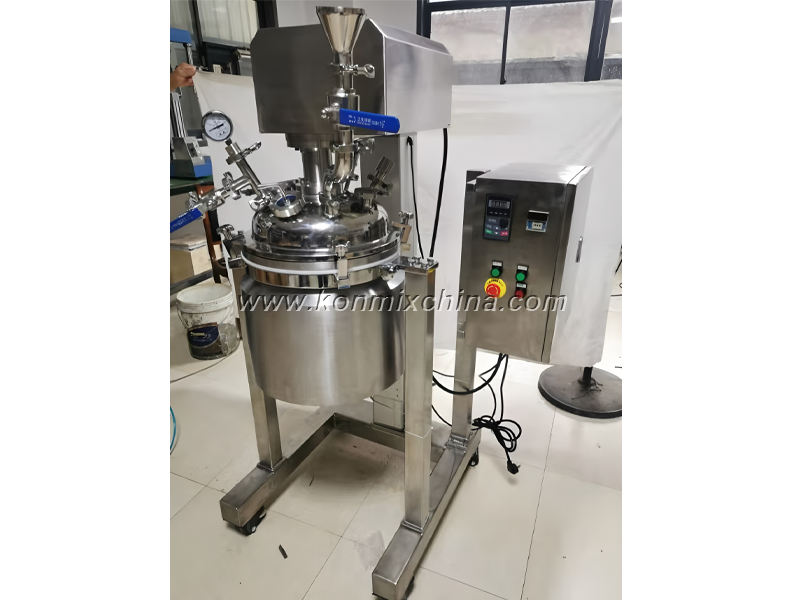

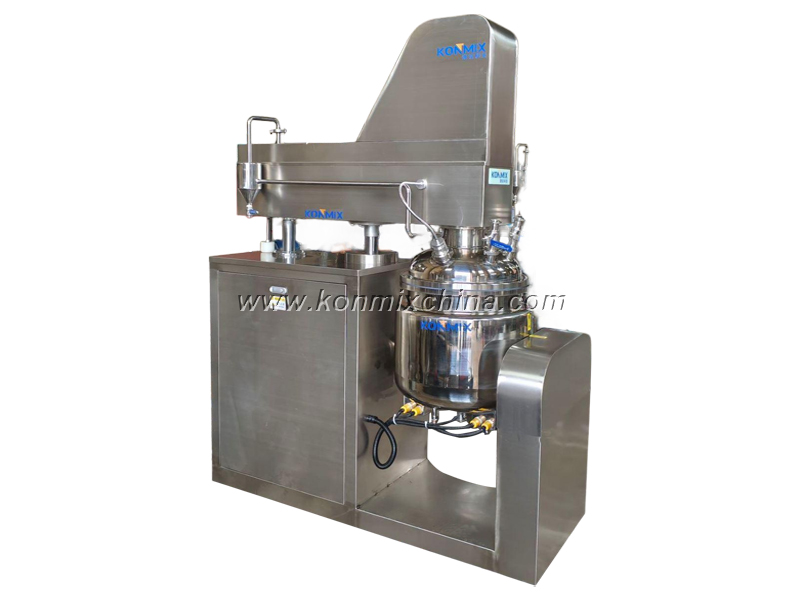

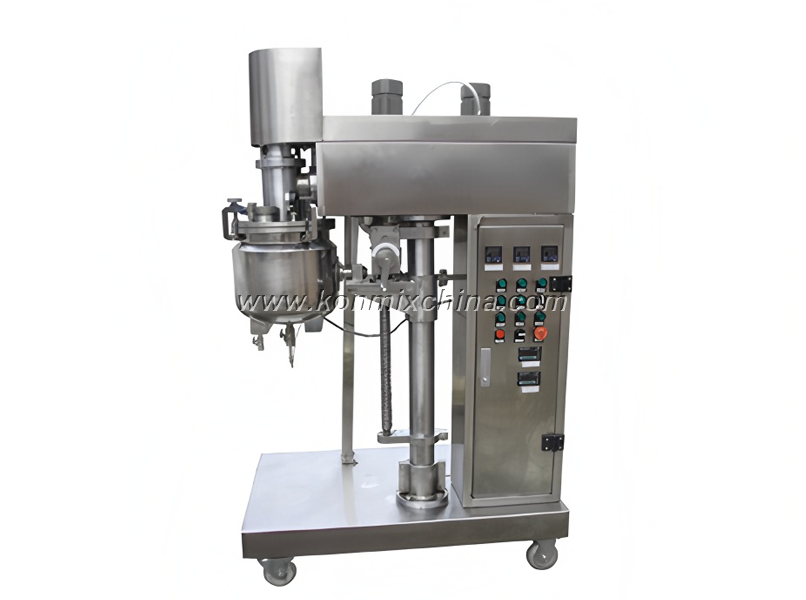

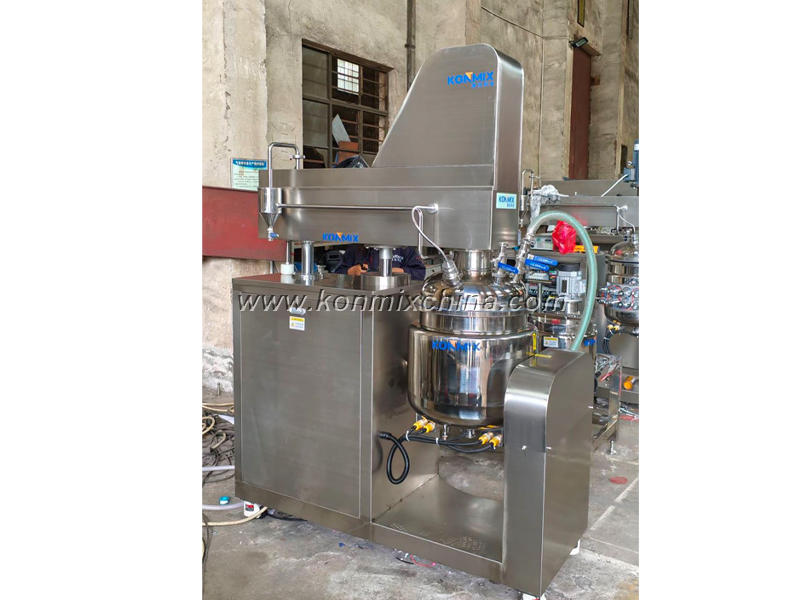

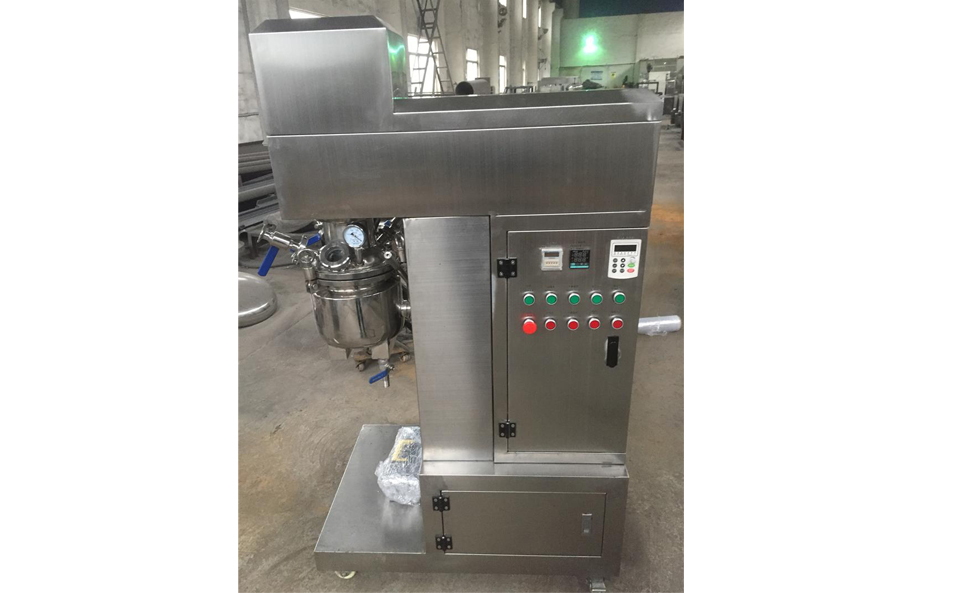

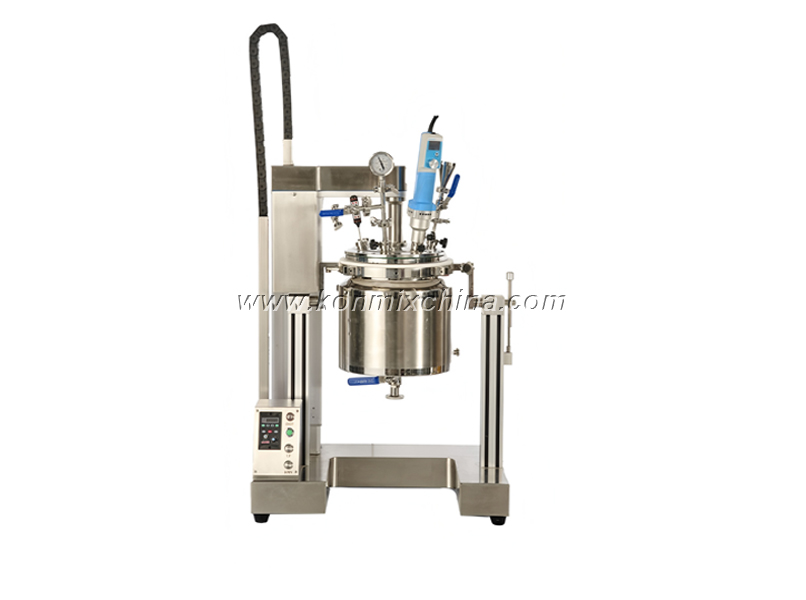

Category： Vacuum emulsifying mixer
Model：KZH-1L, KZH-2L, KZH-5L, KZH-10L
Feature： Vacuum work condition, with stainless-steel pot, and pot includes the rotor-stator heads & mixing stirrer. The running speed is 0~ 3000 RPM.
It can equip the heating function or cooling with temperature controllings etc.
The main pot/reactor's cover will lift up together with the homogenizer head.
This model can make top grade cosmetic, cream, pharmaceutical ointment, honey, like this type materials.
• The main pot's top lid with lifting up&fall down function.
• Machine's contacting parts are made of SS304 or SS316L stainles-steel.
• Contacting parts' surface is treated to sanitary grade.
• The materials in water-phase pot & oil-phase pot can be feeded into emulsifying pot.
• With electrical heating up function.
• Each pot/reactor can be heated by electrical heaters with conductive medium.
• The temperature can be set and automatically controlled.

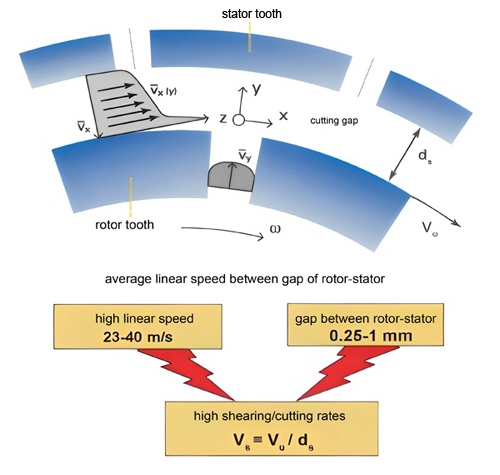

The main pot's precised stator and rotor workheads match well with each other perfectly for shearing, mixings.
High-speed rotation motor drives rotor, which generates vacuum condition between the stator and rotor.
So materials are sucked into the chamber from the top of the stator &rotor and also from the bottom.
Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor.
After processed, the materials are flying out and generates strong turbulence under the action of forces from different direction.
Stable emulsion is obtained after repeated disaggregation, dispersion, homogenization, shearing for a certain period with help of mature production technology and certain quantity emulsifier.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Lifting stroke(mm) | Vacuum degree(Mpa) |
KZH-1L | ≤1 | 0.37 | 0~3000 | 200 | -0.095 |
KZH-2L | ≤2 | 0.55 | 0~3000 | 300 | -0.095 |
KZH-5L | ≤5 | 0.75 | 0~3000 | 300 | -0.095 |
| KZH-10L | ≤10 | 1.1 | 0~3000 | 400 | -0.095 |
This machine is for Laboratory small materials or mid-batch trials.
With the popular capacity of 1L, 2L, 5L, 10L for selection.
Applied materials: suitable for emulsifying, homogenizing and dispersing materials in industries, such as biology, pharmacy, food, cosmetic, ink and pesticide, honey --- etc.
