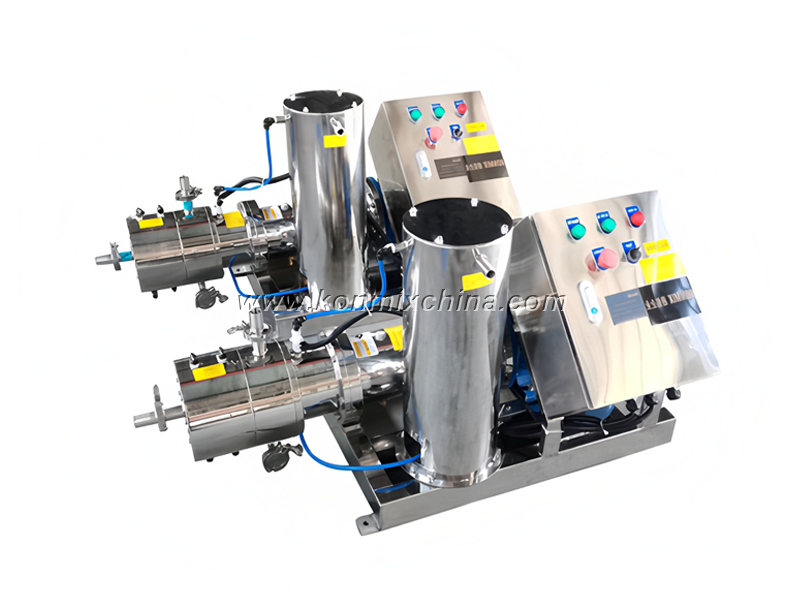

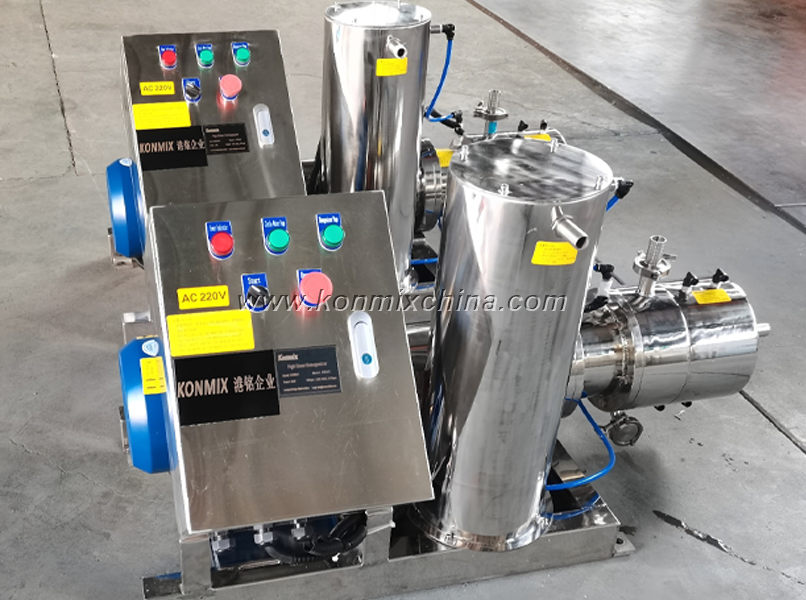

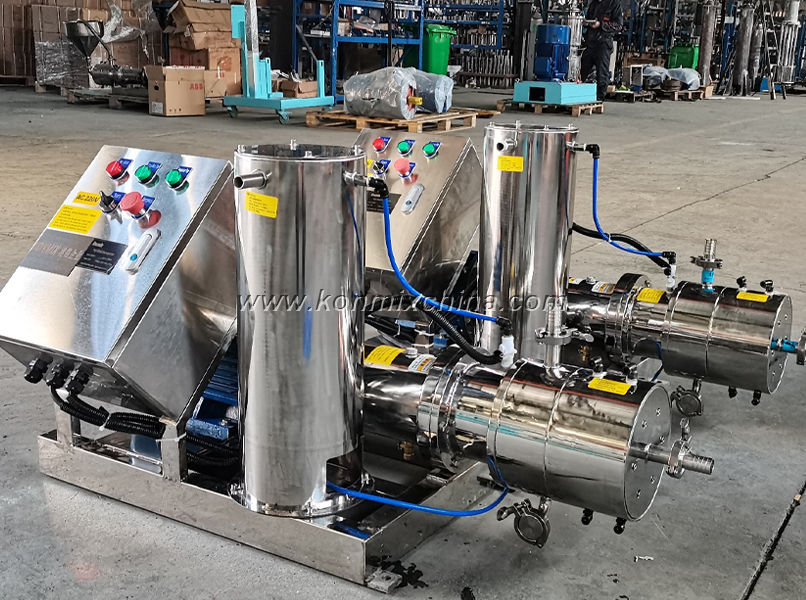

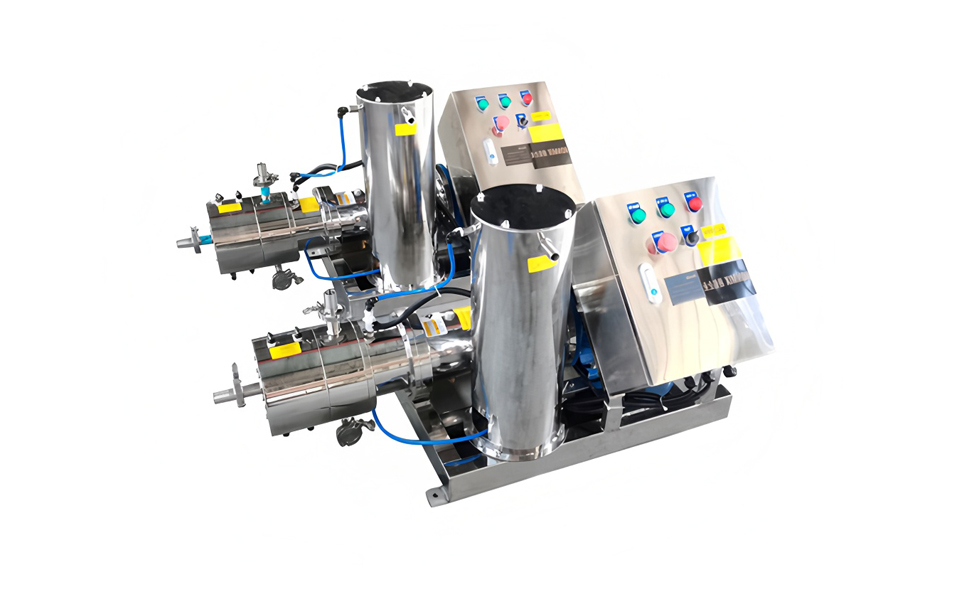

Category： Inline Homogenizer Pump
Model：KRB-S Series
Feature： With self-circulation coolings for the mechanical seals, and also with self-circulation cooling protection function. The running speed is variable rpm.

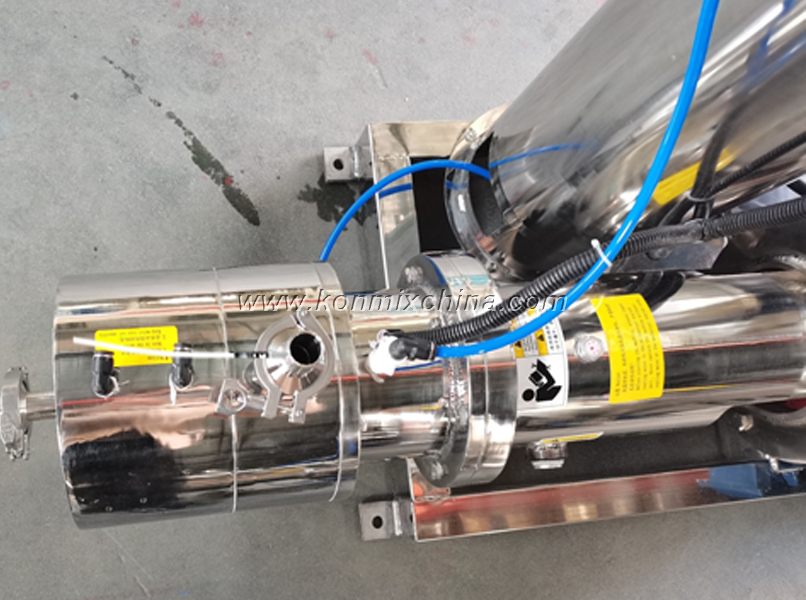

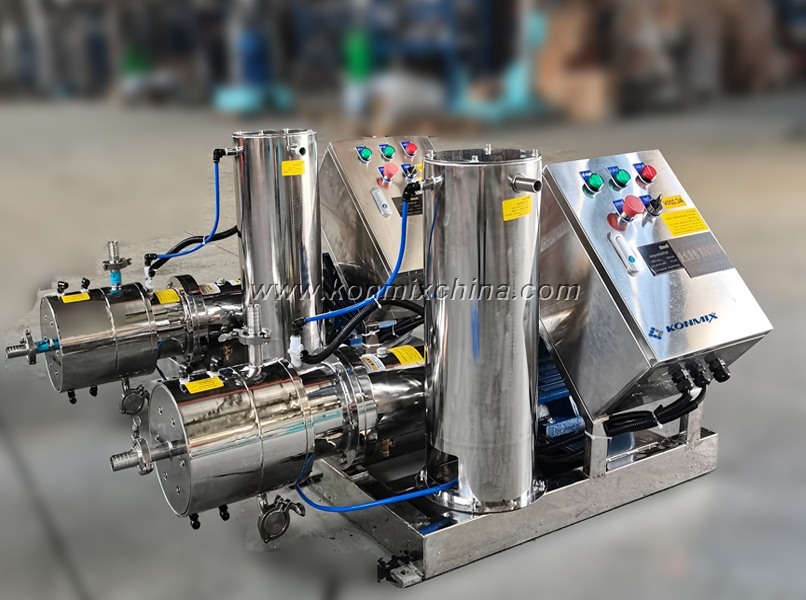

This In-Line Homogenizer has the self-circulation cooling system, which will protect the mechanical-seals in whole working process.

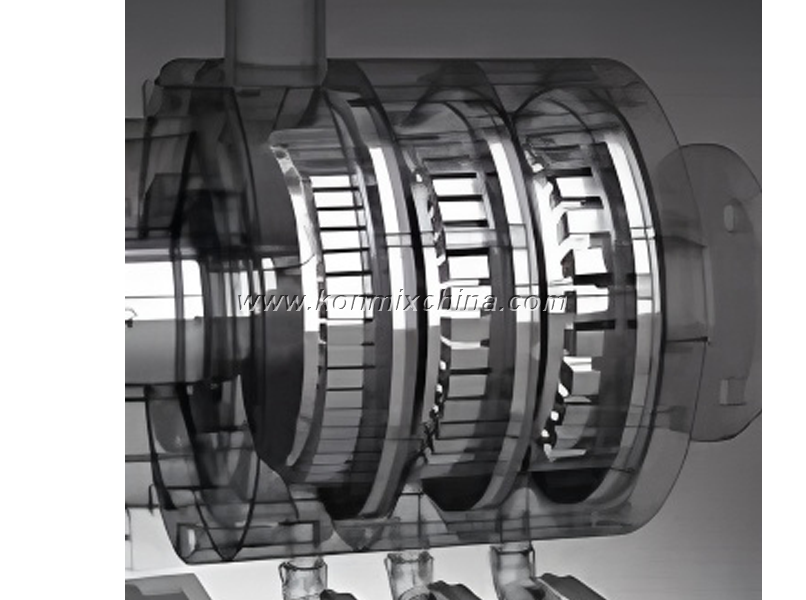

Its work-chamber consists of 3 stages rotor & stator structure.
The strong centrifugal force absorbs materials into the work-chamber from axial direction to achieve strong shears.
All materials are highly sheared & homogenized by multi-layer rotor/stator blades.
• With different powers for optional.
• Users can select with various running speed control.
• The contacting parts can be made in SS304 or SS316L stainless steel.
• Work style: Inline high-shearing.
• Three stages rotor/stator workhead, first stage is 1-layer rotor & stator, second stage is 2-layers rotors & stators,
third stage is 3-layers rotors & stators.
• Favored temperature -20<200℃.
• The chamber can be made with jacket for cooling or heating up.
• Stable products are produced after one time or a few times circulation.
• With self-circulation coolings system for protection & cooling the mechanical seal.
This Inline emulsifier is circulation workings, there are a few layers stator and rotor in the chamber.

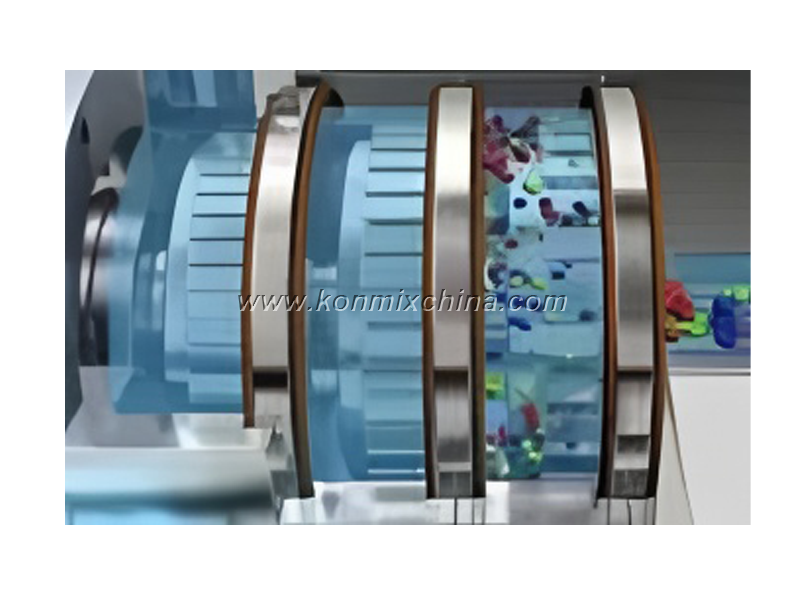

The work chamber is totally three(3) group/stage: first stage is 1-layer rotor & stator, second stage is 2-layers rotors & stators, third stage is 3-layers rotors & stators.
The stator and rotor is double coupling design with high matching precision.

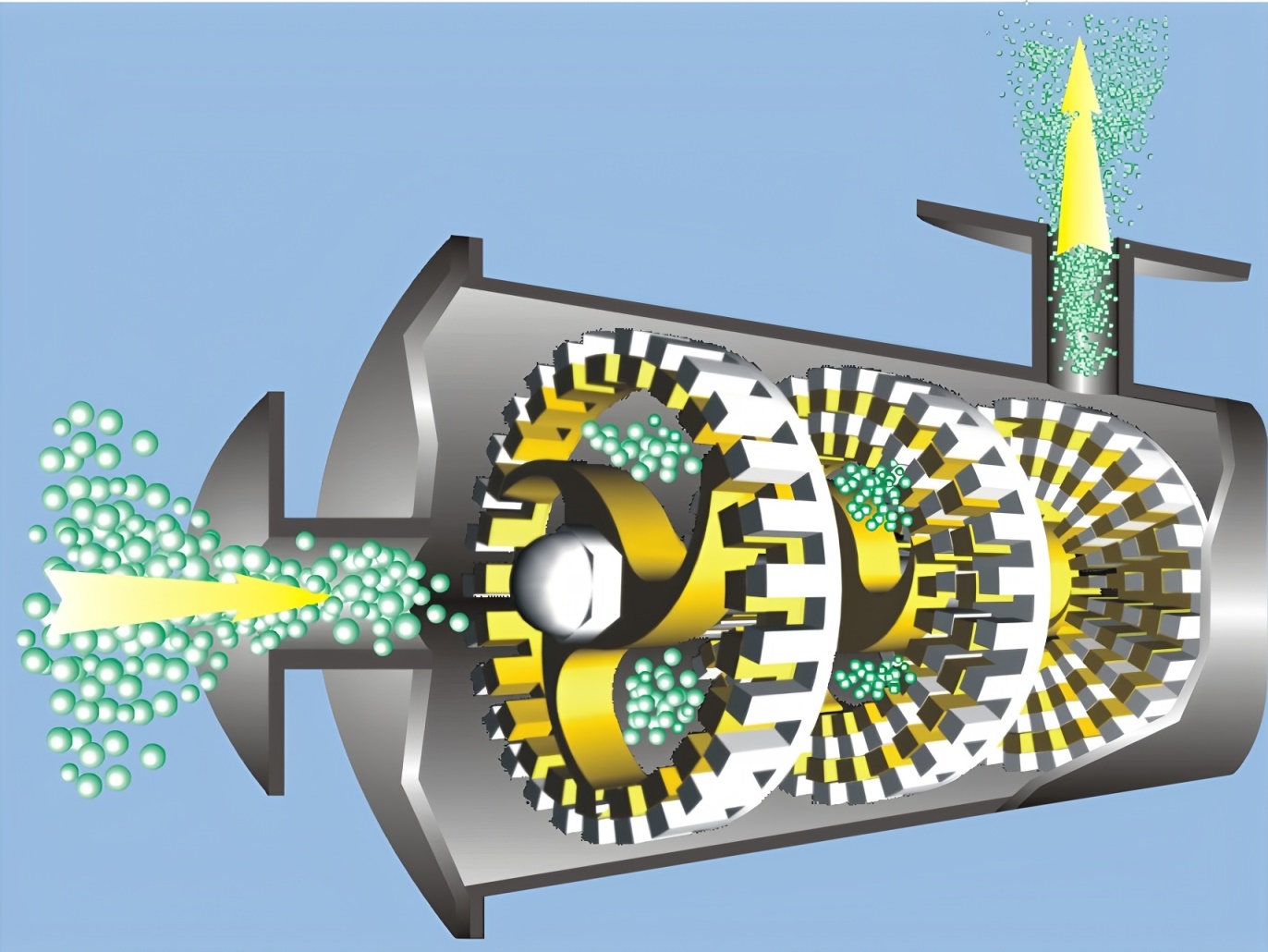

The central shaft driven by the motor rotating at a high speed vacuumizes the gap of the rotor and stator, which suck the materials into the stator and rotor chamber.
Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision engineered gap of the stator and rotor.
After processing, the materials are flying out and generates strong turbulence under the action of forces from different direction.
The self-circulation coolings system will circulate to work for cooling the mechanical seals.
| Model | Power(kw) | Speed(rpm) | Flow rate(m3/h) | Inlet nozzle(mm) | Outlet nozzle(mm) |
| KRB-S-2.2 | 2.2 | 3000 | 2 | DN32 | DN25 |
| KRB-S-4 | 4 | 3000 | 5 | DN40 | DN32 |
| KRB-S-7.5 | 7.5 | 3000 | 7 | DN40 | DN40 |
| KRB-S-11 | 11 | 3000 | 10 | DN50 | DN50 |
| KRB-S-15 | 15 | 3000 | 12 | DN65 | DN50 |
| KRB-S-18.5 | 18.5 | 3000 | 16 | DN65 | DN65 |
| KRB-S-22 | 22 | 1450 | 18 | DN80 | DN80 |
| KRB-S-30 | 30 | 1450 | 25 | DN80 | DN80 |
| KRB-S-37 | 37 | 1450 | 30 | DN100 | DN80 |
| KRB-S-45 | 45 | 1450 | 40 | DN100 | DN100 |
| KRB-S-55 | 55 | 1450 | 50 | DN125 | DN125 |
| KRB-S-75 | 75 | 1450 | 70 | DN150 | DN150 |
| KRB-S-90 | 90 | 1450 | 85 | DN150 | DN150 |
| KRB-S-110 | 110 | 1450 | 120 | DN200 | DN200 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
This machine is suitable to do the materials of viscosity up to 30,000 cps.
Production capacity scope: 0~10,000L.
Applied materials: Suitable for industrial coatings, general printing inks, paint, and general pigment dispersions, cosmetic, adhesive, ointment, cream, shampoo, calcium carbonate powder, liquids agrochemicals etc.
