Category: Lab homogenizer

Model:KZR-2L, KZR-5L, KZR-10L, KZR-20L, KZR-30L

Feature: With vacuum system to perform vacuum work condition. The high-shear rotor-stator workhead with emulsification, homogeneous & mixings, running speed is variable 0~3000 RPM

+86-21-60546980, 60546110

+86-13501616469

info@konmixchina.com

Lab Vacuum Homogenizer

Lab Vacuum Homogenizer

Lab Vacuum Homogenizer

Lab Vacuum Homogenizer

Lab Vacuum Homogenizer

Overview

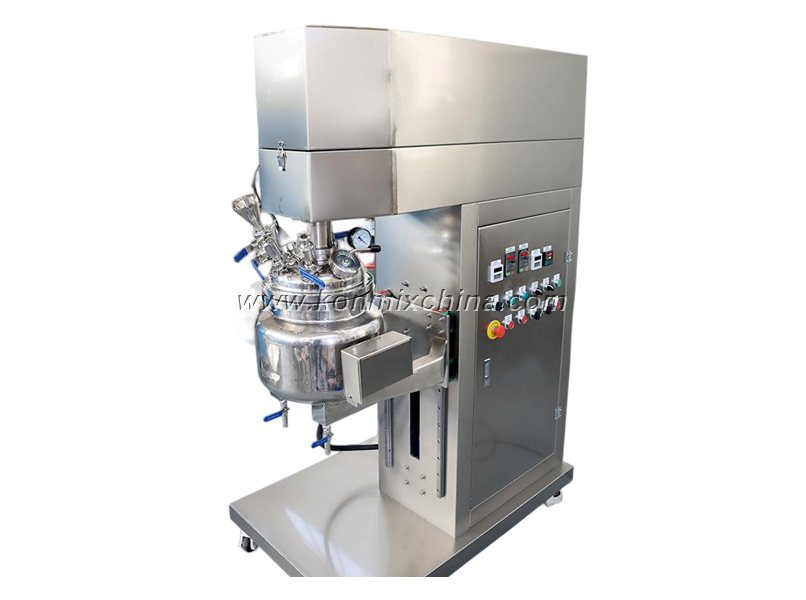

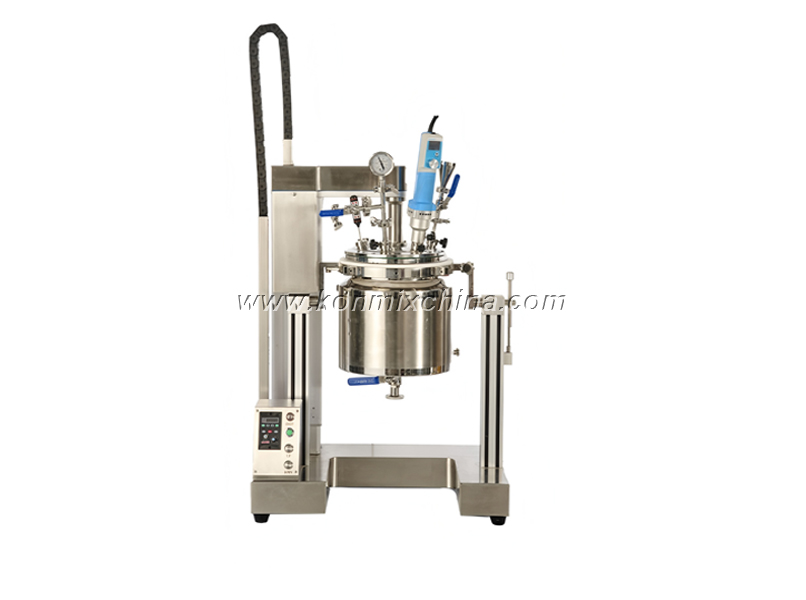

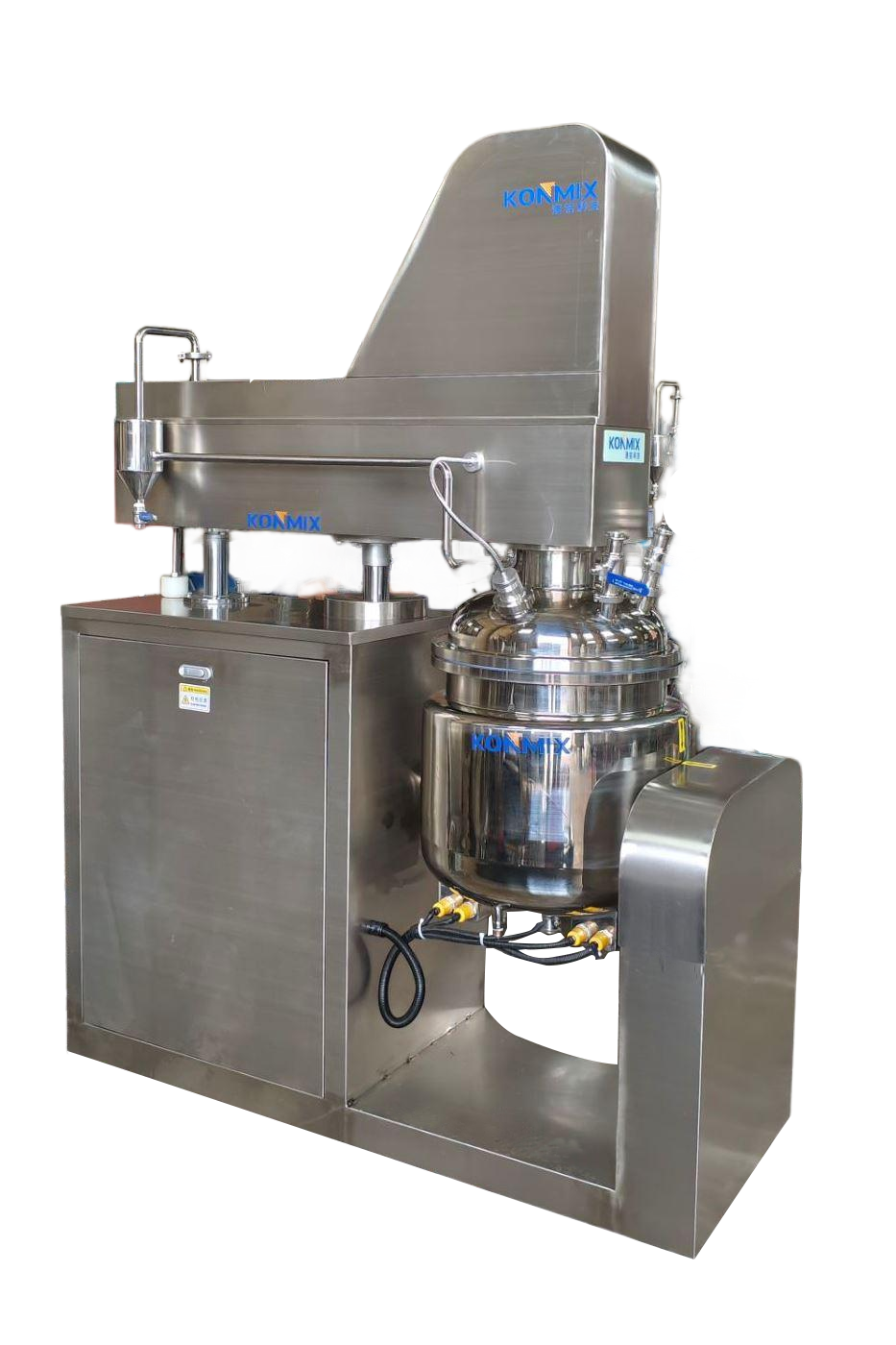

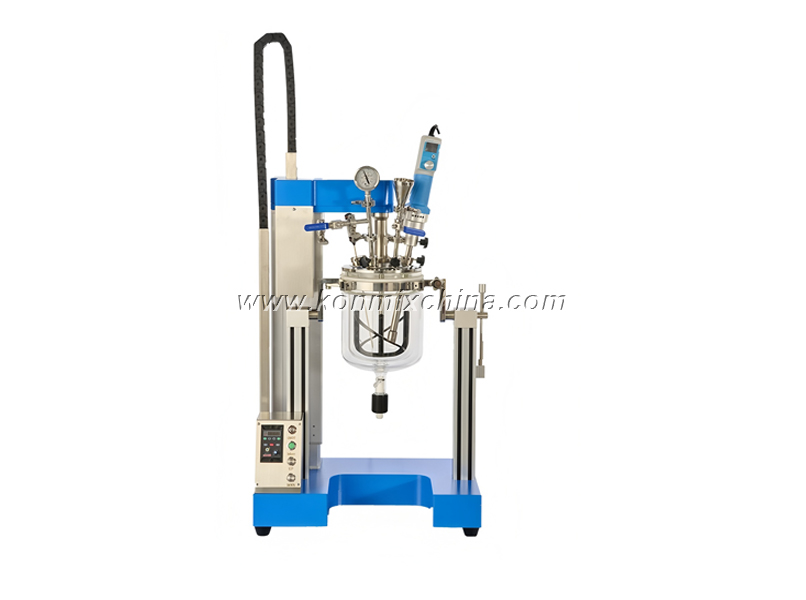

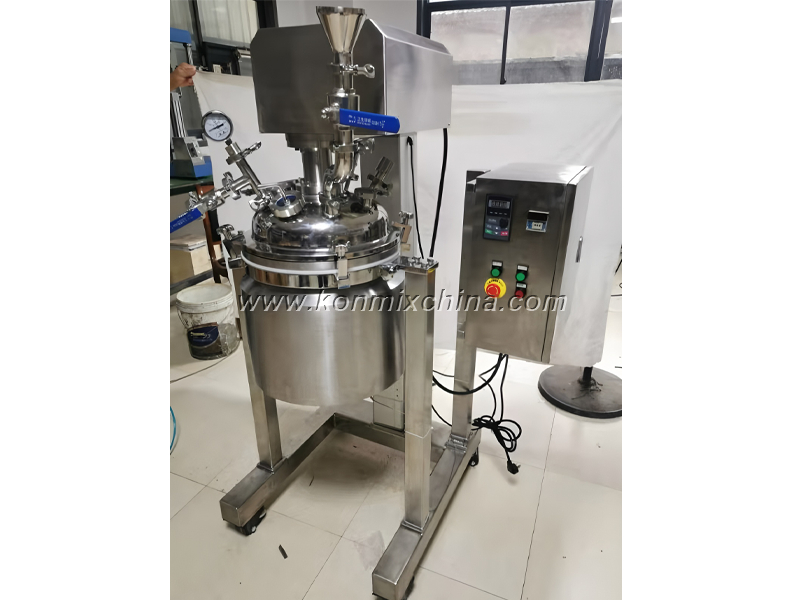

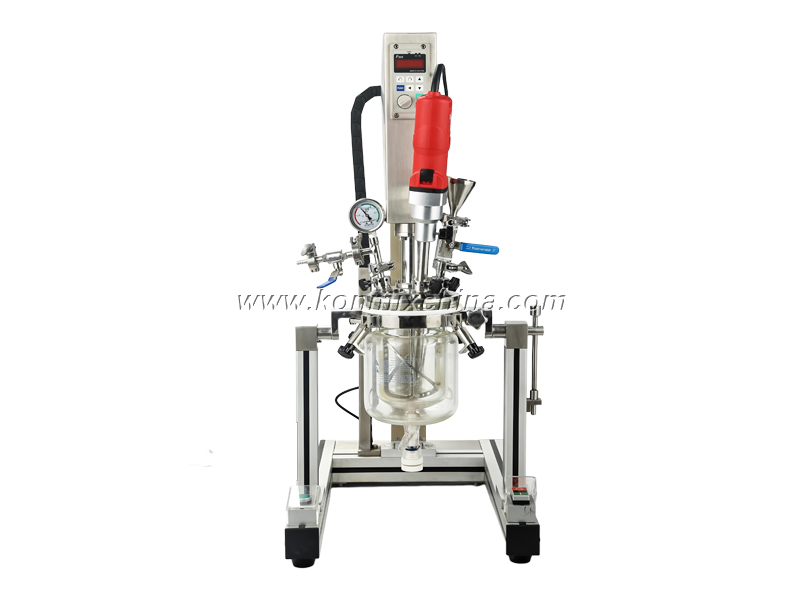

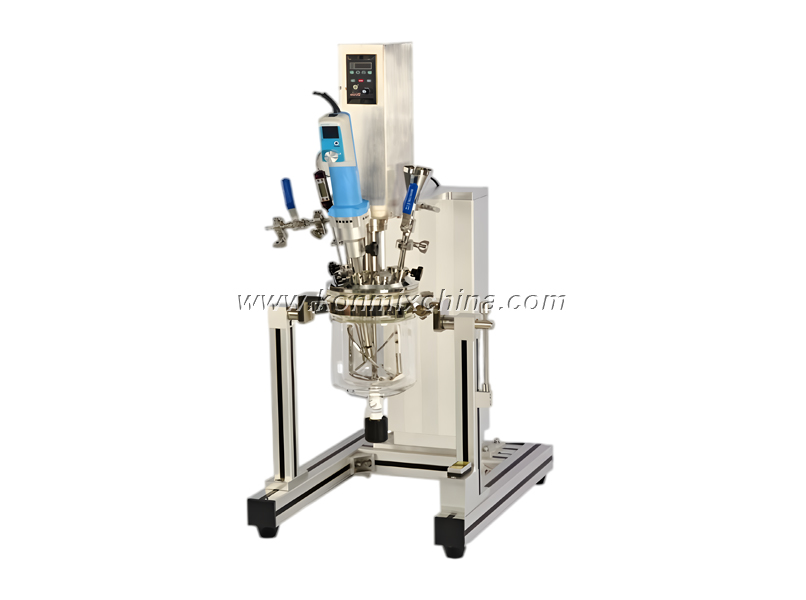

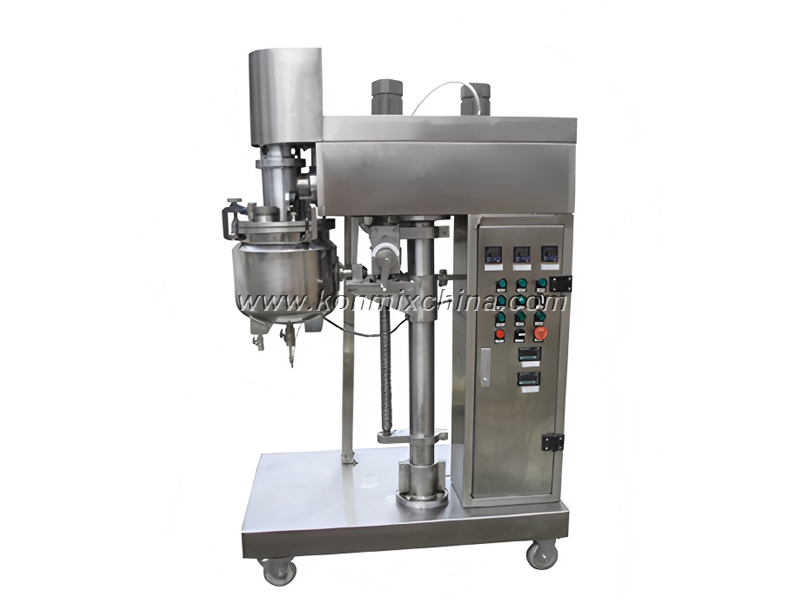

This Lab Vacuum Homogenizer is suitable for laboratory small trials, with vacuum work system.

This equipment mainly consists of homogenizing pot, low-speed stirrer, vacuum system & heating or cooling system.

With the electric heating/steam heating system with temperature control,electrical control etc.

The main reactor's top lid can lift up or fall down together with the mixing workheads.

This model will achieve the top grade cosmetic, cream, pharmaceutical ointment, honey, creams, -- etc.

Design Highlights

•  The main mixing pot's lid with lifting up & falling down function.

•  Machine's contacting parts are made of SS304 or SS316L stainles-steel.

•  Contacting parts' surface is treated to sanitary grade.

•  The materials in water-phase pot & oil-phase pot can be feeded into emulsifying pot.

•  With electrical heating up function.

•  Each pot/reactor can be heated by electrical heaters with conductive medium.

•  The temperature can be set and automatically controlled.

Working Principle

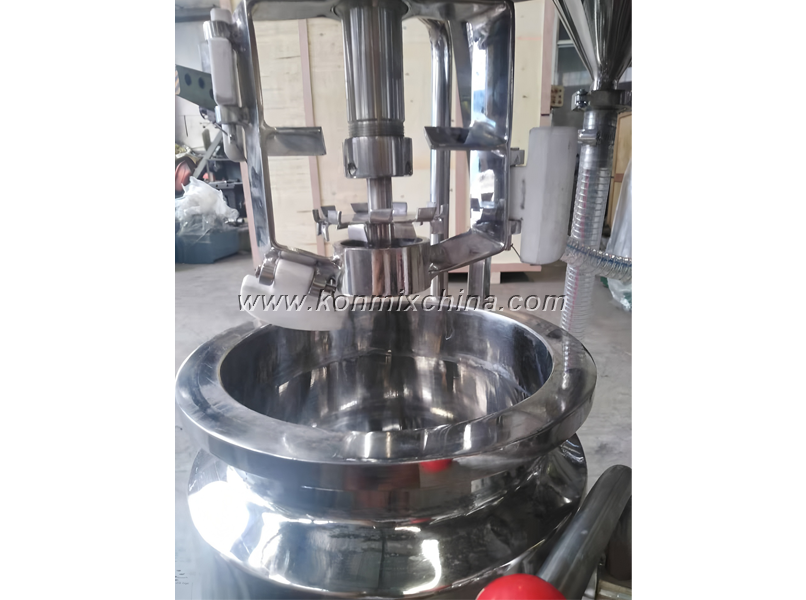

This machine's precised stator-rotor workhead matches with each other perfectly.
High-speed rotation motor drives the rotor to rotate at high speed, which generates vacuum condition between the stator and rotor. So materials are sucked into the chamber from the top of the stator &rotor and also from the bottom. Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor. After processed, the materials are flying out and generates strong turbulence under the action of forces from different direction. Stable emulsion is obtained after repeated disaggregation, dispersion, homogenization, shearing for a certain period with help of mature production technology and certain quantity emulsifier.

Technical Parameters
ModelCapacity(L)Power(kw)Speed(rpm)Lifting stroke(mm)Vacuum degree(Mpa)
KZR-2L≤20.750~3000200-0.095
KZR-5L≤51.50~3000300-0.095
KZR-10L≤101.50~3000400-0.095
KZR-20L≤202.20~3000500-0.095


Product Application

Lab trials' capacity:  with 2L,  5L, 10L, 20L, 30Liters for selection.

Applied materials: suitable for emulsifying, homogenizing and dispersing materials in industries, such as biology, pharmacy, food, cosmetic, ink and pesticide, honey --- etc.
