Category： Batch Homogenizer/emulsifier
Model：KRH-C
Feature： High shear rotor-stator, with hydraulic lifting up cylinder, suitable for middle-batch and big capacity production.
Our homogenizer machine has the customizable service.
User can select the lifting stand/frame & fixed on vessel style, whcih is called " suspension entry-top type ".
This homogenizer also has style of stationary on reactor or vessel's top.
The workhead is high-shear rotor/stator mixing workhead, and made of high quality stainless-steel.
User can select to have the " Vacuum working condition ".
This homogenizer also can install on vessel's bottom.
• Claw shaped workhead (Dual direction suction) is highly precised foundry.
• Good gap fitness and high tip speed ensure excellent emulsifying and homogenizing.
• All components are processed by CNC machine.
• With dynamic and static balance test for main shaft.
• Whole machine will ensure the stable&safe operation.
• This model can have the lifting up/lowering function.
• With below different style shear head for optional.
• Voltage: 380/220V, 50/60HZ, 3P or customized.
• Power: 1.1KW ~ 110KW.
• Speed control: can select variable speed control.
• High shear workhead is highly precised foundry.
• The contacts parts made of stainless-steel, and surface polished up to Ra 0.4.

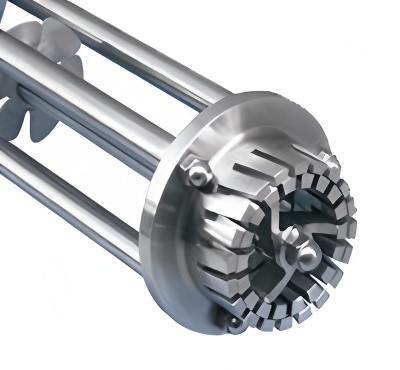

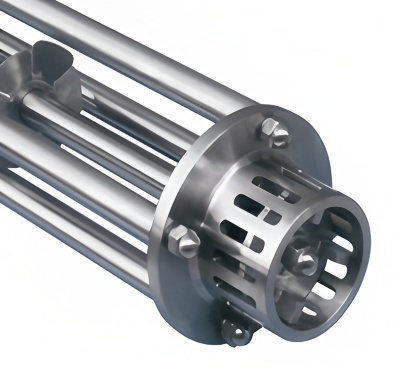

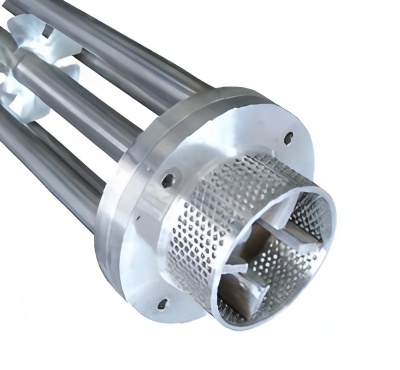

Sawtooth type Large Round hole type Screen hole type
For fine emulsions For high viscous products For middle or low viscosity

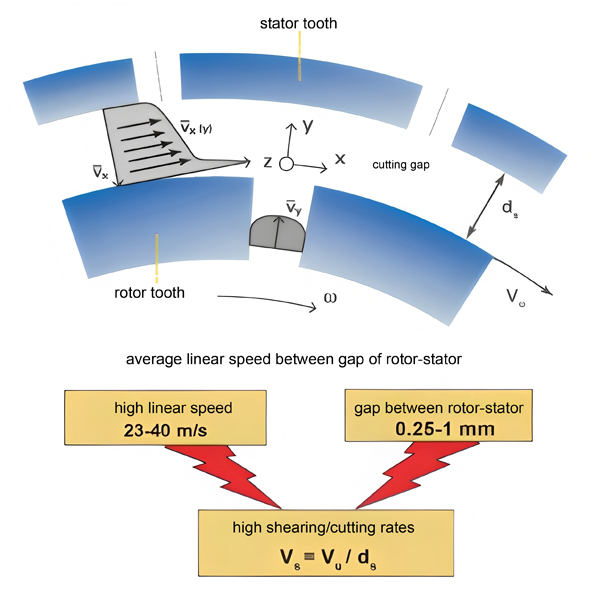

It is consisted of high shearing rotor and stator workheads.
Under the centrifugal force and hydraulic force generated by the high-speed rotor, the stator will put materials under comprehensive action such as strong shearing, centrifugal extrusion, crashing, hydraulic friction etc. And the solid phase, liquid phase and gas phase which is insoluble at beginning will prompt evenly dispersed and emulsified with various additives.
After high-frequency circulation, stable materials with high quality are obtained in a short time.
With the hydraulic, electric & pneumatic lifting cylinder for selection, so the mixing workhead can lift up when works well.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Lifting stroke(mm) | Lifting power(kw) |
| KRH-C-1.1 | ≤100 | 1.1 | 0~2900 | 500 | 0.55 |
| KRH-C-2.2 | ≤200 | 2.2 | 0~3000 | 600 | 0.55 |
| KRH-C-4 | ≤400 | 4 | 0~3000 | 700 | 0.75 |
| KRH-C-11 | ≤800 | 11 | 0~3000 | 800 | 0.75 |
| KRH-C-15 | ≤1000 | 15 | 0~1450 | 900 | 1.1 |
| KRH-C-22 | ≤2000 | 22 | 0~1450 | 1000 | 1.1 |
| KRH-C-30 | ≤2500 | 30 | 0~1450 | 1100 | 1.5 |
| KRH-C-37 | ≤3000 | 37 | 0~1450 | 1200 | 1.5 |
| KRH-C-45 | ≤4000 | 45 | 0~1450 | 1300 | 1.5 |
| KRH-C-55 | ≤5000 | 55 | 0~1450 | 1500 | 2.2 |
| KRH-C-75 | ≤6000 | 75 | 0~1450 | 1600 | 2.2 |
| KRH-C-90 | ≤7000 | 90 | 0~1450 | 1800 | 3 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
Material viscosity: <=100,000 cps
Production Capacity: 0L ~ 10,000L
Applied materials: suitable for liquid, liquid with powder's high speed shearing, dissolving and homogenious, offten applied in the field of food, coating, paint, dye, printing ink, pesticide, agrochemical, cosmetics, resin, adhesive, latex, pharmaceutical, oil, etc.
