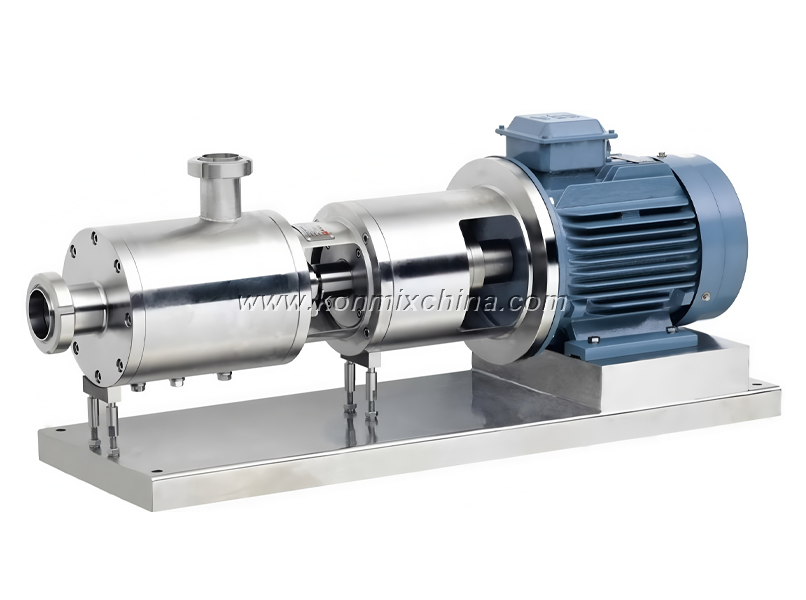

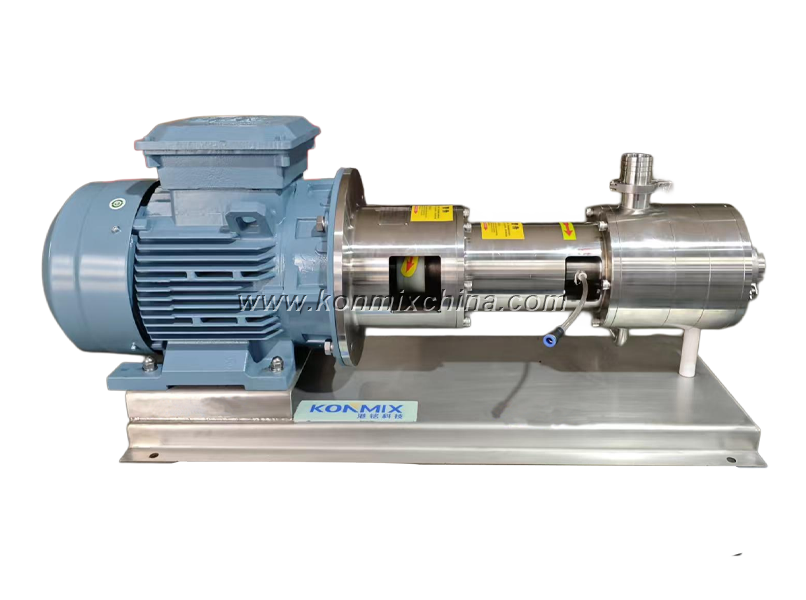

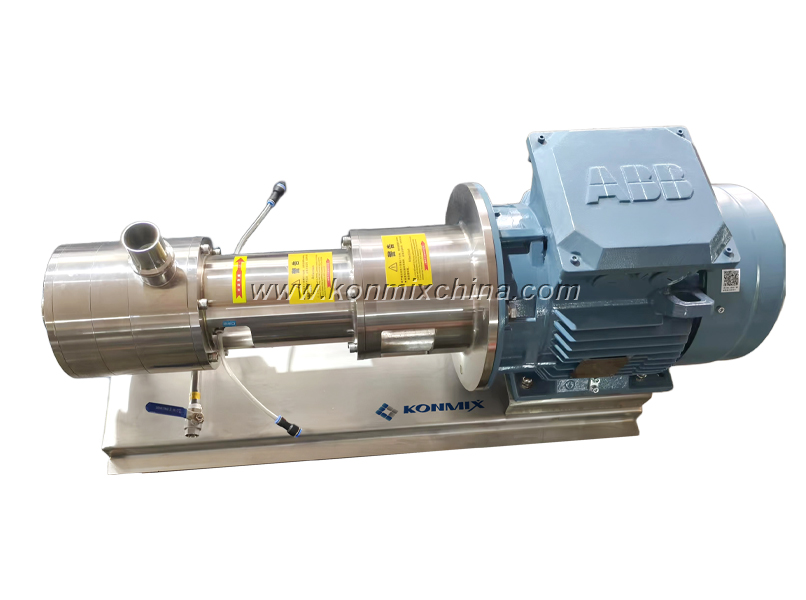

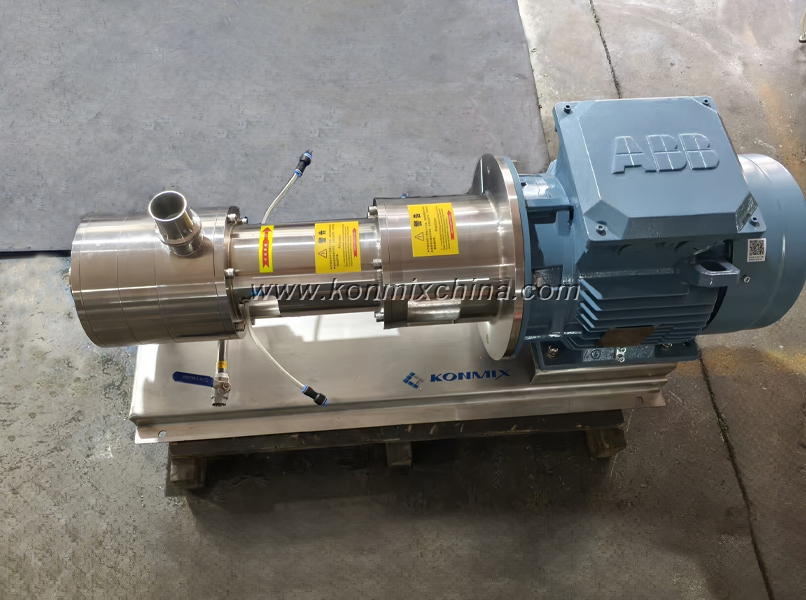

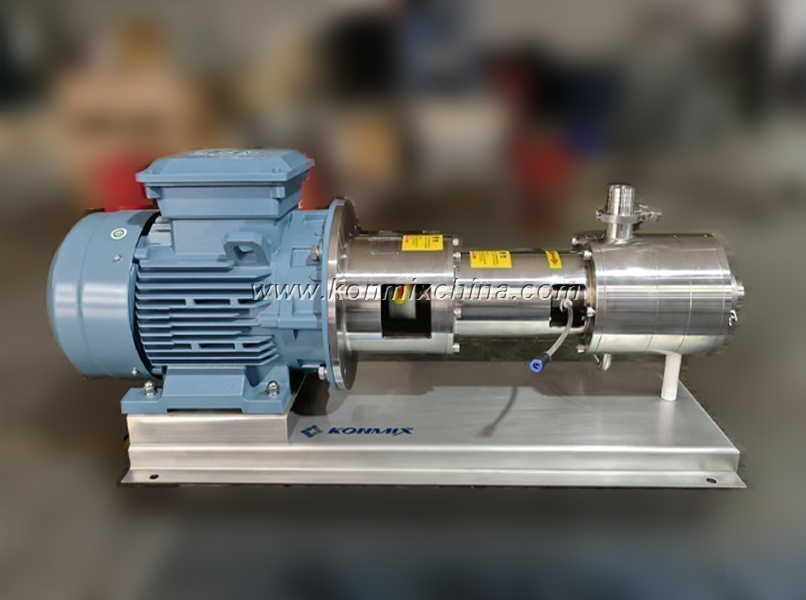

Category： Inline Homogenizer Pump
Model：KRB/3 Series
Feature： In-line high shear homogenizing, 3-stage chamber, with much more layers rotor & stator head, finer high shearing function

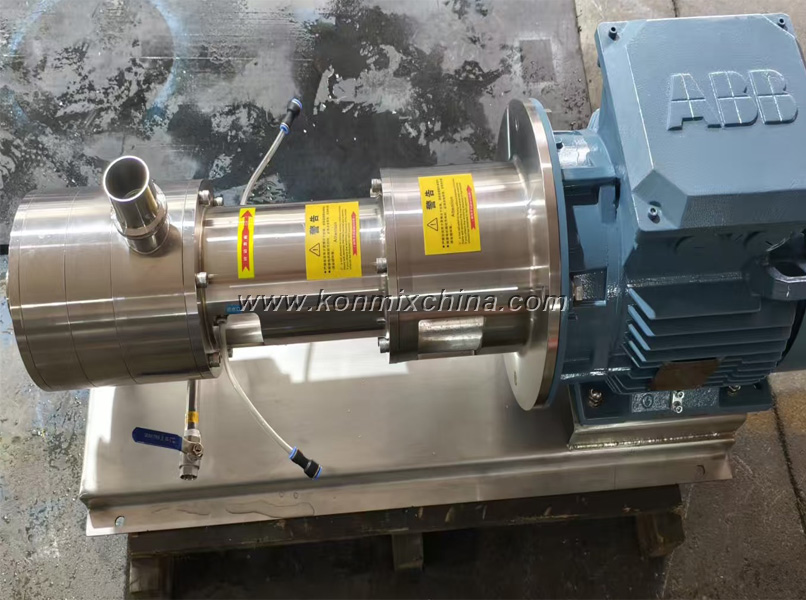

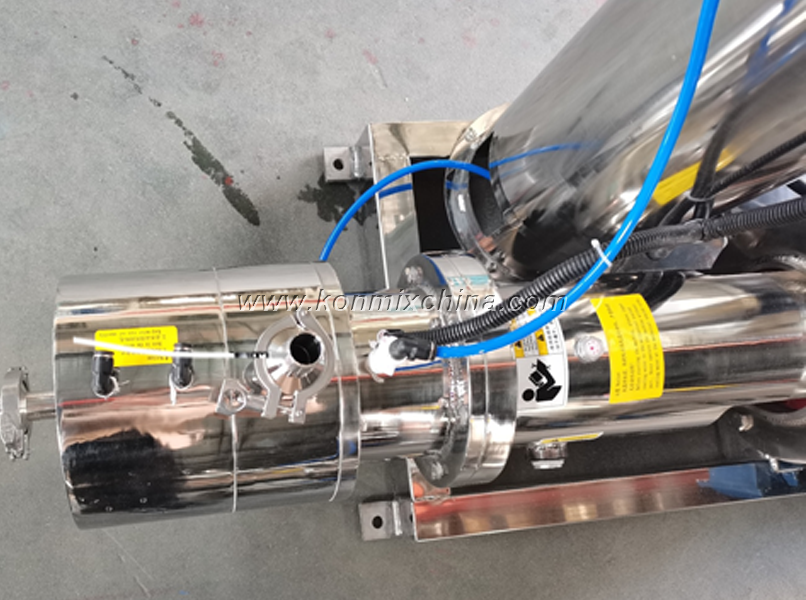

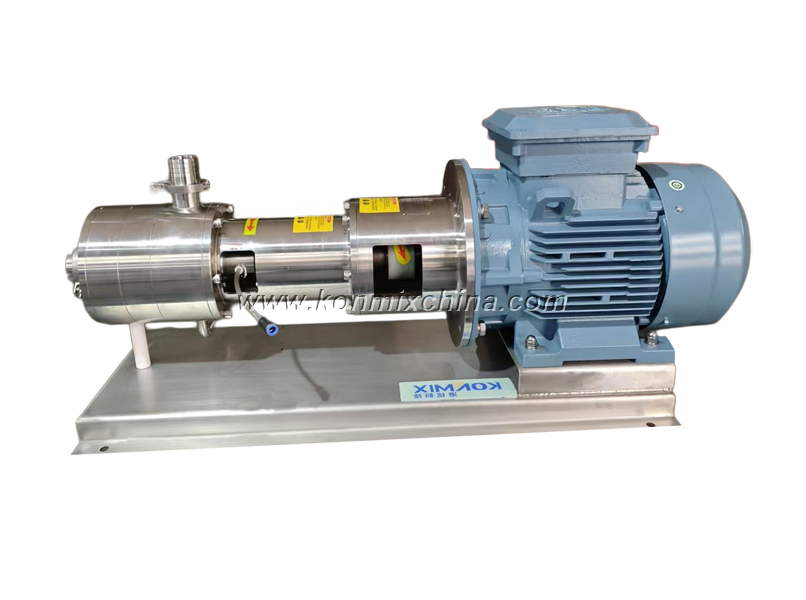

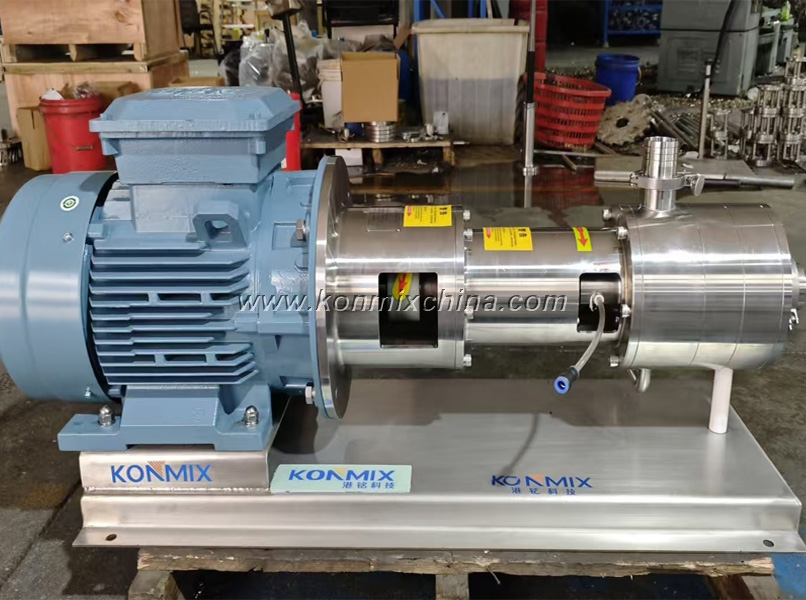

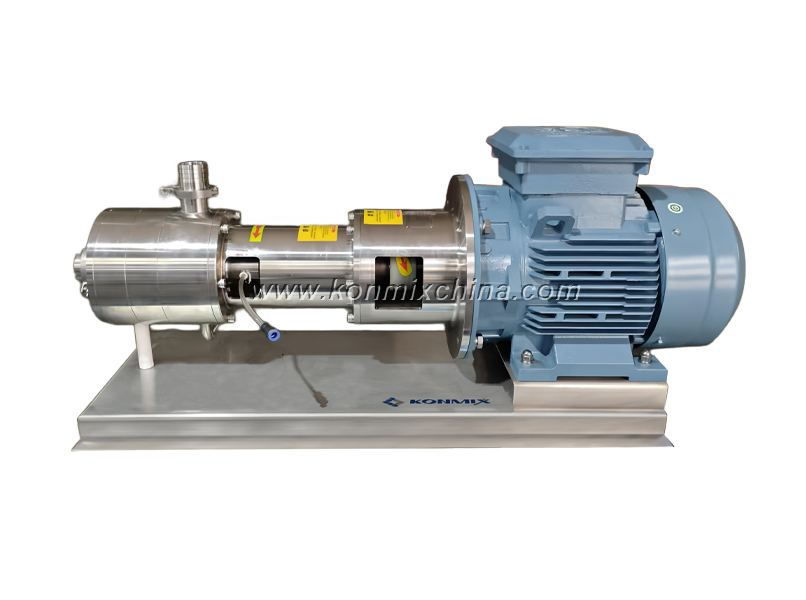

This In-line homogenizer is also called " Inline high-shear homogenizing pump ".
It works in continuous production or circulation of fluid materials.
Its work-chamber consists of three(3) stage group rotor-stator workheads, with much more layers rotors & stators workhead.
The strong centrifugal-force absorbs materials into the working chamber from axial direction.
All the materials are highly sheared & homogenized by multi-layers rotors & stators.
• With different powers for optional.
• Users can select with various running speed control.
• The contacting parts can be made in SS304 or SS316L stainless steel.
• Work style: Inline high-shearing.

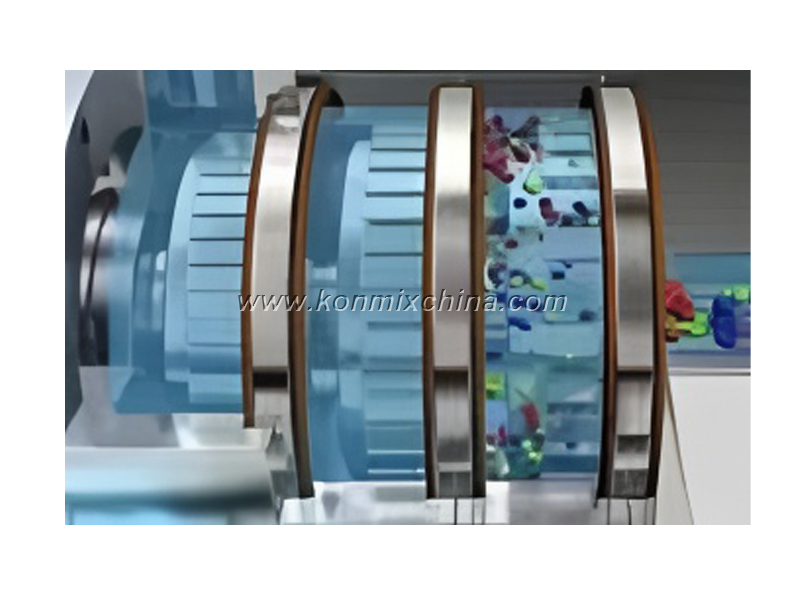

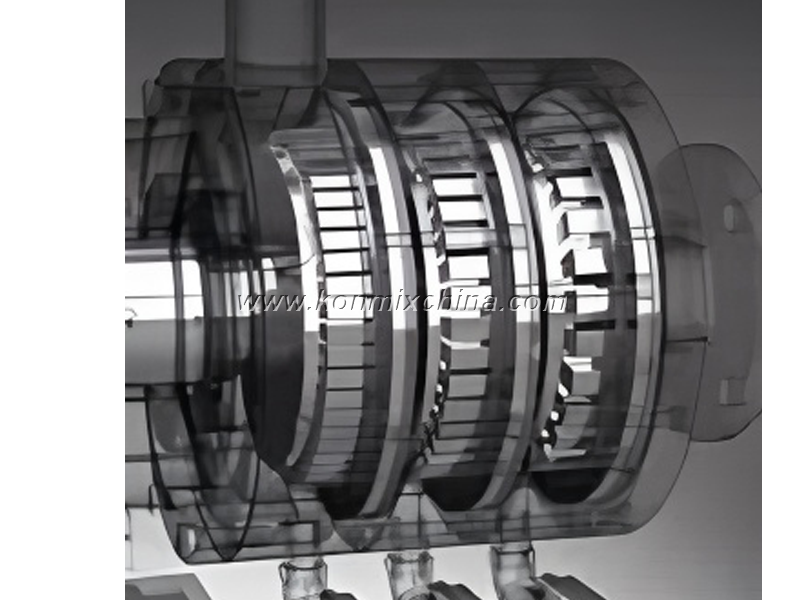

• Three stages rotor/stator workhead, first stage is 1-layer rotor & stator, second stage is 2-layers, third stage is 3-layers rotor & stator.
• Favored temperature -20<200℃.
• The chamber can be made with jacket for cooling or heating up.
• Stable products are produced after one time or a few times circulation.

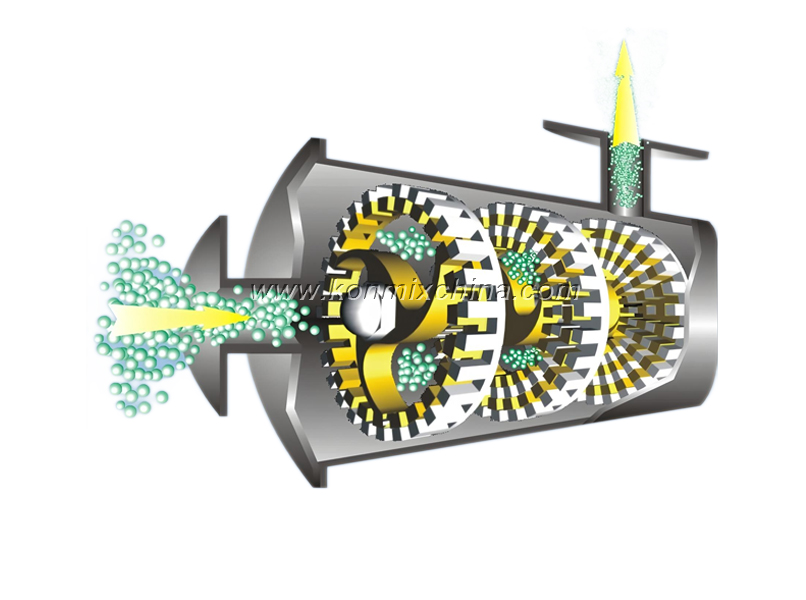

This inline homogenizer (three-stage type) is circulation workings, there are a few layers stator and rotor in the chamber.
The stator & rotor is double coupling design with high matching precision.

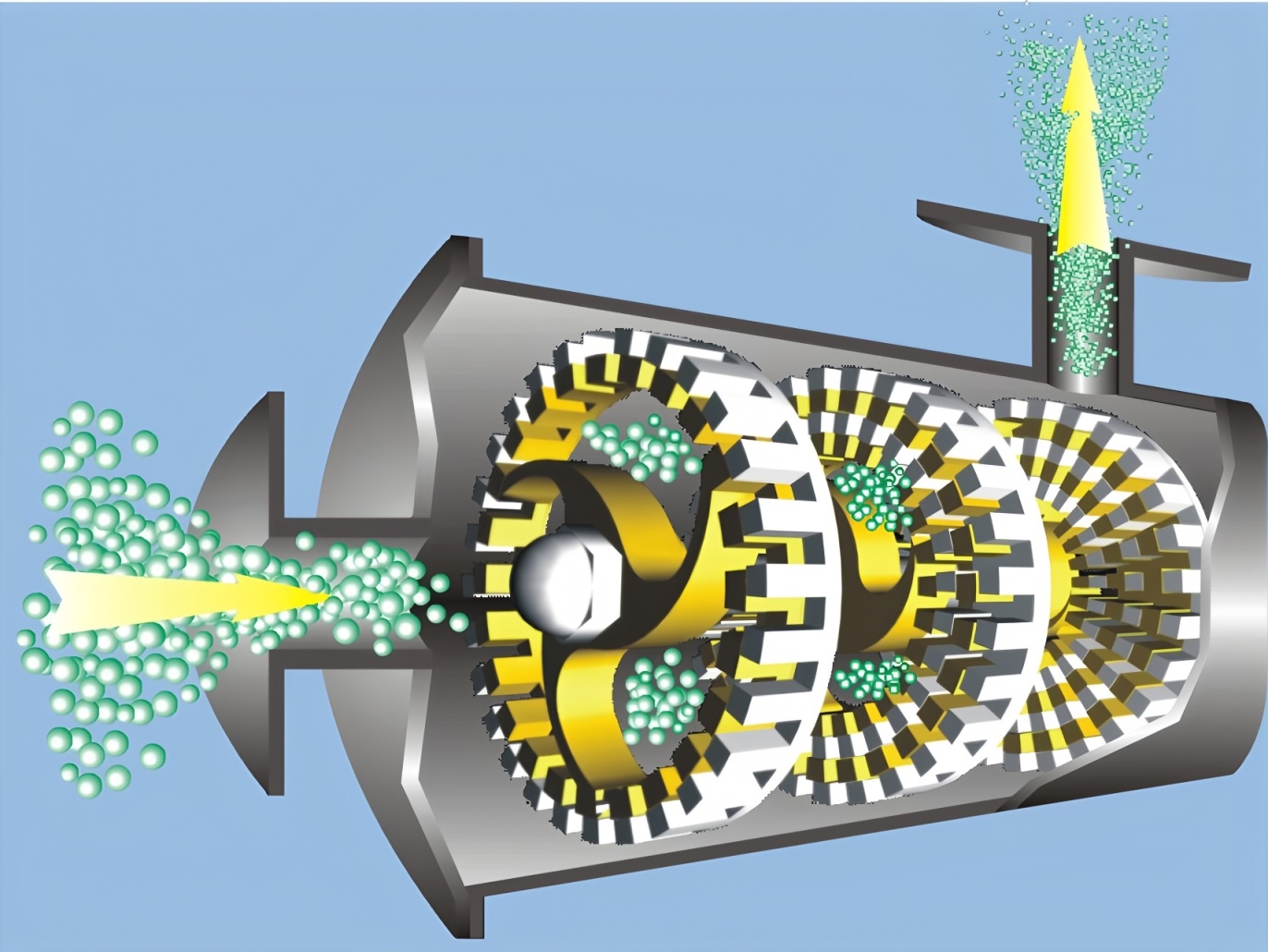

The central shaft driven by the motor rotating at a high speed vacuumizes the gap of the rotor and stator, which sucking the materials into the stator and rotor chamber. Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction between the precision-engineered gap of the stator and rotor.
After processing, the materials are flying out and generates strong turbulence under the action of forces from different direction.
| Model | Power(kw) | Speed(rpm) | Flow rate(m3/h) | Inlet nozzle(mm) | Outlet nozzle(mm) |
| KRB 2.2/3 | 2.2 | 3000 | 2 | DN32 | DN25 |
| KRB 4/3 | 4 | 3000 | 5 | DN40 | DN32 |
| KRB 7.5/3 | 7.5 | 3000 | 7 | DN40 | DN40 |
| KRB 11/3 | 11 | 3000 | 10 | DN50 | DN50 |
| KRB 15/3 | 15 | 3000 | 12 | DN65 | DN50 |
| KRB 18.5/3 | 18.5 | 3000 | 16 | DN65 | DN65 |
| KRB 22/3 | 22 | 1450 | 18 | DN80 | DN80 |
| KRB 30/3 | 30 | 1450 | 25 | DN80 | DN80 |
| KRB 37/3 | 37 | 1450 | 30 | DN100 | DN80 |
| KRB 45/3 | 45 | 1450 | 36 | DN100 | DN100 |
| KRB 55/3 | 55 | 1450 | 45 | DN125 | DN125 |
| KRB 75/3 | 75 | 1450 | 60 | DN150 | DN150 |
| KRB 90/3 | 90 | 1450 | 70 | DN150 | DN150 |
| KRB 110/3 | 110 | 1450 | 90 | DN200 | DN200 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
This machine is suitable to do the materials of viscosity up to 100,000 cps.
Production capacity scope: 0~10,000L.
Applied materials: Suitable for industrial coatings, general printing inks, paint, and general pigment dispersions, cosmetic, adhesive, ointment, cream, shampoo, calcium carbonate powder, liquids agrochemicals etc.
