Category： Inline Homogenizer Pump
Model：KRB Series
Feature： In-line high shear emulsifying mixer, with 2, 4 or 6-layers rotors & stators structure, rotation speed can be variable rpm

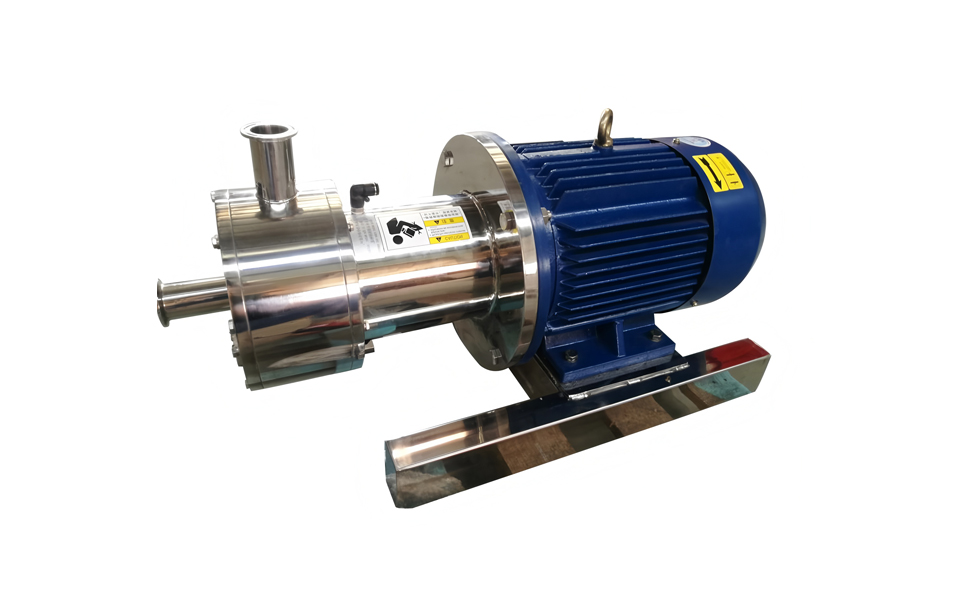

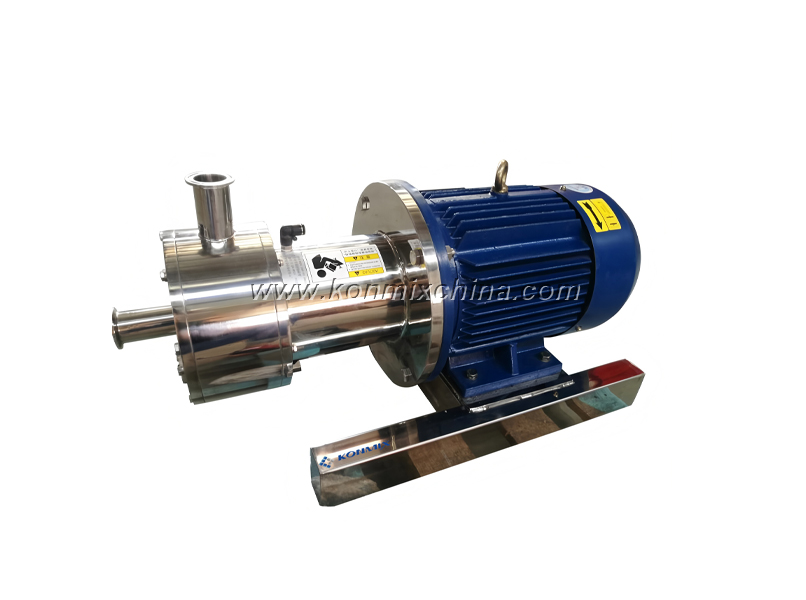

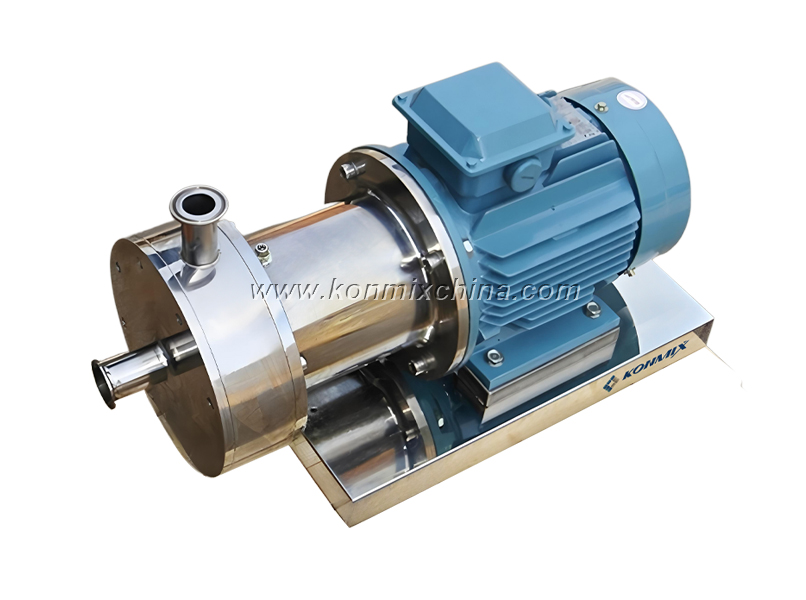

This Inline homogenizer is also called “ Inline rotor-stator emulsifying pump ”.
It consists of one stage rotor/stator head inside the chamber.
The one stage rotor/stator can be with 2,4 or 6 layers for optional.
The strong centrifugal force which cause by high speed rotor will absorb all materials into chamber.
Then materials will be highly sheared/emulsified by multi-layers stator & rotor.
• Power: with different motor powers for optional.
• Voltage: 380V, 50HZ/3P( can be customized ).
• Speed control: can select various speed control.
• The contacting can be made in SS304 or 316L stainless steel.
• Work style: inline high shear homogenizing.
• Workhead can be 2, 4 or 6 layers rotors &stators.
• Work temperature -20 < 200℃.
• The chamber can be made with jacket for heating or cooling function.
• Stable finished products are produced after a few times circulation.

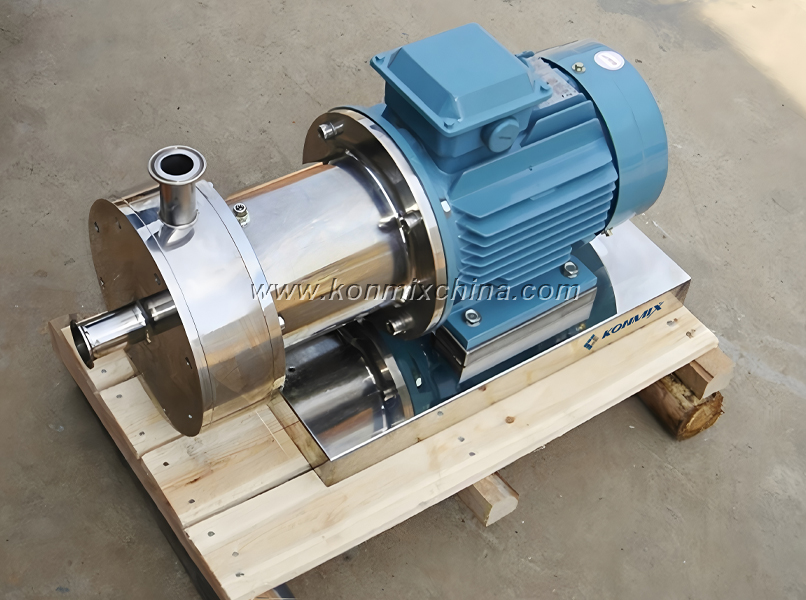

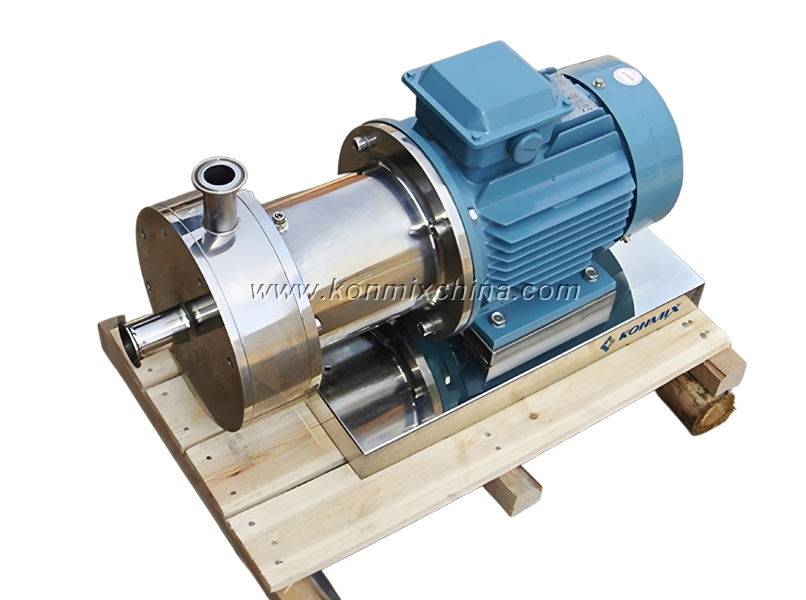

• Package: by export standard wooden box.
Inline High-shear Emulsifier (single-stage type) is circulation works, there are a few layers stator and rotor in the chamber. The stator and rotor is double coupling design with high matching precision. The central shaft driven by the motor rotating at a high speed vacuumizes the gap of the rotor and stator, which suck the materials into the stator and rotor chamber.
Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action
of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator
and rotor.
After processed, the materials are flying out and generates strong turbulence under the action of forces from different directions.
| Model | Power(kw) | Speed(rpm) | Flow rate(m3/h) | Inlet nozzle(mm) | Outlet nozzle(mm) |
| KRB 1.1/1/6 | 1.1 | 0~3000 | 1 | DN25 | DN25 |
| KRB 2.2/1/6 | 2.2 | 0~3000 | 2 | DN32 | DN25 |
| KRB 4/1/2 | 4 | 0~3000 | 6 | DN40 | DN32 |
| KRB 4/1/6 | 4 | 0~3000 | 5 | DN40 | DN32 |
| KRB 7.5/1/2 | 7.5 | 0~3000 | 8 | DN40 | DN40 |
| KRB 7.5/1/6 | 7.5 | 0~3000 | 7 | DN40 | DN40 |
| KRB 11/1/2 | 11 | 0~3000 | 10 | DN50 | DN50 |
| KRB 11/1/4 | 11 | 0~3000 | 10 | DN50 | DN50 |
| KRB 11/1/6 | 11 | 0~3000 | 10 | DN50 | DN50 |
| KRB 15/1/2 | 15 | 0~1450 | 12 | DN65 | DN50 |
| KRB 15/1/6 | 15 | 0~1450 | 12 | DN65 | DN50 |
| KRB 18.5/1/6 | 18.5 | 0~1450 | 16 | DN65 | DN65 |
| KRB 22/1/6 | 22 | 0~1450 | 20 | DN80 | DN80 |
| KRB 30/1/6 | 30 | 0~1450 | 28 | DN80 | DN80 |
| KRB 37/1/6 | 37 | 0~1450 | 35 | DN100 | DN80 |
| KRB 45/1/6 | 45 | 0~1450 | 38 | DN100 | DN100 |
| KRB 55/1/6 | 55 | 0~1450 | 42 | DN125 | DN125 |
| KRB 75/1/6 | 75 | 0~1450 | 70 | DN150 | DN150 |
| KRB 90/1/6 | 90 | 0~1450 | 90 | DN150 | DN150 |
| KRB 110/1/6 | 110 | 0~1450 | 120 | DN200 | DN200 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
Suitable to do the materials of viscosity up to 100,000 cps
Production Capacity: 0~10,000L
Applied materials: Suitable for industrial coatings, general printing inks, paint, and general pigment dispersions, cosmetic, cream, shampoo, calcium carbonate powder, liquids agrochemicals etc.
