Category： Batch Homogenizer/emulsifier
Model：KZE-5L, KZE-10L, KZE-20L
Feature： With vacuum work condition. Emulsifying pot 1L, 2L, 3L, 5L or 10L, the running speed is variable RPM.

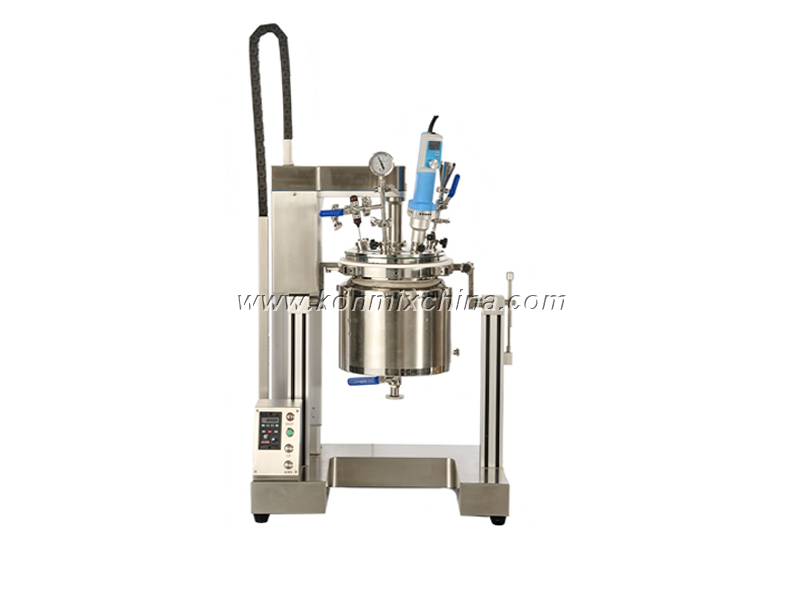

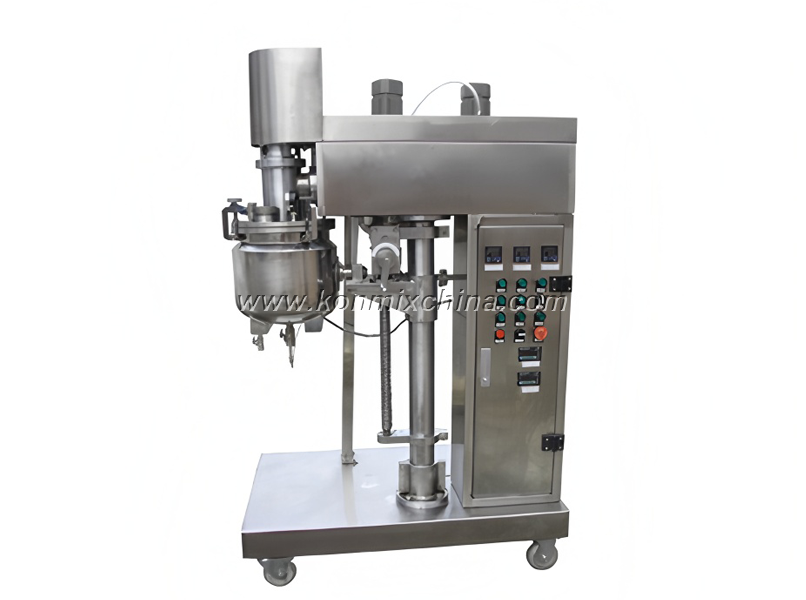

This Emulsifying Mixer has the glass & stainless-steel pot/vessel for selection.
It mainly consists of stainless-steel or glass pot, mixing stirrer, vacuum system, heating or cooling system & operation panel.
The heating/steam heating system has temperature control, electrical controling, -- etc.
The main pot/reactor's cover lifts up together with the homogenizer head.
This model can make top grade cosmetic, cream, pharmaceutical ointment, honey,--- like these viscous products.
• The mixing pot's lid/cover has lifting up & fall down function.
• Machine's contacting parts are made of SS304 or SS316L stainles-steel.
• Contacting parts' surface is treated to sanitary grade.
• The materials in water-phase pot & oil-phase pot can be feeded into emulsifying pot.
• With electrical heating up function.
• Each pot/reactor can be heated by electrical heaters with conductive medium.
• The temperature can be set and automatically controlled.
The precised stator and rotor matches with each other perfectly.
High-speed rotation motor drives the rotor to rotate at high speed, which generates vacuum condition between the stator and rotor. So materials are sucked into the chamber from the top of the stator &rotor and also from the bottom.
Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor.
After processed, the materials are flying out and generates strong turbulence under the action of forces from different direction.
Stable emulsion is obtained after repeated disaggregation, dispersion, homogenization, shearing for a certain period with help of mature production technology and certain quantity emulsifier.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Lifting stroke(mm) | Vacuum degree(Mpa) |
| KZE-1L | ≤1 | 0.37 | 0~3000 | 1500 | -0.095 |
| KZE-2L | ≤2 | 0.55 | 0~3000 | 200 | -0.095 |
| KZE-5L | ≤5 | 0.75 | 0~3000 | 300 | -0.095 |
| KZE-10L | ≤10 | 1.1 | 0~3000 | 400 | -0.095 |
| KZE-20L | ≤20 | 1.5 | 0~3000 | 500 | -0.095 |
Lab & Mid-batch trials' capacity: 1L, 2L, 3L, 5L, 10L & 20L for options.
Applied materials: suitable for emulsifying, homogenizing and dispersing materials in industries, such as biology, pharmacy, food, cosmetic, ink and pesticide, honey --- etc.
