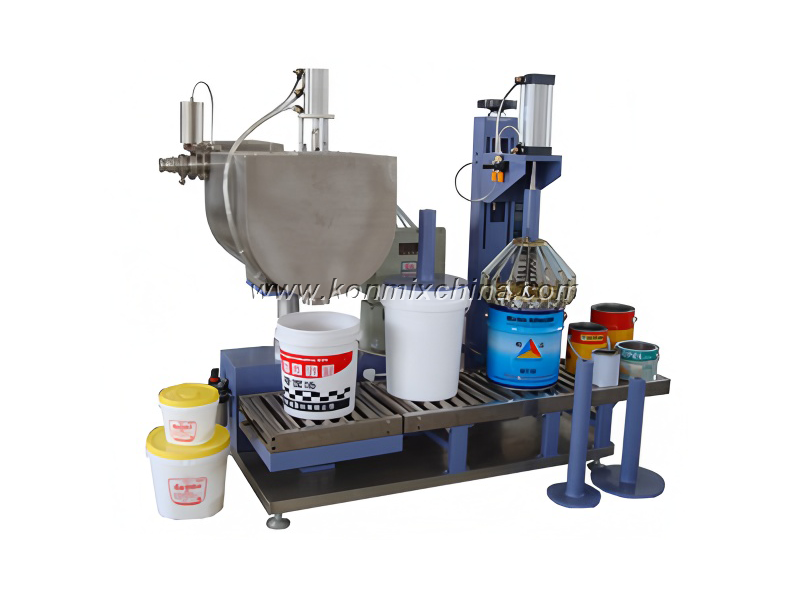

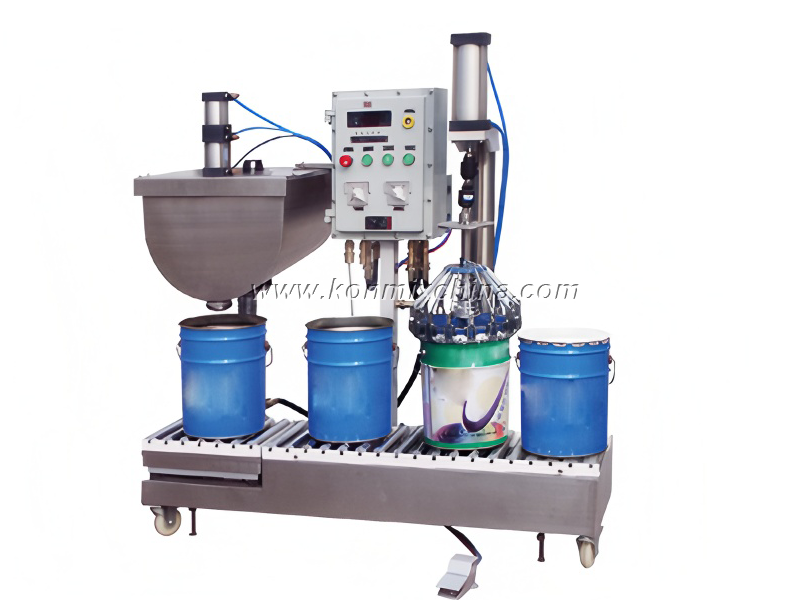

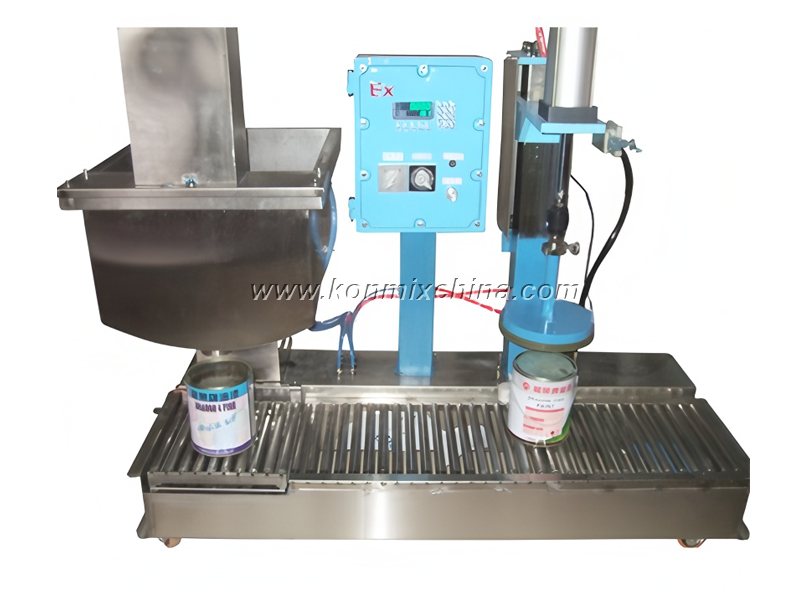

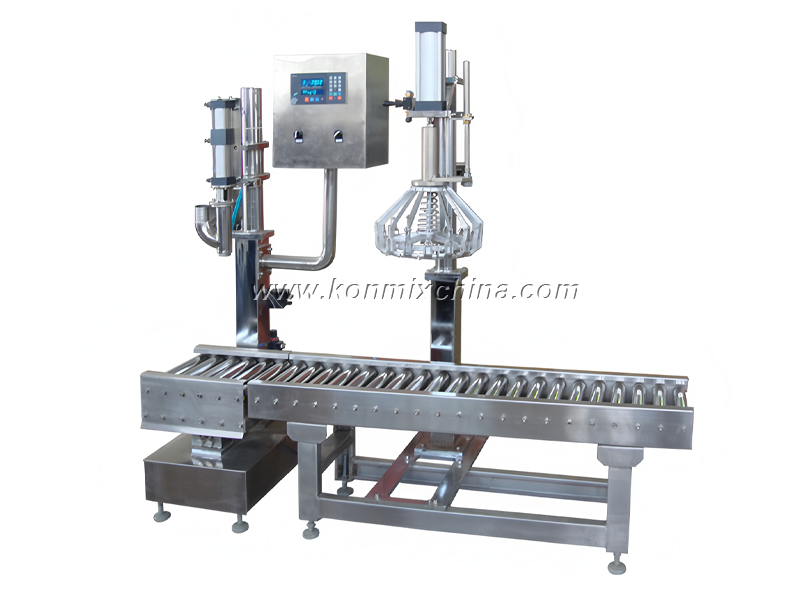

Category： Filling machine
Model：KMF-30L, KMF-50L
Feature： For liquid filling, with semi-automatic control for optional, contacting parts made of SS304 stainless-steel
This filling machine is mainly used for filling and sealing liquid materials.
It is specially applied to automatic/semi-automatic filling ways.
This model has the weight measuring system to scale the capacity.
• This model has high measuring precision and not be influenced by material.
• There are fast/slow feeding valve, which promote filling speed and precision greatly.
• With widely measuring range.
• Filling nozzle adopts anti-leak device,air-free in the filling material.
• Equip with pneumatic clamping and capping set.
• Semi-automatic controlling, very conveneint for operation.

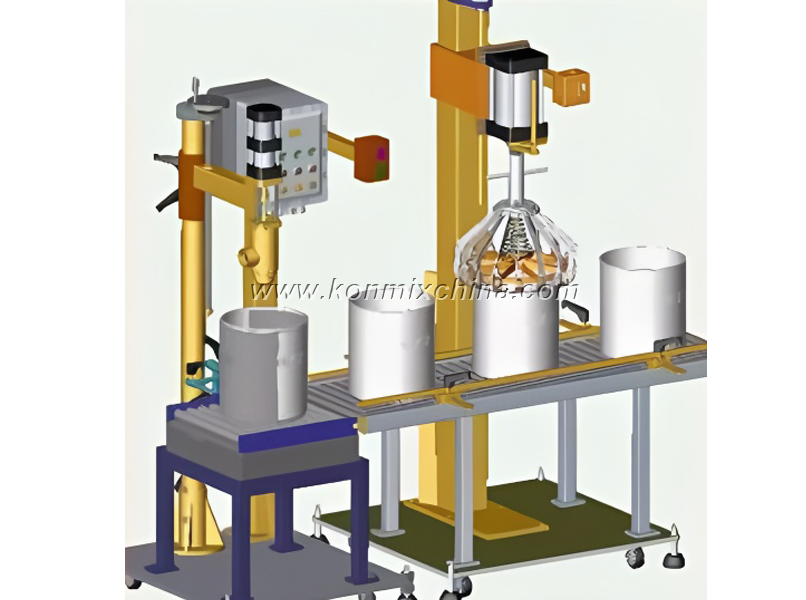

The controlling instrument receives weight signal from weighing sensor to control charging valve's opening (0-90 degrees), to achieve the purpose of automatic filling; with a roller conveyor and lid-pressing/clamping device, the machine complete the material filling and sealing process.
With the conveying roller for moving the can or drums.
| Model | Filling range(kg) | Filling speed(can/min.) | Power(V/Hz) | Air source(MPa) | Filling Accuracy | Capping ways | Roller height(mm) |
| KMF-30 | 1~30 | 3~6 | 220/50 | 0.4~0.8 | ±0.2% | Clamp/Plate | 600 |
| KMF-50 | 5~50 | 3~6 | 220/50 | 0.4~0.8 | ±0.2% | Clamp/Plate | 600 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com .
Material viscosity: <=20,000 cps
Applied materials: all kind of liquid chemical products, such as coatings, paint, inks, flavors & fragrances, adhesives, dyes, petroleum, lubricants, pharmaceuticals, food, paper-making, pesticide, metallurgy, etc.
Materials shall be with viscosity less than 20,000cps, suitable for filling liquid or slurry with a certain liquidity such as edible oil, emulsion paint, color paste, industrial paint, curing agent, organic solvent, water-based ink, suspension concentrate, adhesive, detergent, etc.
