Category： Filling machine
Model：KLF Series
Feature： It adopts entire closure or semi-closuew type to fill cream, ointment & plasters, contacting parts made of stainless-steel

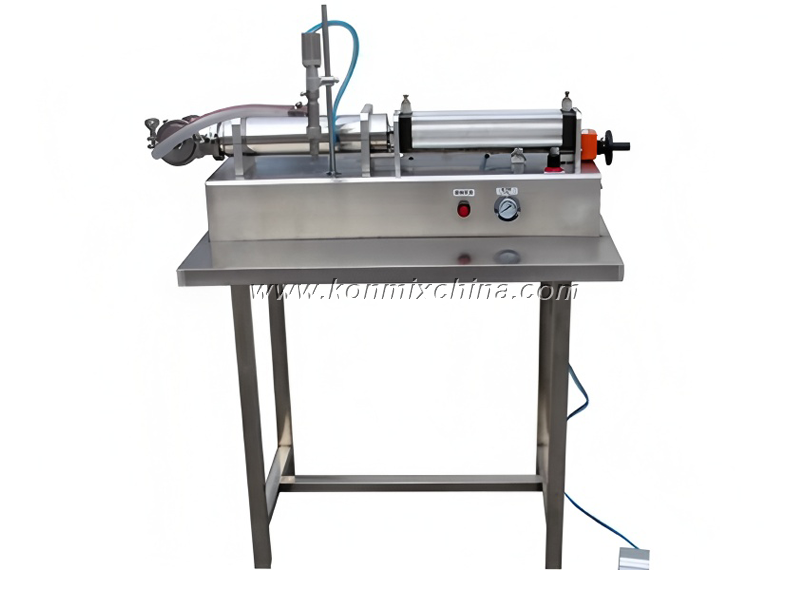

This Ointment Filling Machine adopts volumetric method to measure, through the way of adjusting the plunger volume to realize the control of filling quantity.
It can equip with a pump in the front end of the feeding port, or pressuring the material tanks to send material from tank to the filling machine. The filter device can be added before filling to guarantee the quality of products.
The reciprocating movement of the piston achieves filling rapidly. The equipment has advantages of high filling efficiency and easy maintenance.
• With widely measuring range.
• Filling nozzle adopts anti-leak device.
• Semi-automatic controlling, very conveneint for operation.
• It adopts entire closed or semi-closed type to fill cream, honey, colloid, liquid.
• High reiteration of filling weight and volume ensures the filling precision.
• It is suitable for small batch packing in medicine, household and personal care chemical, foodstuff, chemicals.

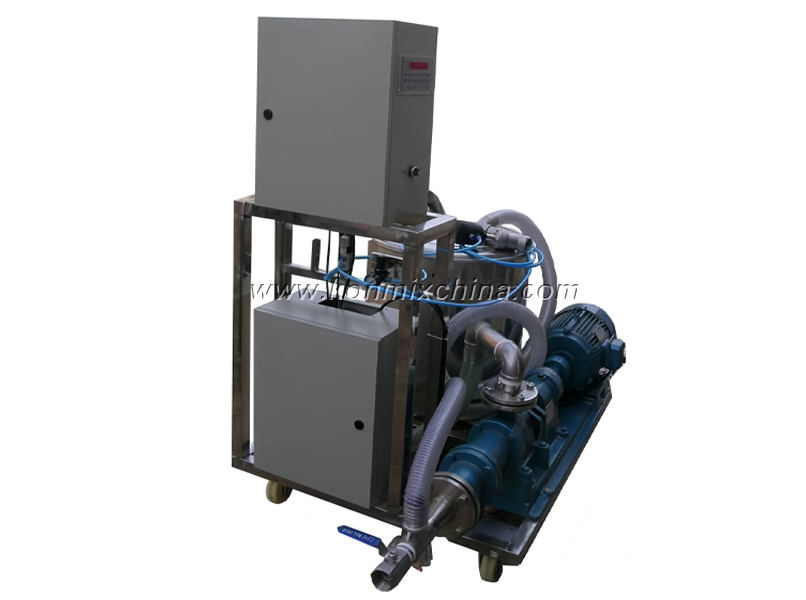

This filling machine adopts the type of filling above the liquid or cream.
The design of unique spray gun is easy to operate. The filling is fast and accurate. It minimizes the leakage of the residual liquid at the end of perfusion.
When filling, the operator simply moves the container to filling port of the container to the nozzle and then press the "start " button. The spraying gun goes down automatically and empty barrel automatically removes tare.
It accurately filling at double speed to ensure the filling accuracy. At the end of the filling, the spray gun automatically raises. The barrel is removed and the filling cycle ends.
| Model | Filling range(ml) | Filling speed(can/min.) | Power(V/Hz) | Air source(MPa) | Filling Accuracy(ml) | Capping ways | Size(mm) |
| KLF-100 | 20~100 | 10~15 | 220/50 | 0.4~0.8 | ±2 | Clamp/Plate | 1400*600*1200 |
| KLF-250 | 50~250 | 10~15 | 220/50 | 0.4~0.8 | ±2 | Clamp/Plate | 1450*700*1250 |
| KLF-500 | 100~500 | 10~15 | 220/50 | 0.4~0.8 | ±2 | Clamp/Plate | 1550*800*1350 |
| KLF-1000 | 300~1000 | 10~15 | 220/50 | 0.4~0.8 | ±2 | Clamp/Plate | 1700*850*1500 |

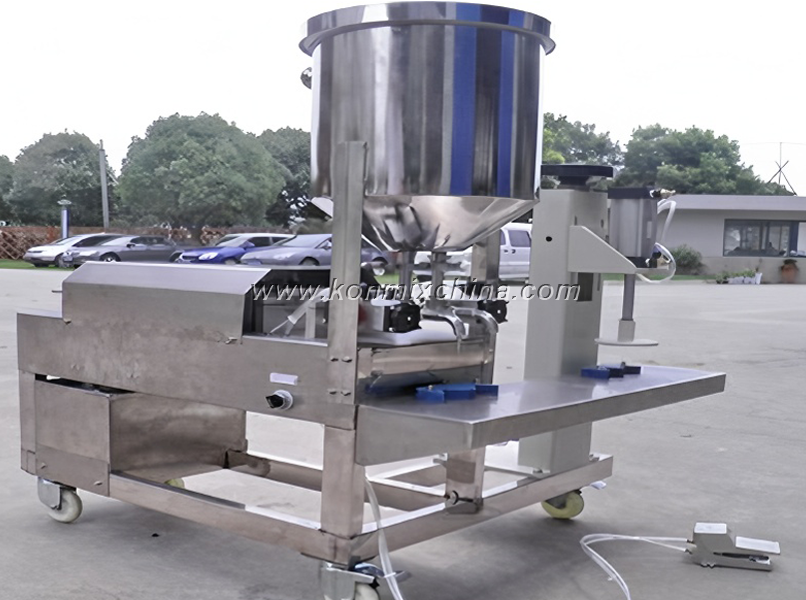

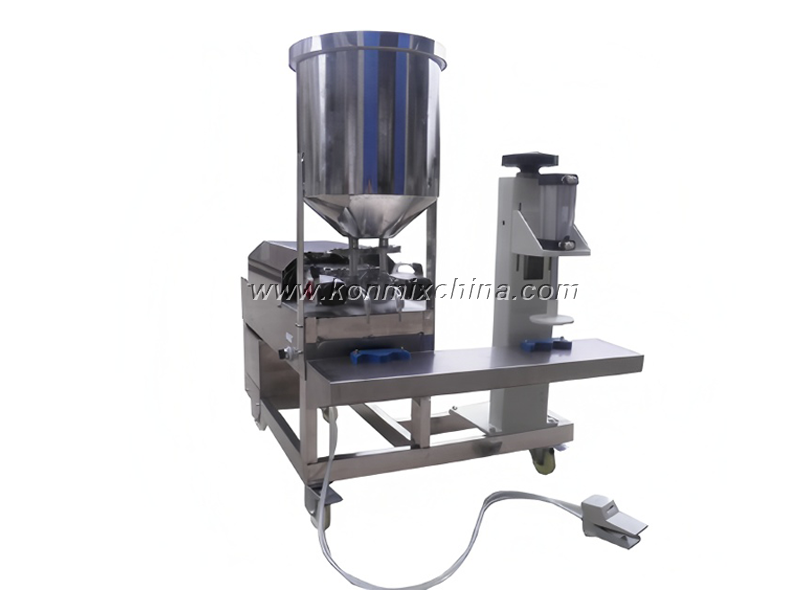

Applied materials: It is suitable for the filling of high viscosity creams materials.
This model is mainly used in quantitative filling of all kinds of cartridge containers.
It adopts entirely closed or semi-closed type to fill cream, colloid, liquid, such as: daily chemical, beverage in foodstuff, pigment in chemical industry.
