Category： Filling machine
Model：KLF Series
Feature： This model is professional for filling high viscous products, such as the cream, honey, ointment, cosmetic and so on

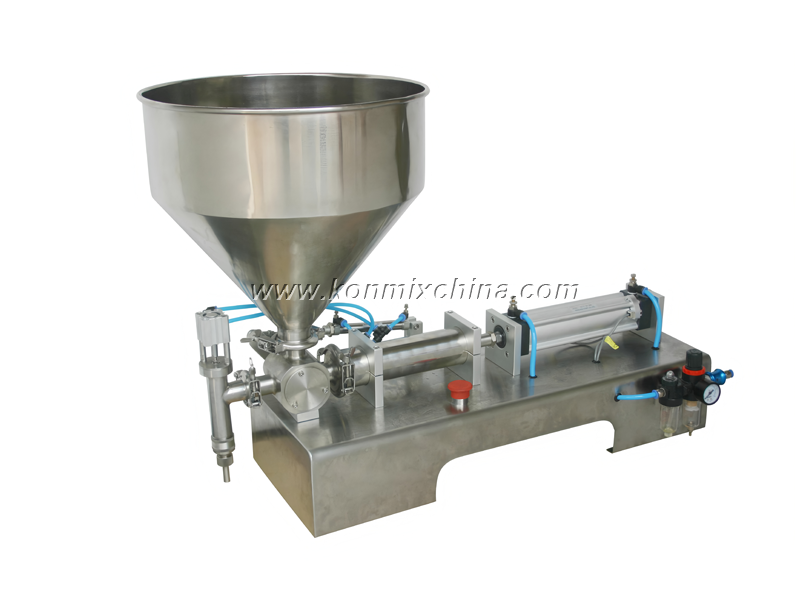

Volumetric Type Filling Machine adopts volumetric method to measure, through the way adjusting the plunger volume to realize the control of filling quantity.
It can equip with a pump in the front end of the feeding port, or pressuring the material tanks to send material from tank to the filling machine. The filter device can be added before filling to guarantee the quality of products.
The reciprocating movement of the piston achieves filling rapidly. The equipment has advantages of high filling efficiency and easy maintenance.
• With widely measuring range.
• Filling nozzle adopts anti-leak device,air-free in the filling material.
• Semi-automatic controlling, very conveneint for operation.
• It adopts entire closed or semi-closed type to fill cream, honey, colloid, liquid.
• High reiteration of filling weight and volume ensures the filling precision.
• It is suitable for multi-variety small batch packing in medicine, household and personal care chemical, foodstuff, chemical
industry, etc.

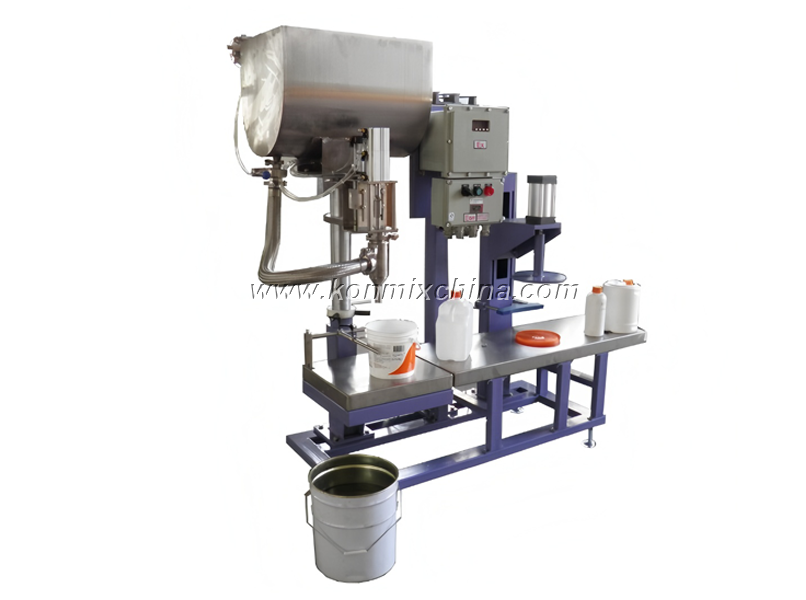

The controlling instrument receives weight signal from weighing sensor to control charging valve's opening (0-90 degrees), to achieve the purpose of automatic filling; with a roller conveyor and lid-pressing/clamping device, the machine complete the material filling and sealing process.
With the conveying roller for moving the can or drums.
| Model | Filling range(ml) | Filling speed(can/min.) | Power(V/Hz) | Air source(MPa) | Filling Accuracy(ml) | Capping ways | Size(mm) |
| KLF-100 | 20~100 | 10~15 | 220/50 | 0.4~0.8 | ±2 | Clamp/Plate | 1400*600*1200 |
| KLF-250 | 50~250 | 10~15 | 220/50 | 0.4~0.8 | ±2 | Clamp/Plate | 1450*700*1250 |
| KLF-500 | 100~500 | 10~15 | 220/50 | 0.4~0.8 | ±2 | Clamp/Plate | 1550*800*1350 |
| KLF-1000 | 300~1000 | 10~15 | 220/50 | 0.4~0.8 | ±2 | Clamp/Plate | 1700*850*1500 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com .
Applied materials: It is suitable for the filling of high, medium and low viscosity liquid.
This model is mainly used in quantitative filling of all kinds of cartridge containers.
It adopts entirely closed or semi-closed type to fill cream, colloid, liquid, such as: daily chemical, beverage in foodstuff, pigment in chemical industry.
