Category： Filling machine
Model：KMF-B
Feature： For filling big drums, such as 200Lit or 300Lit, and with the explosion-proof type for optional

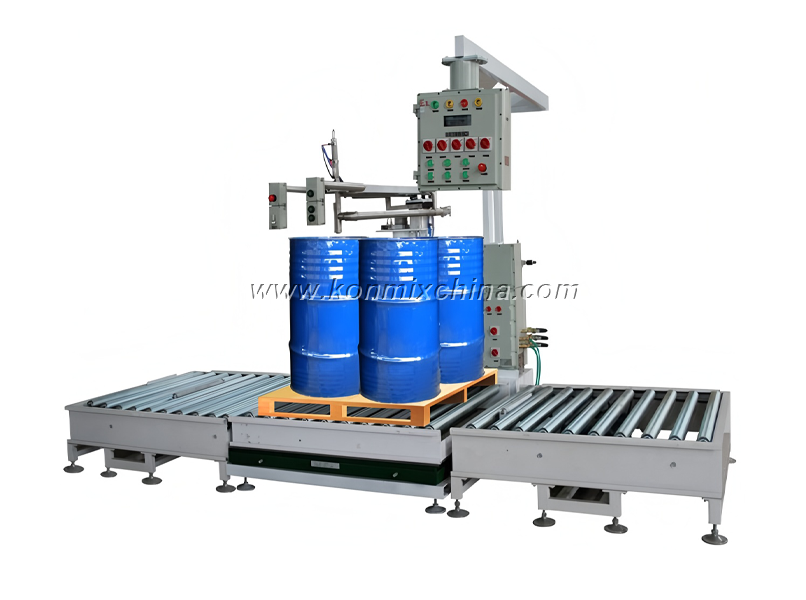

Four-drum Automatic Filling Machine is mainly composed of filling gun device, PLC system control part, weighing system, conveying equipment, etc.
It is a highly automated packaging equipment. Its main function is to automatically fill liquid materials into a predetermined weight.
During the filling process, it can effectively avoid material spillage, prevent environmental pollution, and protect operators.
• Fill high viscosity liquid and can choose to equip conveying line and capping machine.
• Applied condition: Normal or explosion proof (optional).
• Application: Oily incendive agent, paint, oil paint, lubricant, edible oil,other explosive chemicals.
• Composition: Computer-aid quantitive filling, weighting system, frame, pneumatic controlling system.
• Feeding method: Continuous and stable feeding (feeding pump or hopper).
The controlling instrument receives weight signal from weighing sensor to control charging valve's opening (0-90 degrees), to achieve the purpose of automatic filling; with a roller conveyor and lid-pressing/clamping device, the machine complete the material filling and sealing process. With the conveying roller for moving the can or drum.
When workers lift the tray (contain empty barrels) to the weighing table. Artificial move filling mouth to the bung hole, positioning, and send out start filling signal. The controller is monitoring automatically and feedback control signals.
According to the control signal, use the electromagnetic valve to control, filling valve achieve the big, small, and cut off control of the flow. Filling nozzle's lifting control can be designed according to the materials' characteristic.
| Model | Filling range(kg) | Filling speed(drums/hr) | Power(V/Hz) | Air source(MPa) | Division Value(g) | Contacting parts | Filling Accuracy （g） |
| KMF-B-300 | 300 | 48~64 (4 heads) | 220/50 | 0.5~0.8 | 100 | stainless-steel | 100 |
| KMF-B-1000 | 1000 | 48~64 (4 heads) | 220/50 | 0.5~0.8 | 100 | stainless-steel | 100 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com .
Material viscosity: <=10,000 cps
Applied materials: the viscosity of the material is below 10,000cps, and the liquid material and slurry with certain fluidity; Such as edible oil, latex paint, color paste, industrial paint, curing agent, organic solvent, water-based ink, pesticide suspension agent, adhesive, detergent and other more than a thousand kinds of materials.
