Category： Powder packing machine
Model：KPF
Feature： Professional for powder packaging, with various filling scope, competent for opened type bag or pocket
This model has a feeding hopper on top as the buffer tank.
It is with high weighing velocity and precision, it includes weight scale system to control the dosing/filling.
Bag clamping system composes of touching-sensor & bracket.
Pneumatic control system for material feeding, packing and bag clamping.
With belt transmission system.
• Packing scope: 0 ~ 30KG.
• Automaticlly clamp the bag, the powder stored in hopper will load into the bag.
• The weighing apparatus will start to monitor the increasing volume.
• The fast filling valve will shut off when it gets to level "1 " while the slow filling is activated.
• After arriving at level " 2 ", filling process is completed and the bag is released.
• With semi-automatic sealing machine.
• Sealing speed 5m/min.
• With height adjustable function, it helps bag match the sealing machine.
• With foot switch to control the sealing process.

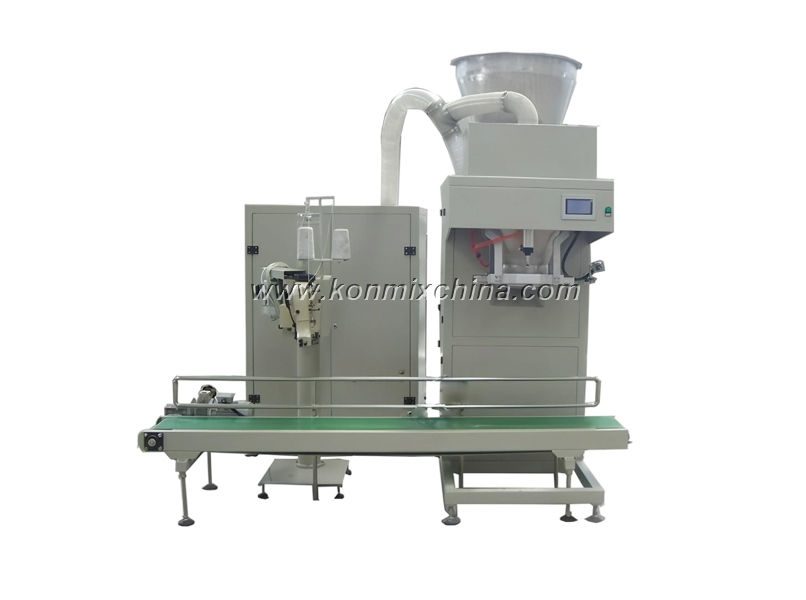

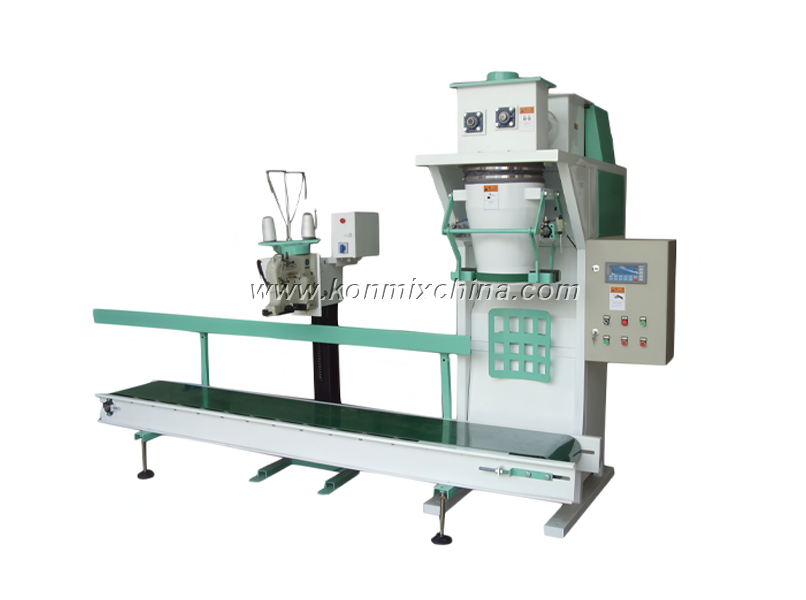

This powder packing machine consists of feeding system, bags-clamping and weighing system, control system, pneumatic control system.
The feeding system is with double speed: fast feeding ensures production capacity, and slow feeding under the control of Inverter to ensure feeding accuracy.
The bags-folding weighing system consists of loading frame, sensor, folder arm. The frame supports the whole system and ensures stability. The control system controls feeding valve and folding bags.
Its operation procedure is as following: manually put bags on, and clamp bags in place, the storage hopper with enough materials opens valve automatically and charge bags with materials, at the same time, it weighs. When it comes to the set working point, it closes the big control valve(screw), and goes to slow feeding. When it comes to the second working point, it closes the slow speed valve(screw), then it stops feeding, displays weight and release bags automatically.
| Model | Packing range(kgl) | Packing speed(bag/hr.) | Power(V/Hz) | Air source(MPa) | Accuracy(g) | Weight(kg) | Size(mm) |
| KPF-30 | 5~30 | 100~200 | 220/50 | 0.4~0.6 | 10 | 800 | 1400*950*2100 |
Applied materials: for powders packing or filling powder with certain fluidity.
Application Industry: It is widely used in packaging the fine powders, and often use in the industrials of pharmaceutical, food, animal feed, pesticide, dye, chemical, plastic, ceramic,shampoo, coating, putty, sand, mortar and other industries.
