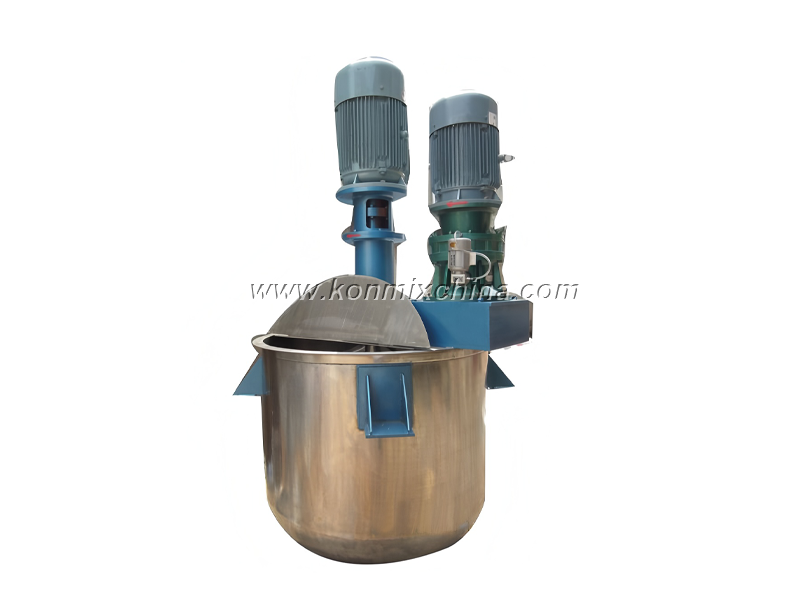

Category： Customized liquid mixer
Model：KJB-M
Feature： Mixing, emulsifying or blending agitators can install on top of vessel, and with different volume vessels for option
Mixing vessel is also called - blending/stirring reactor/vessel.
This equipment can select the vacuum work condition.
Vessel body is made of stainless-steel, inner and outer mirror-polished.

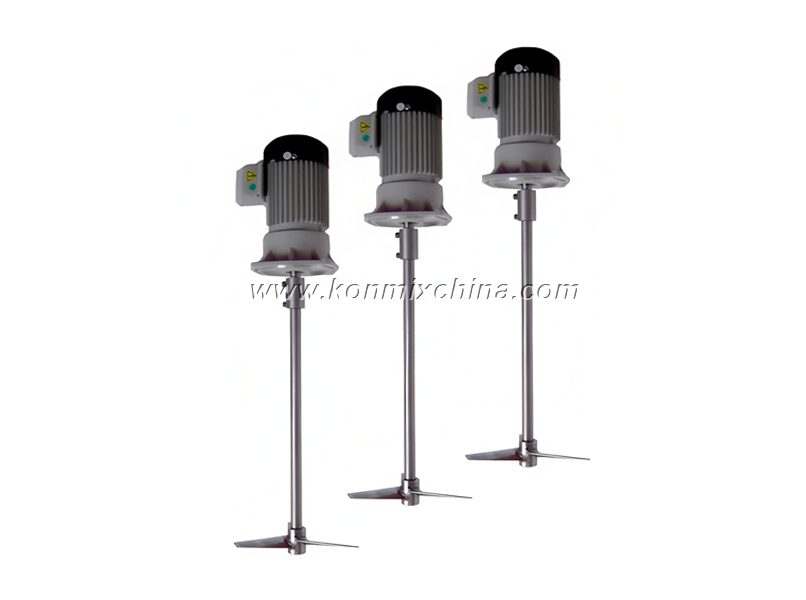

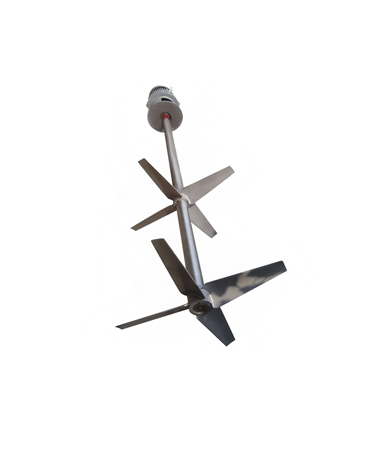

Top agitators include: anchor style, paddle style or propeller blade type.
Customer can select heating or cooling function for reactor.
• With different capacity volumes for optional.
• Mixer' motor power: 0.75kW - 110kW.
• Power supply: 380V, 50Hz, 3P or customized.
• With vacuum system, vacuum degree -0.095Mpa.
• Contacting parts' material: SUS304 stainless-steel.
• Installation type: lugs support or supporting legs.
• Reactor's top with dished cover.
• Fittings include: feeding/discharging hole, manual hole, --- etc
• We provide non-standard design of this equipment.

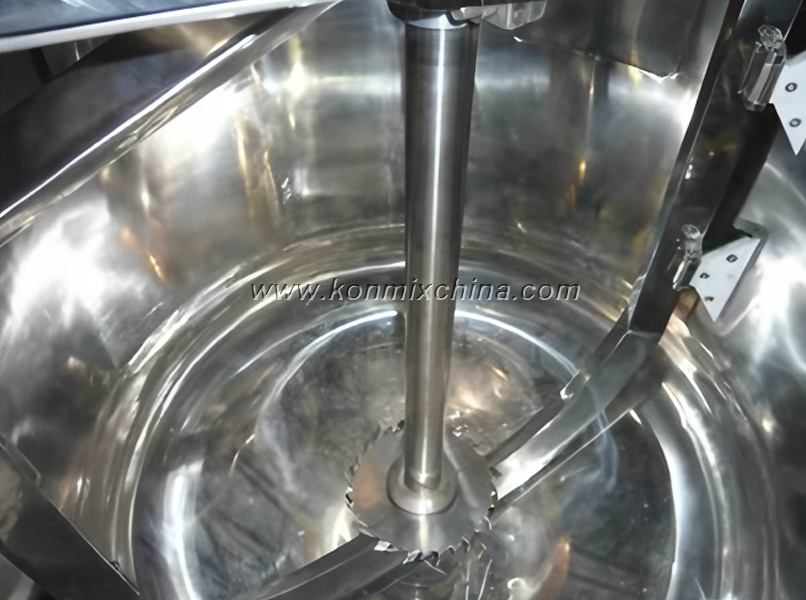

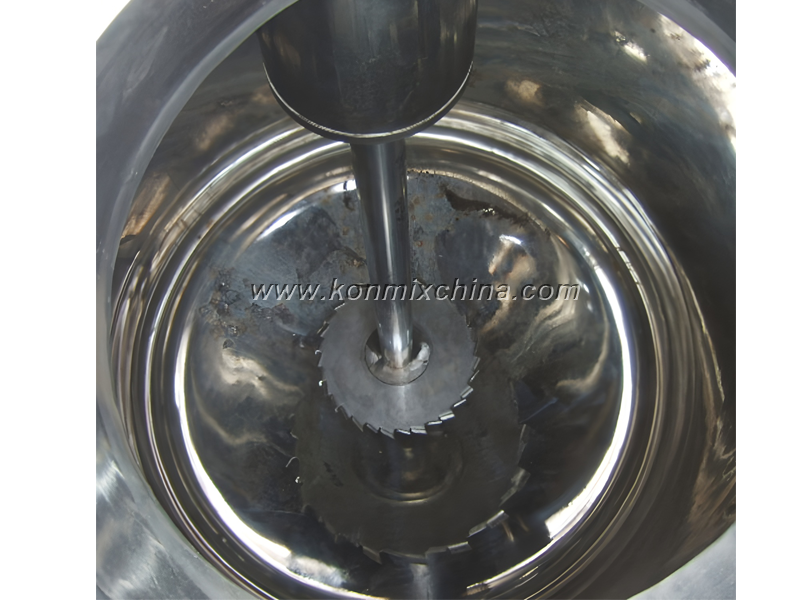

The mixing blade (agitator) is driven by the power unit and rotated in a fixed direction.
During the rotation, the materials are driven to do axial rotation and radial rotation to achieve rapid dissolution and mixing of materials.
| Model | Capacity(L) | Agitator power(kw) | Speed(rpm) | Mixing blade(mm) | Disperser power(kw) | Disperser speed(rpm) |
| KJB-M-100 | 100 | 2.2 | 46 | 250 | 4 | 0~1450 |
| KJB-M-200 | 200 | 4 | 46 | 350 | 5.5 | 0~1450 |
| KJB-M-300 | 300 | 5.5 | 46 | 350 | 7.5 | 0~1450 |
| KJB-M-500 | 500 | 7.5 | 46 | 380 | 11 | 0~1450 |
| KJB-M-1000 | 1000 | 11 | 43 | 400 | 15 | 0~1450 |
| KJB-M-2000 | 2000 | 15 | 43 | 450 | 22 | 0~1450 |
| KJB-M-3000 | 3000 | 22 | 43 | 500 | 37 | 0~1450 |
| KJB-M-5000 | 5000 | 30 | 43 | 600 | 55 | 0~1450 |
| KJB-M-6000 | 6000 | 37 | 35 | 650 | 75 | 0~1450 |
| KJB-M-8000 | 8000 | 45 | 35 | 700 | 90 | 0~960 |
| KJB-M-10000 | 10000 | 55 | 35 | 800 | 110 | 0~960 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com .
This model is suitable to do the materials of viscosity below 100,000 cps.
Production Capacity: 0~12,000L.
Applied materials: suitable for liquid or liquid-phase's high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
