Category： Customized mixer
Model：KFS-S Series
Feature： With scraper structure, the tank’s inner wall under scrapping in mixing process, all materials fully mixed

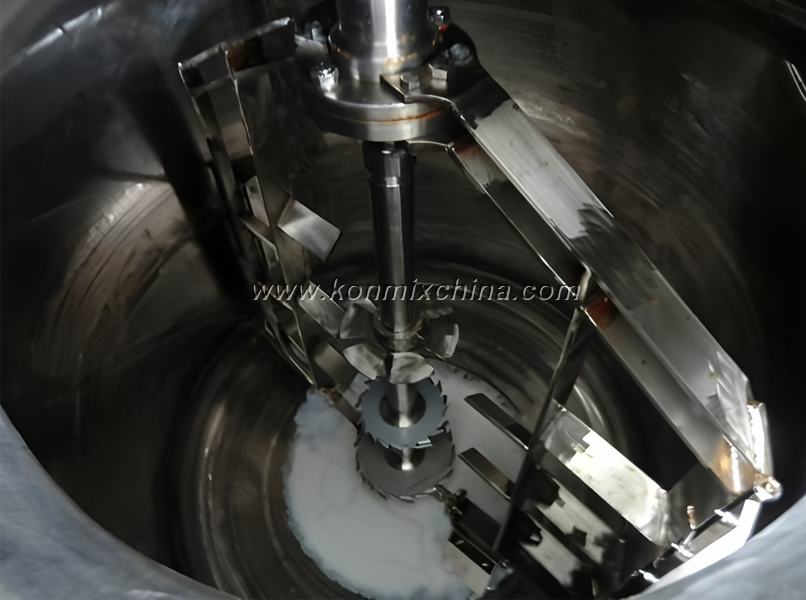

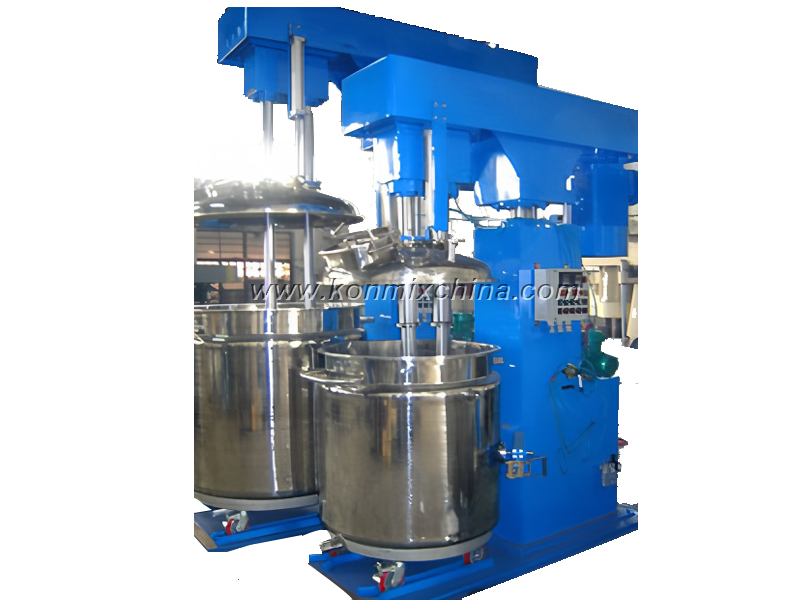

KFS-S Series Coaxial Mixer has scraper mxing blade.
The products on mixing tank's wall/bottom can be scraped to the central section, which will make all materials under mixing process.
This machine realizes fully distributed mixing work.
• The scraper is made of PTFE materials.
• The contacting parts are made of stainless-steel, and surface are polished treatment.
• This disperser is to dissolve, disperse and mix materials with different viscosity.
• By very high peripheral tip speed of the toothed blade, the strong mixing force is generated.
• This model is designed for special middle or high viscosity products.

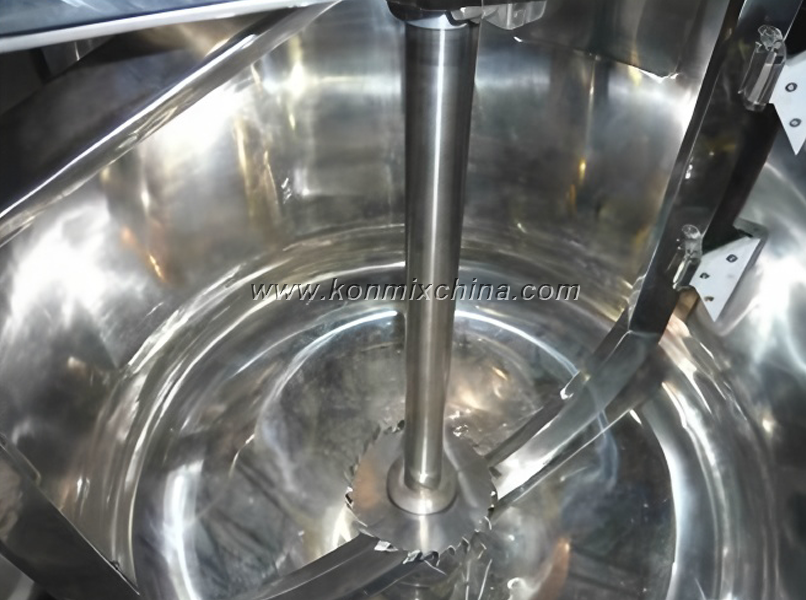

The dispersing disc rotates on high spee,d so that the materials flow in a circulation, resulting in a strong vortex, which is spiraling downward to the bottom of the vortex.
The particles have a strong shear impact and friction to achieve rapid dispersion and dissolution.
The PTFE scraper is fitted to the wall of the barrel to be rotated and swab to the wall of the barrel, which accelerates the material circulation and improves the efficiency of scattered.
| Model | Capacity(L) | Disperser power(kw) | Speed(rpm) | Mixer power(mm) | Mixer speed(rpm) | Hydraulic Power(kw) |
| KFS-S-100 | ≤100 | 7.5 | 0~1440 | 4 | 43 | 0.75 |
| KFS-S-200 | ≤200 | 11 | 0~1440 | 5.5 | 43 | 0.75 |
| KFS-S-300 | ≤300 | 15 | 0~1440 | 7.5 | 43 | 1.1 |
| KFS-S-400 | ≤400 | 18.5 | 0~1440 | 11 | 43 | 1.1 |
| KFS-S-500 | ≤500 | 22 | 0~1440 | 11 | 43 | 1.1 |
| KFS-S-600 | ≤600 | 22 | 0~1440 | 15 | 43 | 1.5 |
| KFS-S-800 | ≤800 | 30 | 0~1440 | 15 | 43 | 1.5 |
| KFS-S-1000 | ≤1000 | 37 | 0~1440 | 18.5 | 36 | 1.5 |
| KFS-S-1200 | ≤1200 | 37 | 0~1440 | 22 | 36 | 2.2 |
| KFS-S-1300 | ≤1300 | 45 | 0~1440 | 22 | 36 | 2.2 |
| KFS-S-1500 | ≤1500 | 45 | 0~1440 | 30 | 36 | 2.2 |
| KFS-S-1600 | ≤1600 | 55 | 0~1440 | 30 | 32 | 3 |
| KFS-S-2000 | ≤2000 | 75 | 0~1440 | 37 | 32 | 4 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity,gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc.Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com .
Material viscosity: up to 2,000 Pa.s
Production Capacity: 0L ~ 2,000L (with the lifting stand), if the stationary vessel type, then capacity up to 12000Liters.
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
