Category： Multi-shaft mixer
Model：KJB-D
Feature： With butterfly stirring workhead, apply for middle & high viscous materials mixing, rotation speed can select variable rpm

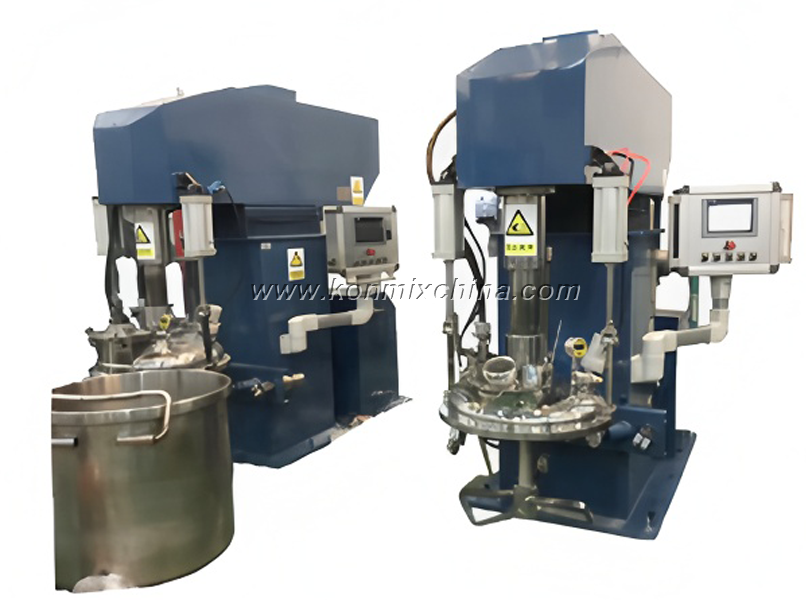

This mixer is also called " butterfly stirrer ", its mixing blade is butterfly type.
This mixer is suitable for mixing low or high viscous products, like the solid-liquid materials or slurry mixture.
User also can select some other style mixing workhead.
We can design different agitators according to different materials.
The agitators can be exchanged easily.
With various speed control, digital speed display, low operation noise and long working life.
• It can match to work with reactor, vessel, tank or pot.
• The mixing process is separated from material feeding, discharging & clean, so improve work efficiency.
• It can meet various requirements of middle & high viscosity mixing.
• With inverter speed controlling function for option.
• Hydraulic lifting system, stable operation.
• We can customize various non-standard function, such as explosion-proof type, sealed vacuum type, etc.
The butterfly blade is driven by the power unit. During the rotation, the material is driven to do axial rotation and radial rotation.
The material in the mixer has axial movement and circular motion. Therefore, there are several stirring forms such as shear stirring and diffusion stirring, which is able to stir and mix materials quickly and effectively.
The stirring agitator produces a good radial force through circumferential motion to accelerate material circulation and improve mixture efficiency.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Mixing blade(mm) | Lift Stroke(mm) | Hydraulic Power(kw) |
| KJB-D-100 | 100 | 2.2 | 0~65 | 250 | 700 | 0.75 |
| KJB-D-200 | 200 | 4 | 0~65 | 350 | 800 | 0.75 |
| KJB-D-300 | 300 | 5.5 | 0~65 | 350 | 900 | 0.75 |
| KJB-D-500 | 500 | 7.5 | 0~65 | 380 | 900 | 1.1 |
| KJB-D-1000 | 1000 | 11 | 0~43 | 400 | 1000 | 1.1 |
| KJB-D-2000 | 2000 | 15 | 0~43 | 450 | 1100 | 1.5 |
| KJB-D-3000 | 3000 | 22 | 0~43 | 500 | 1300 | 1.5 |
| KJB-D-5000 | 5000 | 30 | 0~43 | 600 | 1500 | 2.2 |
| KJB-D-6000 | 6000 | 37 | 0~43 | 650 | 1800 | 3 |
| KJB-D-8000 | 8000 | 45 | 0~35 | 700 | 2000 | 3 |
| KJB-D-10000 | 10000 | 55 | 0~35 | 800 | 2300 | 4 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com .
This model is suitable to do the materials of viscosity below 100,000 cps.
Production Capacity: 0~10,000L.
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
