Category： Batch Homogenizer/emulsifier
Model：KRHQ
Feature： High shear rotor-stator head, with lifting up & falling down function, suitable for middle-batch process, lifting stand with movable wheels
This model is also called " high-shear emulsifying mixer ", with the function of lifting frame/stand.

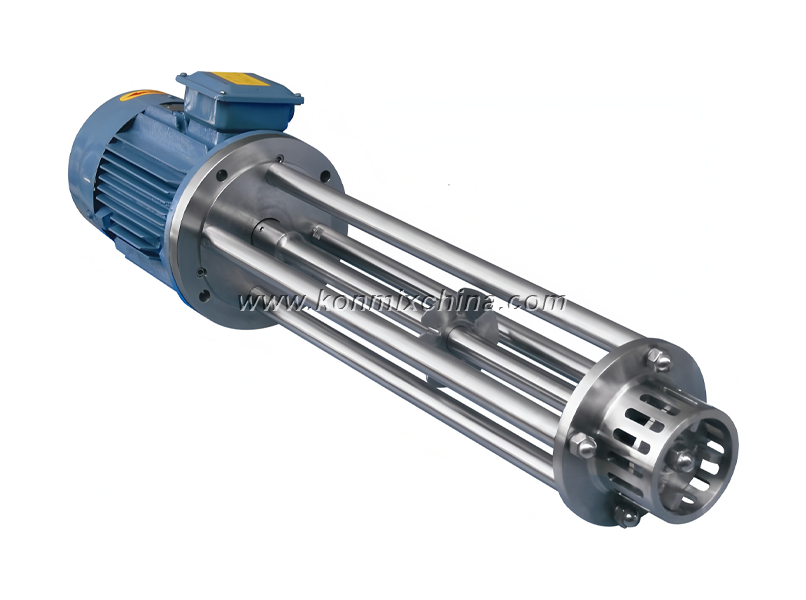

The workhead is high-shear rotor & stator structure.
High shearing workheads will generate high frequency mechanical action on the products.
Customer can select the pneumatic or electric lifting up type stand.
The rotation speed has variable RPM for option, and speed is digital displayed.
• Claw shaped workhead (Dual direction suction) is highly precised foundry.
• Good gap fitness and high tip speed ensure excellent emulsifying and homogenizing.
• All components are processed by CNC machine.
• With dynamic and static balance test for main shaft.
• Whole machine will ensure the stable&safe operation.
• This model can have the lifting up/lowering function.
• With below different style shear head for optional.

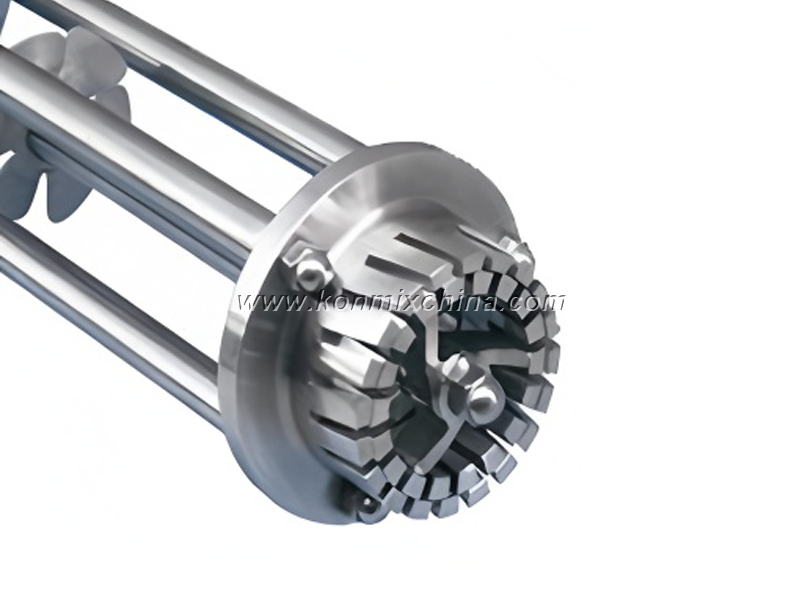

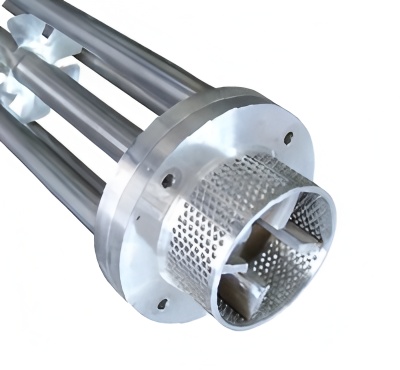

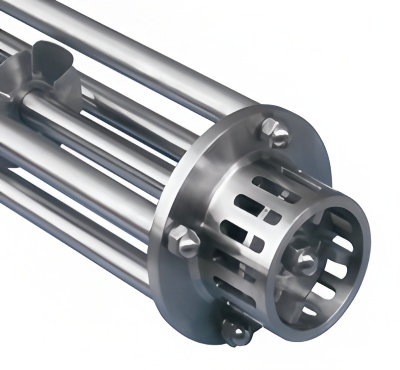

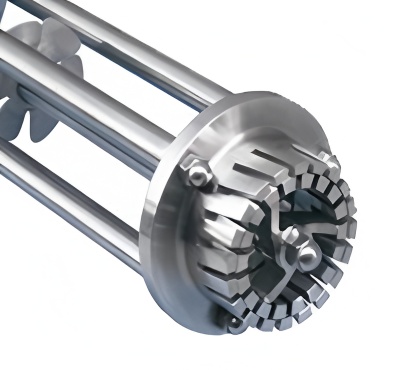

Sawtooth type Large Round hole type Screen hole type
For fine emulsions For high viscous products For middle or low viscosity

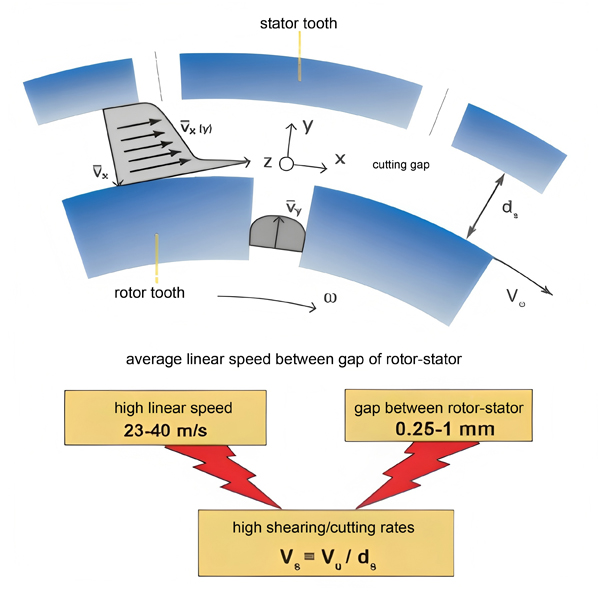

It is consisted of rotor and stator workhead.
Under the centrifugal force and hydraulic force generated by the high-speed rotor, the stator will put materials under comprehensive action such as strong shearing, centrifugal extrusion, crashing, hydraulic friction etc.
And the solid phase, liquid phase and gas phase which is insoluble at beginning will prompt evenly dispersed and emulsified with various additives.
After high-frequency circulation, stable materials with high quality are obtained in a short time.

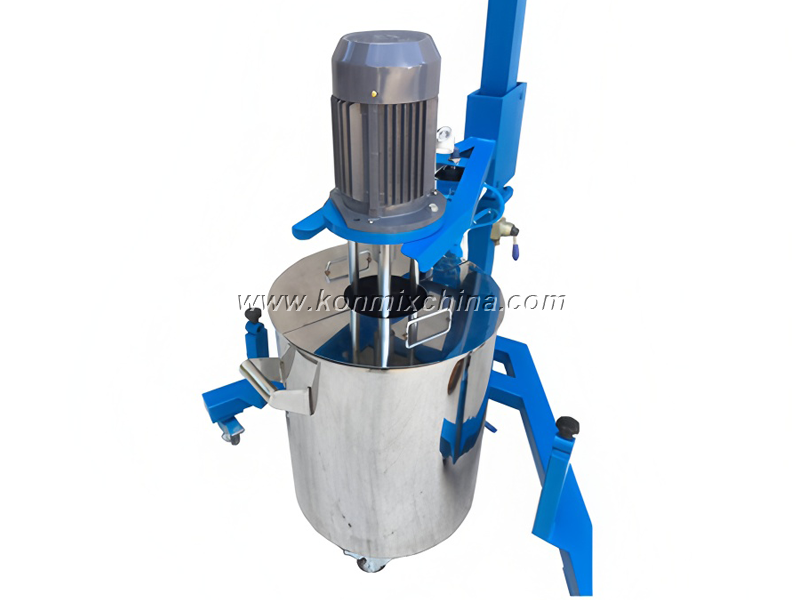

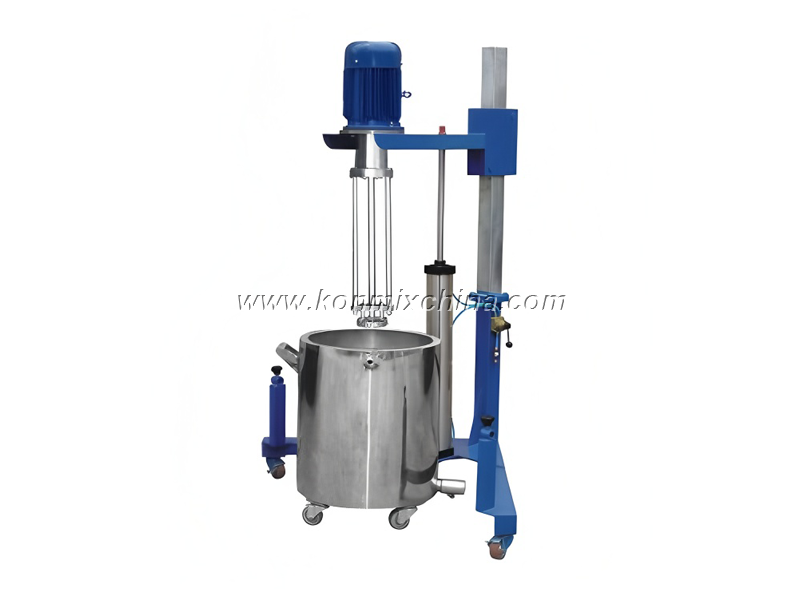

This model has the " pneumatic lifting cylinder " for lifting up & falling down.
With the electric lifting function for option.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Lifting stroke(mm) | Weight(kg) |
| KRHQ-1.1 | ≤100 | 1.1 | 0~2900 | 400 | 100 |
| KRHQ-2.2 | ≤200 | 2.2 | 0~2900 | 500 | 120 |
| KRHQ-4 | ≤300 | 4 | 0~2900 | 600 | 150 |
| KRHQ-5.5 | ≤400 | 5.5 | 0~2900 | 650 | 180 |
| KRHQ-7.5 | ≤500 | 7.5 | 0~2900 | 700 | 220 |
| KRHQ-11 | ≤800 | 11 | 0~2900 | 800 | 350 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
Material viscosity: <=50,000 cps
Production Capacity: 0L ~ 1,000L
Applied materials: suitable for liquid or liquid with powder’s high speed stirring and homogenious in the field of food, coating, paint, dye, inks, cosmetics, pesticide, agrochemical, resin, adhesive, latex, pharmaceutical, oil, emulsion etc.
