Category： Planetary mixer

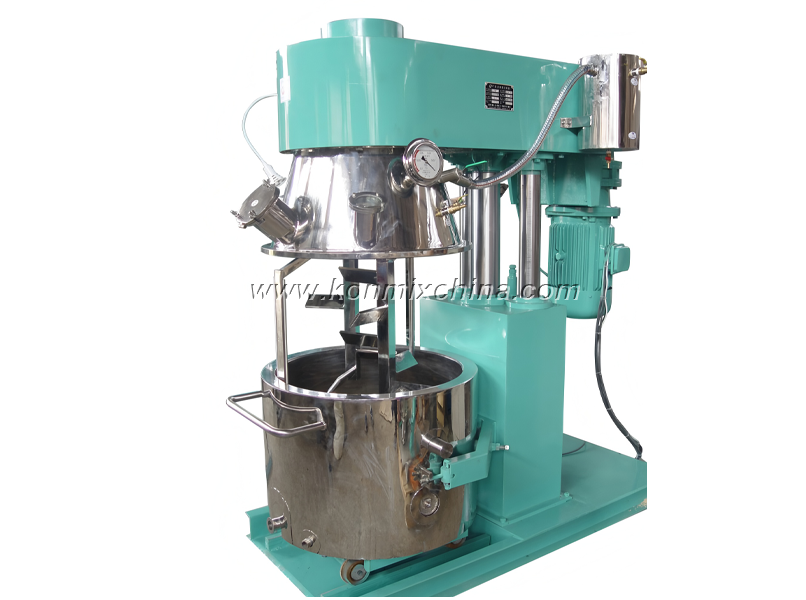

Model：KMXJ-50L
Feature： Professional for high viscous materials mixing, rotation-speed is variable rpm, with planet action. Small or medium batch capacity.
This mixer is used for small or middle-batch high viscous products trials, which is good at mixing around 50liter scale.
It is for the industries whose production process involves two or more liquids, solids in liquids, ointment to ointment and powder to ointment.

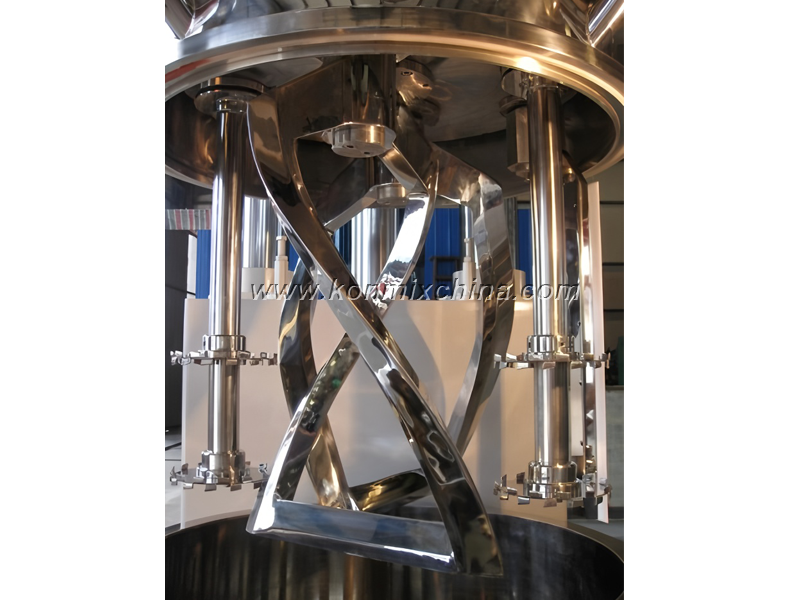

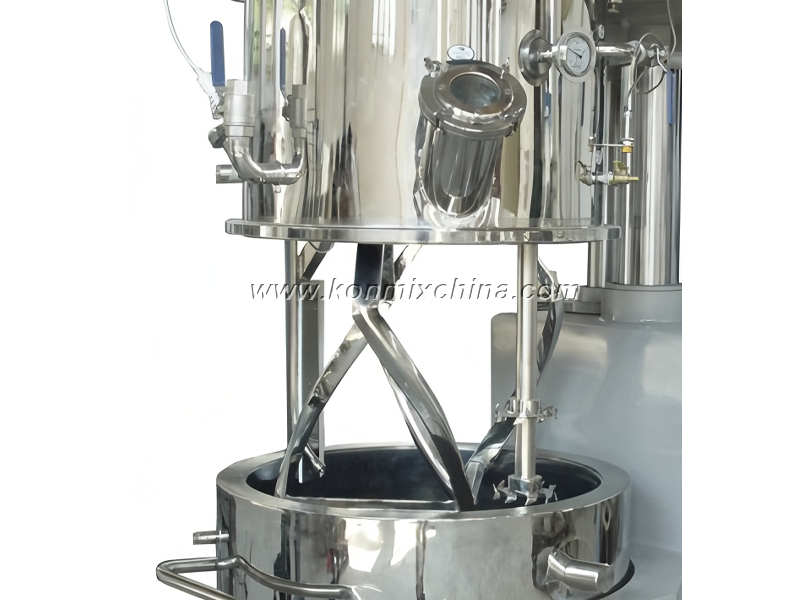

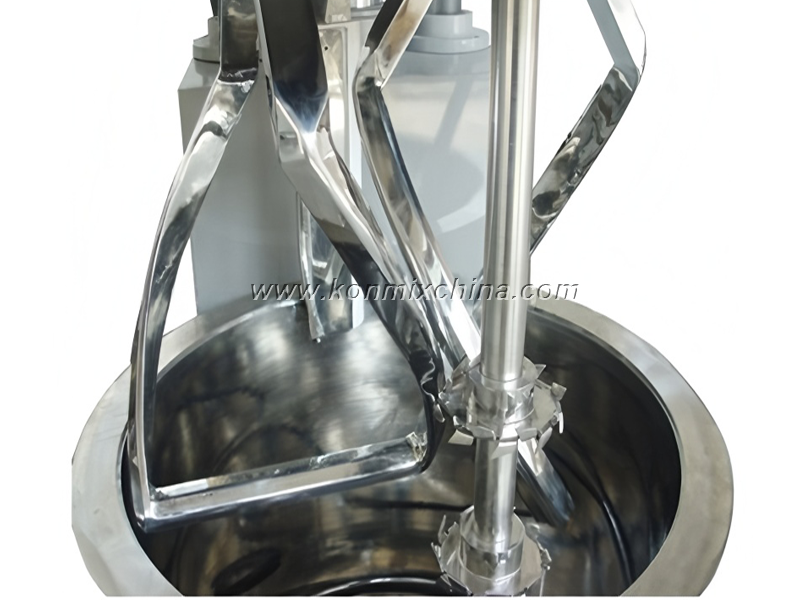

With different mixing agitators for optional, such as: paddle & twist stirrer, dispersion blade and butterfly agitator styles.
• Mixing workheads and the holding vessel are made of stainless-steel which is easily clean.
• This lab planetary mixer have models of capacity 20 ~ 50Liters.
• Mixing workheads with three distinct & simultaneous movements:
• The blades'running along with their shafts.
• The scraper's motion along with scraper shaft.
• All mixing heads also follow a complete revolution running.
This planetary mixer is composed of decelerating motor, planetary frame, agitator, scraper, bucket, hydraulic lifting system, hydraulic extrusion system and frame. When the planetary frame is rotated, the stirring shaft and dispersion axis of the box (optional) are driven around the axis of the barrel axis and high-speed autobiographies, so that the material is strong shear, kneading, achieving the goal of fully dispersed and mixed; On the planet rack, there is a scraper that moves with the planetary frame.
The wall of the barrel is constantly scraping, and the tank/vessel is made by lathing machine, this will ensures that the movable knife on the planet box will completely scrape off the material of the tank's wall when rotating, so that the wall of the bucket will not retain the material and improve the mixing effect.
1. Motor: user can selec SIEMENS or ABB brand.
2. Explosion-proof type mixer is optional.
3. Power: 7.5kW.
4. Power Supply: 380V, 50HZ, 3Phase or same as user's local standard.
5. Speed Control: various speed controlling.
6. Revolution Speed: 0~63RPM.
7. Capacity: 20L~50L.
This machine is suitable to do the materials of viscosity up or below 10,000 Pa.s.
Production capacity: this model for lab trials or Mid-batch scale testings.
Applied materials: Suitable for many kinds of vicious chemical products, such as paint and coatings, adhesives, agrochemicals, inks, putty, silicones, glues, sealants, pastes, dental, -- etc.
