Category： Planetary Mixer

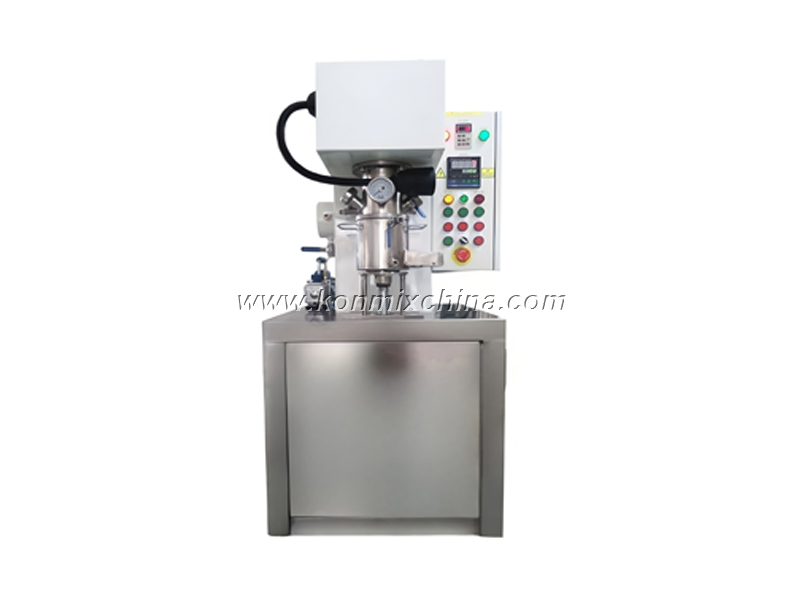

Model：KMXJ-2L, KMXJ-5L, KMXJ-10L
Feature： It is professional for high viscosity materials mixing. Running speed is variable, with planet rotation, fully mixture in tank.
This mixer is applied in laboratory for mixing high viscous materials.
It is for the industries whose production process involve two or more liquids,solids in liquids,ointment to ointment and powder to ointment.

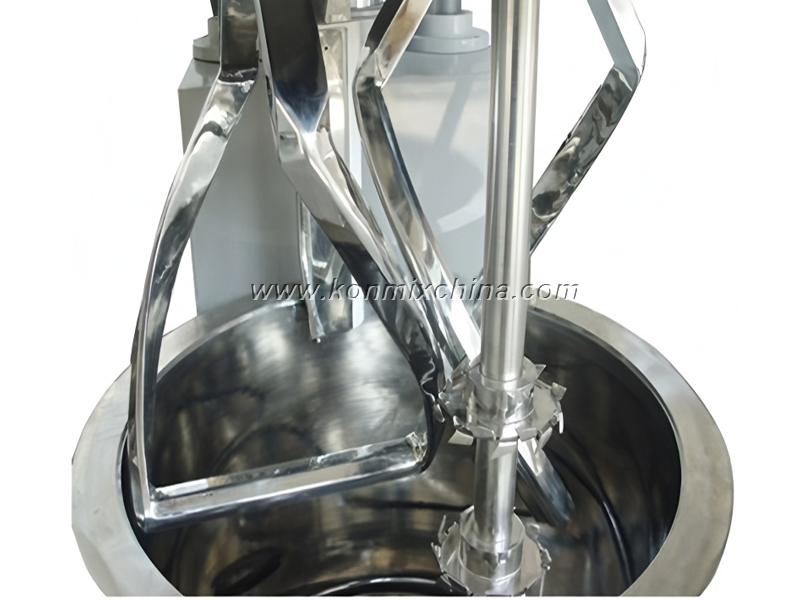

With different mixing agitators for optional,such as paddle,twist and butterfly style.
• Mixing workheads and the holding vessel are made of stainless steel which is easily clean.
• This lab planetary mixer have models of capacity 2L, 5L & 15Liters.

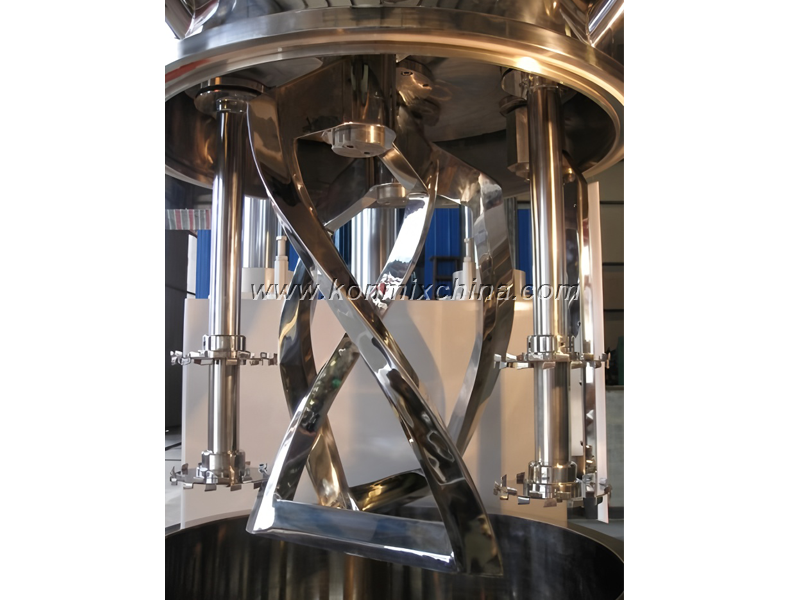

• Mixing workheads with three distinct & simultaneous movements:
• The blades'running along with their shafts.
• The scraper's motion along with scraper shaft.
• All mixing heads also follow a complete revolution running.
Lab planetary mixer is composed of decelerating motor, planetary frame, agitator, scraper, bucket, hydraulic lifting system, hydraulic extrusion system and frame. When the planetary frame is rotated, the stirring shaft and dispersion axis of the box (optional) are driven around the axis of the barrel axis and high-speed autobiographies, so that the material is strong shear, kneading, achieving the goal of fully dispersed and mixed; On the planet rack, there is a scraper that moves with the planetary frame.
The wall of the barrel is constantly scraping. The wall of the barrel is refined by the big car, and then polished by automatic polishing machine.
It ensures that the movable knife on the planet rack will completely scrape off the material of the barrel wall when rotating, so that the wall of the bucket will not retain the material and improve the mixing effect.
After stirring, the extruding system can be moved to the extrusion system to complete the extrusion process.
1. Motor: user can selec SIEMENS or ABB brand.
2. Explosion-proof type mixer is optional.
3. Power: 1.5kW.
4. Power Supply: 380V, 50HZ or same as client's need.
5. Speed Control: various speed controlling.
6. Revolution Seed: 0~63RPM.
7. Capacity: 5L (2L, 10L model is optional).
Materials viscosity: ≤1,000,000 cps
Production capacity: 0~30L, this model is mainly for laboratory trials.
Application industry: suitable for dispersing and mixing materials in industries such as coating, putty, adhesive, energy, electronics & electrical appliances, pharmaceuticals, cosmetics, food etc..
Applicable products: Various slurries with viscosity less than 1,000,000cps, solid content under 90% such as battery paste, solder paste, ceramic paste, silicone inks, sealants, structural adhesives, soft cream, jam etc..
