Category： Lab disperser mixer

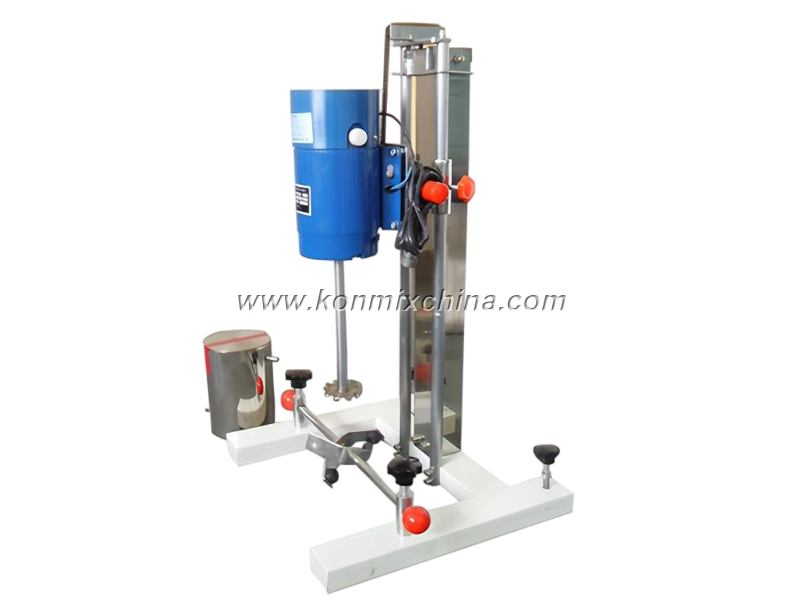

Model：KFS-1500W
Feature： With various speed adjustment function, speed rpm is digital displayed & with clamp for fixing the tank/vessel
This model mixer is for middle-batch mixing trials.
It can dissolve, disperse & mix liqudis or liquid mixture with powder materials.
This model is good at mixing different viscous products.
The rotation speed is variable RPM.
It has the lifting up & falling down function, very convenient for operation.
• This product has very high peripheral tip speed of the toothed disc which reaches 5000rpm.
• The strong shearing, crashing and friction forces generated between the materials.
• Toothed disc disperse, dissolve and mix the materials efficiently.
• The large stress forces break down the agglomerates, and achieve symmetrical particles.
Through the high-speed rotation dispersing disc, the material will become in annular form flow, resulting in
strong vortex flow, which descend down to the bottom of the vortex in spiral state.
During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.
1. Motor: high-quality precised motor.
2. Power: 1100W, 1500W.
3. Power Supply: 220V,50HZ, Single-phase.
4. Speed Control: various speed controlling.
5. Speed: 0 ~ 5000RPM.
6. Capacity: 0.5 ~ 100L.
7. The contacting part materials is: SUS304 stainless-steel.
8. Other parts: Q235-A.
9. Height Adjustment: manual adjustment.
10. With dispersing blade Φ80mm, Φ100mm.
11. Package: by standard packaging box or carton box.
Material viscosity: <=100,000 cps
Production Capacity: 0L-100L
Applied materials: suitable for liquid or liquid-phase's high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
