Category： Customized mixer
Model：KJBL-M
Feature： With multi-shaft structure, strong powerful driving system, apply for high viscosity materials mixture, like the lacquer, natural stone paints

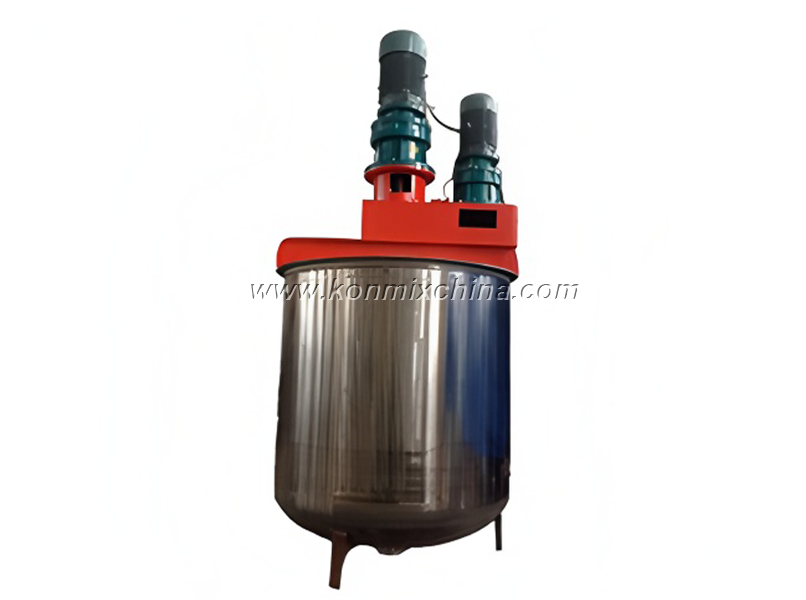

This dual-shaft mixing machine is working with a Vessel/tank, and it is aso called " multi-shaft mixing system ".

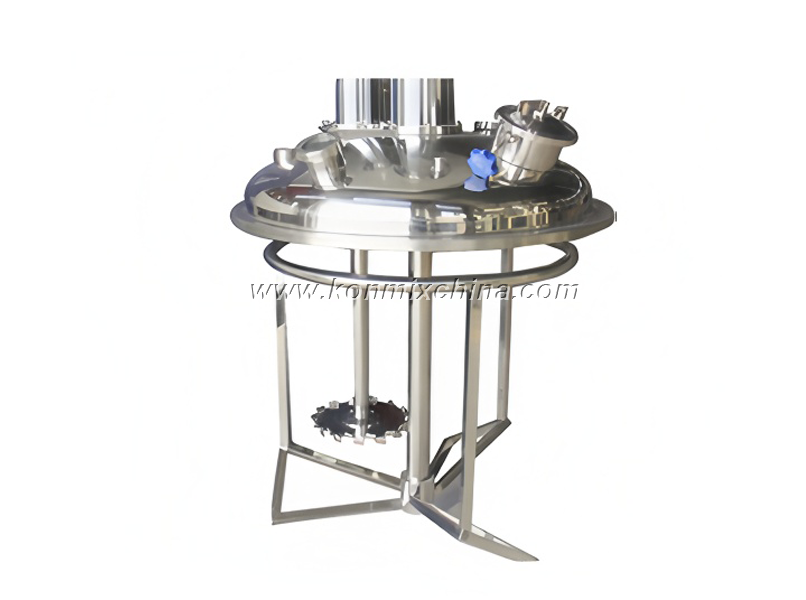

It has two mixing shafts, the low and high speed blade together with the frame or anchor agitator.
This mixing unit is good for Low, middle or high viscous products mixture.
When under working, both mixing blades will run at the same time, with very ideal blending performance.
• Our Dual-shaft mixing vessel have different capacity for optional.
• Running speed is various adjustment, and with digital display.
• Tank/Vessel can be customized with jacket, for heating or coolant.
• Vessel's surface is mirror polish treatment.
• Vessel's surface with luminant appearance.
• A platform can be customized together with whole system.
Through the high speed mixing blade & low-speed stirrer, the materials flow in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.

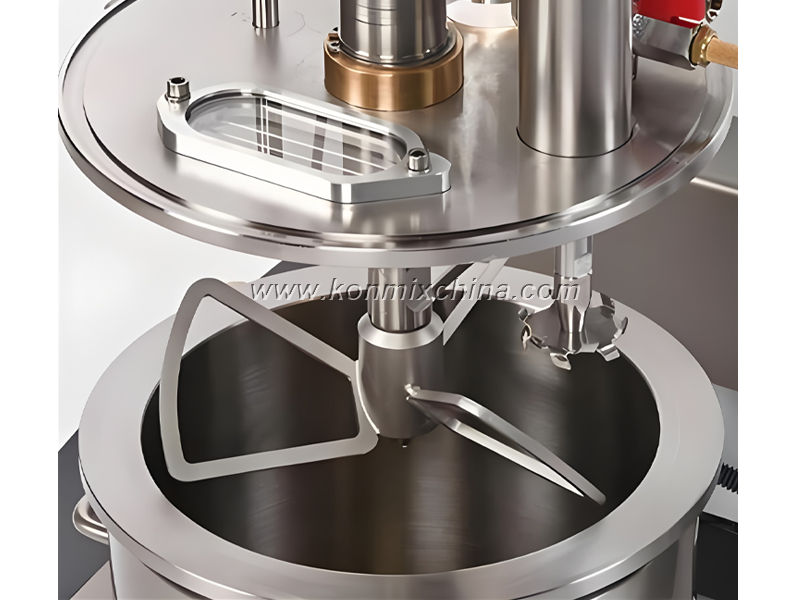

The PTFE scraper rotates clinging to the tank wall to scrape the materials staying on the tank wall off and also enhances the material circulation.
| Model | Capacity(L) | Mixer's power(kw) | Speed(rpm) | Mixing blade(mm) | Disperser power(kw) | Disperser speed(rpm) |
| KJBL-M-1000 | 1000 | 4 | 43 | 250 | 22 | 0~1450 |
| KJBL-M-2000 | 2000 | 5.5 | 43 | 350 | 5.5 | 0~1450 |
| KJBL-M-3000 | 3000 | 11 | 43 | 350 | 7.5 | 0~1450 |
| KJBL-M-4000 | 4000 | 15 | 43 | 380 | 11 | 0~1450 |
| KJBL-M-5000 | 5000 | 22 | 35 | 400 | 15 | 0~1450 |
| KJBL-M-6000 | 6000 | 30 | 35 | 450 | 22 | 0~1450 |
| KJBL-M-7000 | 7000 | 37 | 28 | 500 | 37 | 0~1450 |
| KJBL-M-8000 | 8000 | 45 | 28 | 600 | 55 | 0~1450 |
| KJBL-M-10000 | 10000 | 55 | 28 | 650 | 75 | 0~1450 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com .
This model is suitable to do the materials of viscosity below 2,000 Pa.s.
Production Capacity: 0~12,000L.
Applied materials: suitable for liquid or liquid-phase's high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
