Category： Lifting Disperser Mixer
Model：KFSY Series
Feature： High speed running, the rotation speed can be controlled on panel, hydraulic lifting stand.With non-standard design

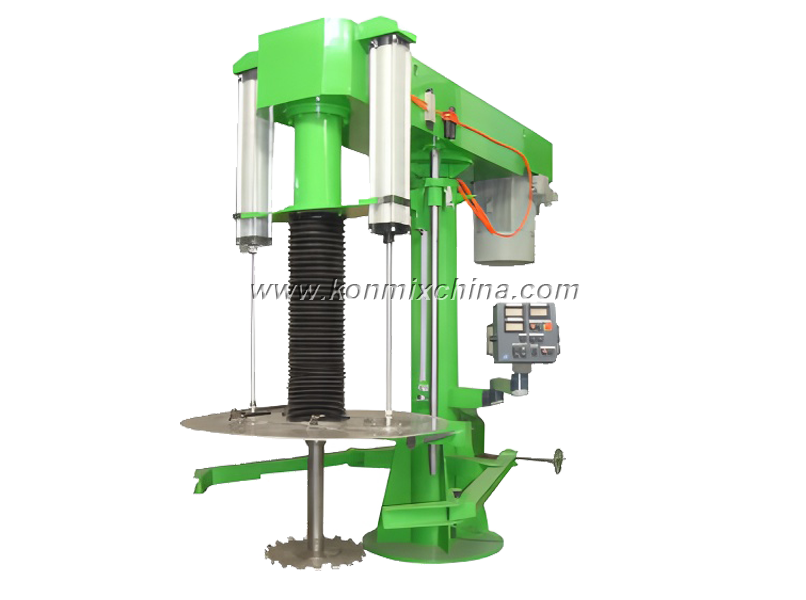

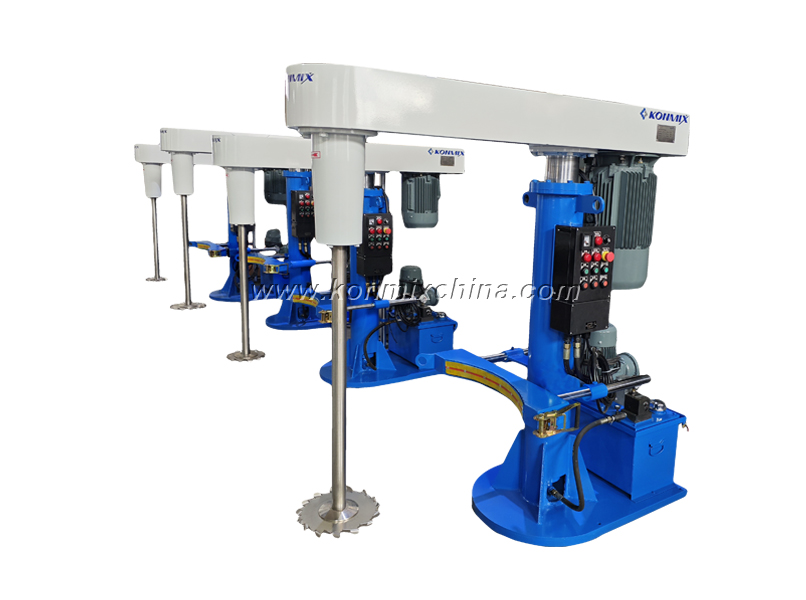

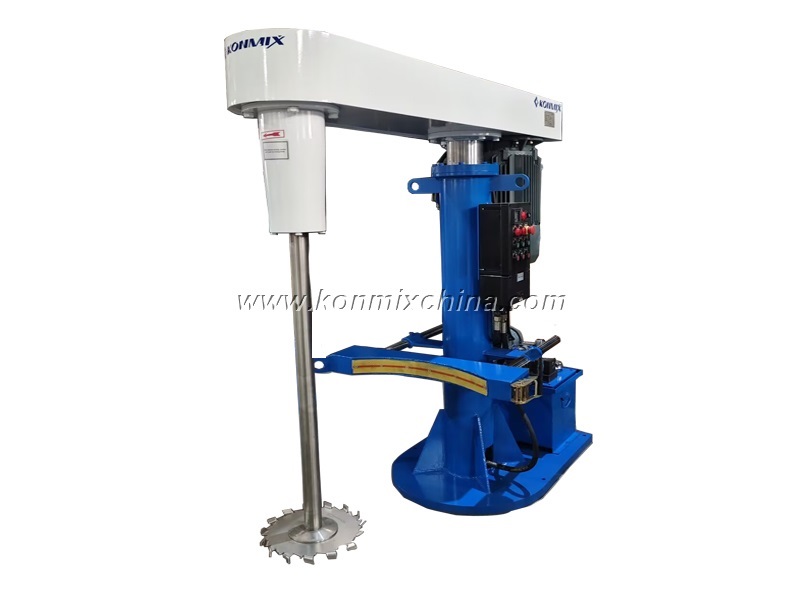

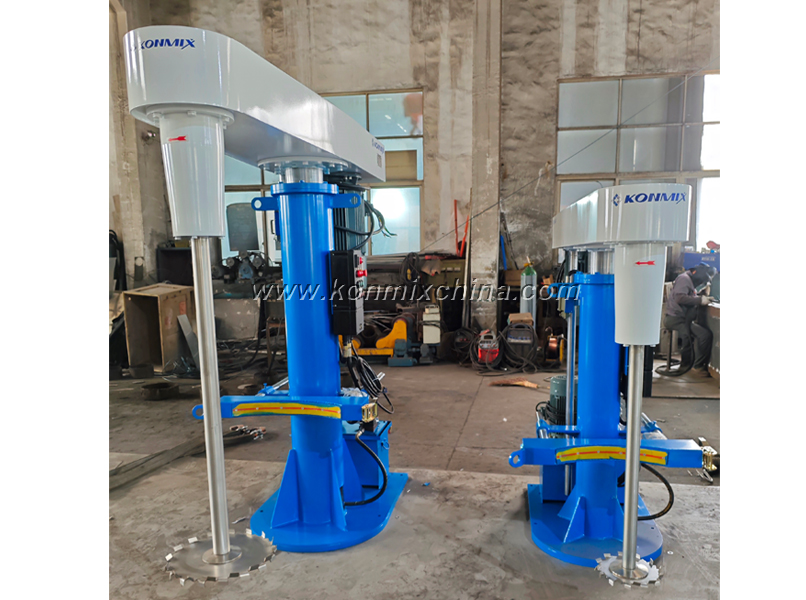

KFSY Hydraulic Lifting Type High-speed Disperser is suitable for pre-dispersion and mixing used in industrial production.

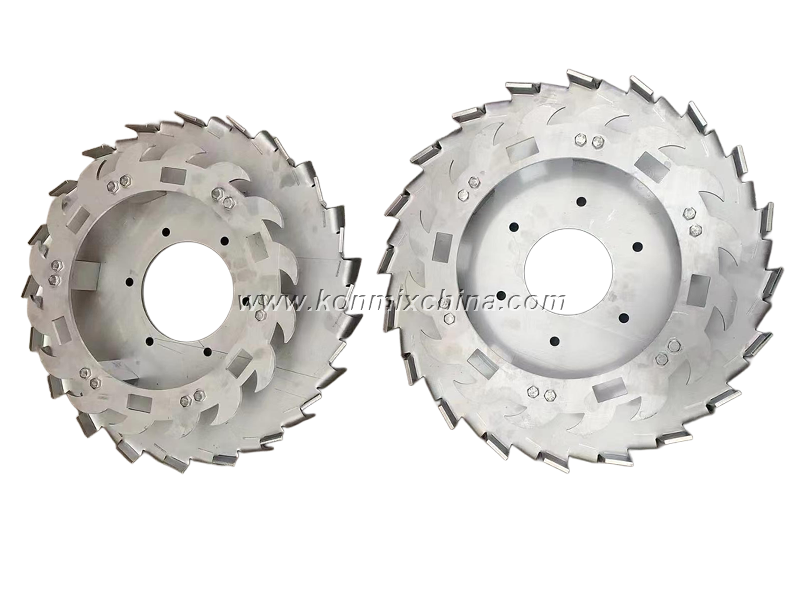

Its working principle is through the high-speed rotation of the sawtooth dispersing disc, generating strong shear impact and friction between the material and the dispersing disc, achieving rapid dispersion, dissolution, and uniform mixing. This equipment has a compact structure, stable performance, precise frequency conversion speed regulation, low energy consumption, stable hydraulic lifting performance, convenient operation, easy disassembly and cleaning of the dispersing disc, and is widely used in coatings, inks, adhesives, emulsions, fine chemicals, and other mixing and dispersion applications.
• This model is suitable to use in industrial fields for pre-mixing liquids.
• It disperses and dissolves materials to smaller particle size efficiently.
• The motor can be ABB or SIEMENS brand.
• Power supply: 380V/415V, 50HZ, 3P or customized same as client's need.
• Speed control: with frequency inverter to realize various speed controlling.
• Height adjusting: hydraulic lifting ways or design same as client's need.

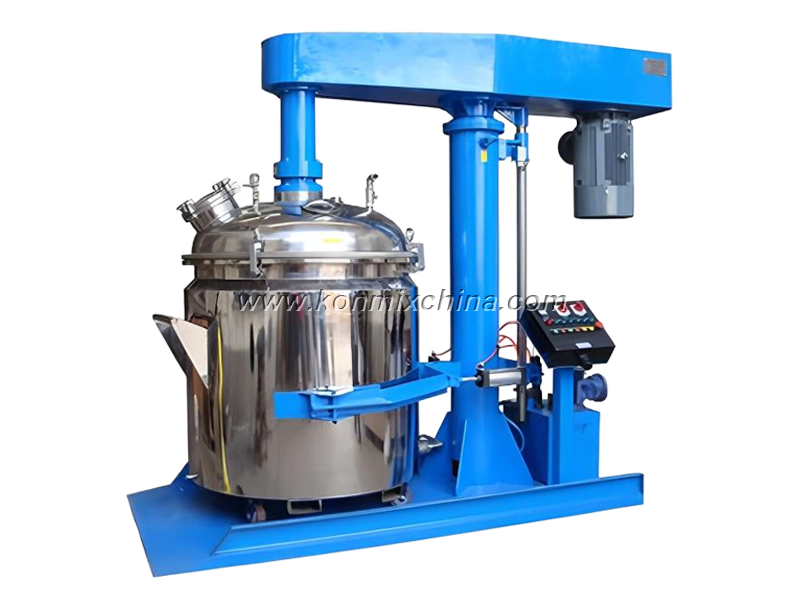

• With clamp device for tightening the mixing tank or vessel.
Through the high-speed rotation dispersing disc, the material will become in annular form flow,
resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state.
During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong
shearing crash and friction among the particles.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Disc dia(mm) | Lift Stroke(mm) | Hydraulic Power(kw) |
| KFSY-1.5 | ≤50 | 1.5 | 0-1440 | 150 | 600 | 0.55 |
| KFSY-2.2 | ≤100 | 2.2 | 0-1440 | 150 | 700 | 0.55 |
| KFSY-4 | ≤200 | 4 | 0-1440 | 200 | 800 | 0.55 |
| KFSY-2.2 | ≤100 | 2.2 | 0-1440 | 150 | 700 | 0.55 |
| KFSY-7.5 | ≤400 | 7.5 | 0-1440 | 230 | 900 | 0.75 |
| KFSY-11 | ≤500 | 11 | 0-1440 | 250 | 900 | 0.75 |
| KFSY-15 | ≤700 | 15 | 0-1440 | 250 | 900 | 0.75 |
| KFSY-18.5 | ≤800 | 18.5 | 0-1440 | 300 | 1100 | 0.75 |
| KFSY-22 | ≤1000 | 22 | 0-1440 | 350 | 1100 | 1.1 |
| KFSY-30 | ≤1500 | 30 | 0-1440 | 400 | 1100 | 1.1 |
| KFSY-37 | ≤1800 | 37 | 0-1440 | 400 | 1600 | 1.1 |
| KFSY-45 | ≤2500 | 45 | 0-1440 | 450 | 1600 | 1.1 |
| KFSY-55 | ≤3000 | 55 | 0-1440 | 500 | 1600 | 1.1 |
| KFSY-75 | ≤4500 | 75 | 0-1200 | 550 | 1800 | 2.2 |
| KFSY-90 | ≤6000 | 90 | 0-960 | 600 | 1800 | 2.2 |
| KFSY-110 | ≤8000 | 110 | 0-960 | 700 | 2100 | 3 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
Material viscosity: <=100,000 cps
Production Capacity: 0L-12,000L
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
