Category： Lifting type disperser
Model：KFS-Q
Feature： With pneumatic lift stand, convenient to remove. The running speed is variable rpm, which can be controlled on panel
It dissolves & mixes materials, which is also called " Disperser machine ".

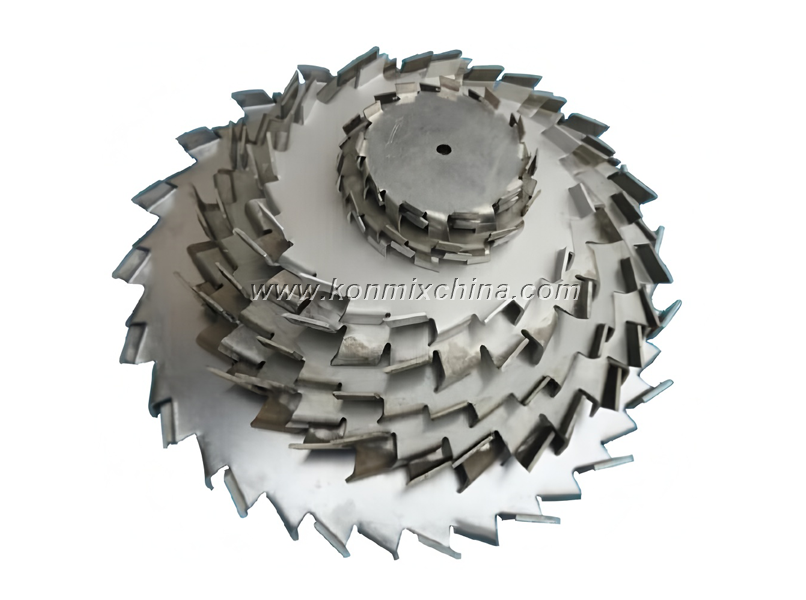

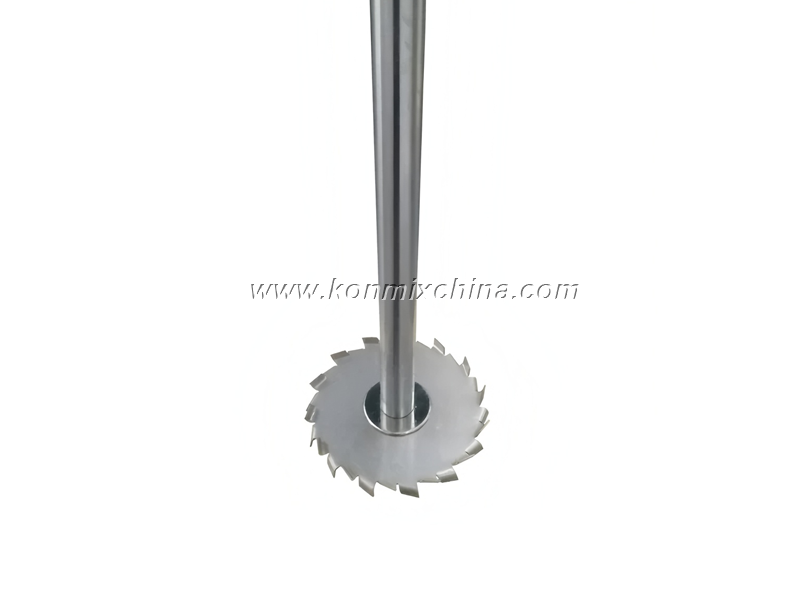

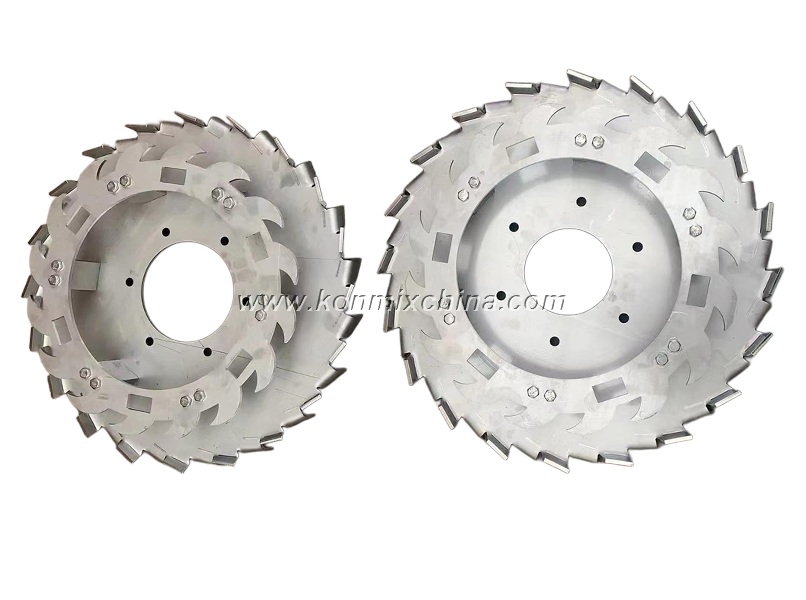

Through the very high peripheral tip speed of the toothed disc.
It has the strong shearing, crashing and friction forces generated between the materials and toothed disc-
disperse,dissolve and mix the materials efficiently.
• This model is suitable to use in industrial fields for pre-mixing liquids.
• It disperses and dissolves materials to smaller particle size efficiently.
• The motor can be ABB or SIEMENS brand (flame-proof type is optional).
• Power supply: 380V/50HZ, 3P( voltage can be customized ).
• Speed control: with frequency inverter to realize various speed control.
• The contacting parts are: SS304 or SS316L stainless steel.
• Height adjusting: pneumatic lifting ways.
This machine disperses, wets, depolymerized and stabilized in high speed in the container. The rotor fluid has a rolling ring flow, which results in a strong vortex, and the particles on the surface of the blades are spirally downward to the bottom of the vortex. The turbulent region was formed at the edge of the scattered disk 2.5 to 5mm. The slurry and particles were subjected to intense shear and shock. Two beams are formed outside the region, and the pulp is fully circulated and turned. The fluid at the bottom of the disperser is laminar flow, and the slurry layer of different flow rate disperses each other.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Disc dia(mm) | Lift Stroke(mm) | Weight(kg) |
| KFS-Q-2.2 | ≤100 | 2.2 | 0~2900 | 100 | 500 | 90 |
| KFSY-Q-4 | ≤200 | 4 | 0~2900 | 150 | 550 | 120 |
| KFS-Q-5.5 | ≤300 | 5.5 | 0~1450 | 200 | 600 | 150 |
| KFS-Q-7.5 | ≤400 | 7.5 | 0~1450 | 250 | 700 | 180 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc.Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com
Materials' viscosity: <=50,000 cps
Production capacity: 0~400L
Applied materials: Suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coatings, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, pesticide, powder, --- etc.
Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
