Category： Customizable Disperser
Model：KFS Series
Feature： This machine with vacuum & defoaming work condition, full closure in mixing process, suitable for low and high viscous materials

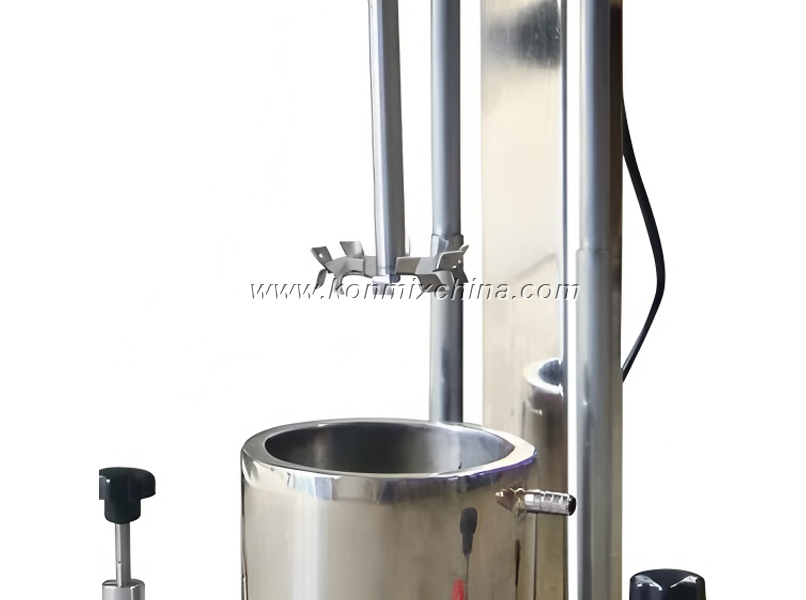

Dissolver mixer machine usually dissolves and mixes liquid materials, or liquids mixture with powders.
Through the very high peripheral tip speed of the toothed disc, the strong shearing and friction forces are generated to mix the materials efficiently.
This machine can select the lifting up stand/frame.
It can increase the special funciton, including the vacuum, heating or coolings.
• This model is suitable to use in industrial fields for pre-mixing liquids.
• It disperses and dissolves materials to smaller particle size efficiently.
• The motor can be ABB or SIEMENS brand.
• Power supply: 380V/50HZ, 3P or customized.
• Speed control: with frequency inverter to realize various speed control.
• Height adjusting: hydraulic lifting ways.
• With clamp device to tighten tank/vessel.

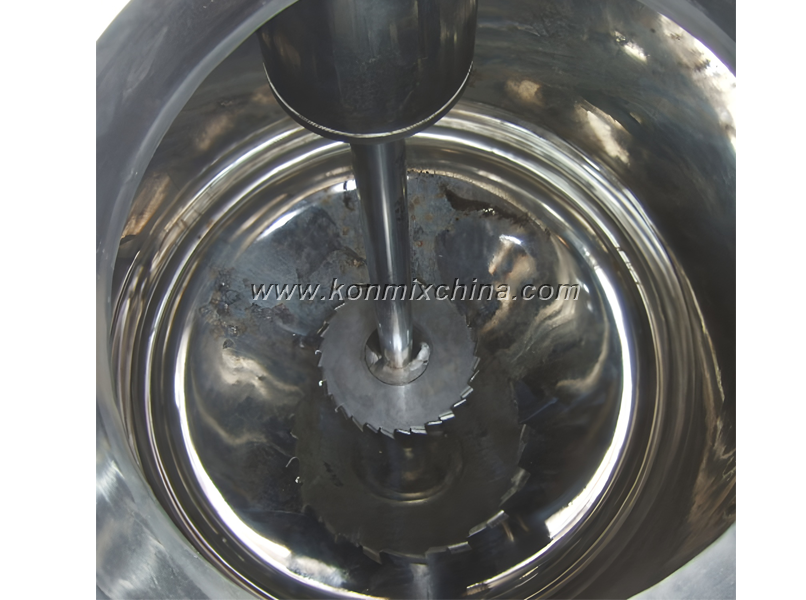

Through the high-speed rotation dispersing disc, the materials will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.
The hydraulic pump drives the hydraulic cylinder ascend and descend, which drives the whole transmission, working set and closed cover up and down. And during operation, the cover and tank is completely closed to realize vacuum dispersing result with the help of vacuum system.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Disc dia(mm) | Lift Stroke(mm) | Hydraulic Power(kw) |
| KFS-2.2 | ≤100 | 2.2 | 0~1450 | 150 | 500 | 0.55 |
| KFS-4 | ≤200 | 4 | 0~1450 | 200 | 600 | 0.55 |
| KFS-7.5 | ≤300 | 7.5 | 0~1450 | 250 | 700 | 0.75 |
| KFS-11 | ≤400 | 11 | 0~1450 | 300 | 800 | 0.75 |
| KFS-15 | ≤500 | 15 | 0~1450 | 300 | 900 | 0.75 |
| KFS-22 | ≤1000 | 22 | 0~1450 | 350 | 1000 | 1.1 |
| KFS-30 | ≤1200 | 30 | 0~1450 | 400 | 1100 | 1.5 |
| KFS-37 | ≤1500 | 37 | 0~1450 | 450 | 1200 | 1.5 |
| KFS-45 | ≤2000 | 45 | 0~1450 | 500 | 1300 | 2.2 |
| KFS-55 | ≤2500 | 55 | 0~1450 | 550 | 1500 | 2.2 |
| KFS-75 | ≤3000 | 75 | 0~1450 | 600 | 1600 | 2.2 |
| KFS-90 | ≤4000 | 90 | 0~1450 | 650 | 1700 | 3 |
| KFS-110 | ≤5000 | 110 | 0~1450 | 700 | 2000 | 3 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity,gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
Material viscosity: <=100,000 cps
Production Capacity: 0L~10,000L
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
