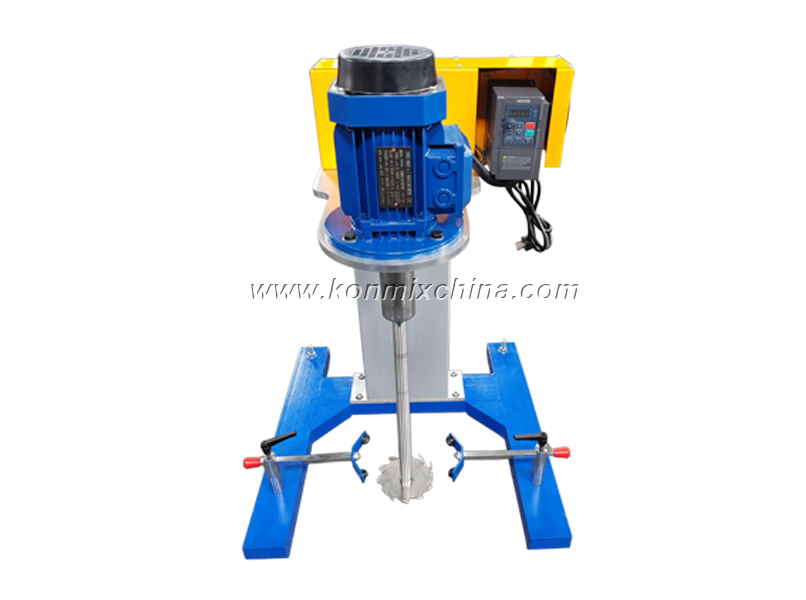

Lab Dissolver/Disperser is a high-speed mixing machine, and can dissolve, disperse & mix materials.

It is good at mixing different viscous products, including the liquid, or liquid mixture with powder.

The running speed is variable RPM, with " frequency inverter " to perform speed controllings.

This model is widely used for lab testing, research & development.

• This machine has very high peripheral tip speed of the toothed disc which reaches 8000rpm.

• The strong shearing, crashing and friction forces generated between the materials.

• Toothed disc disperse, dissolve and mix the materials efficiently.

• The large stress forces break down the agglomerates, and achieve symmetrical particles.

Through the high-speed rotation dispersing disc, the material will become in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.

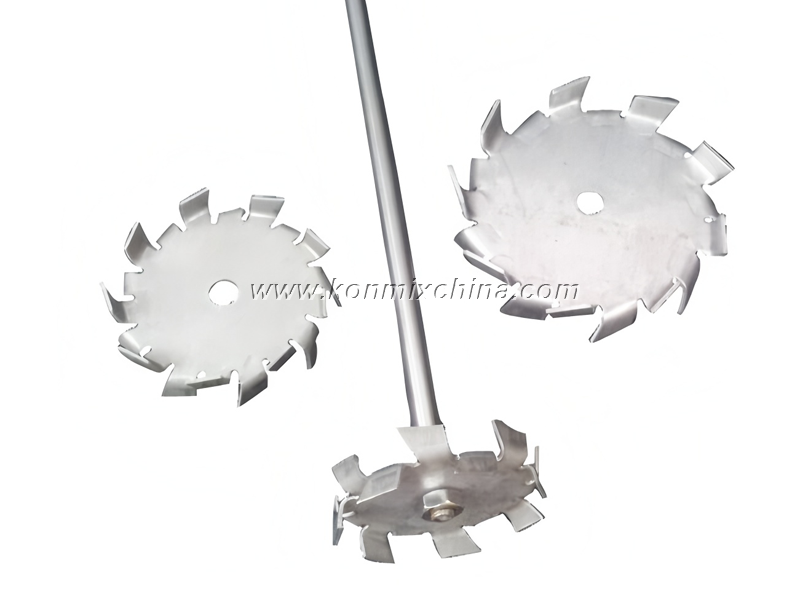

This lab scale dissover has different dimension mixing blades for different materials.

1.  Motor:  high quality precised motor.

2.  Power:  400W, 550W, 750W.

3.  Power Supply:  220V, 50HZ, Single-phase.

4.  Speed Control:  various speed controlling.

5.  Speed:  0-8000RPM.

6.  Capacity:  0.3 ~ 5L.

7.  The contacting part materials is:  SUS304.

8.  Other parts:  Q235-A.

9.  Height Adjustment:  manual adjustment.

10.  With dispersing blade Φ50mm, Φ60mm.

11.  Package:  by standard wooden or carton box.

It is suitable for the dispersion of small quantities of products in coatings, paint, inks, petrochemical, pharmaceutical, food and

fine chemical industries.
It is widely used in the industrial production of scientific research, new product development and small batch products.
