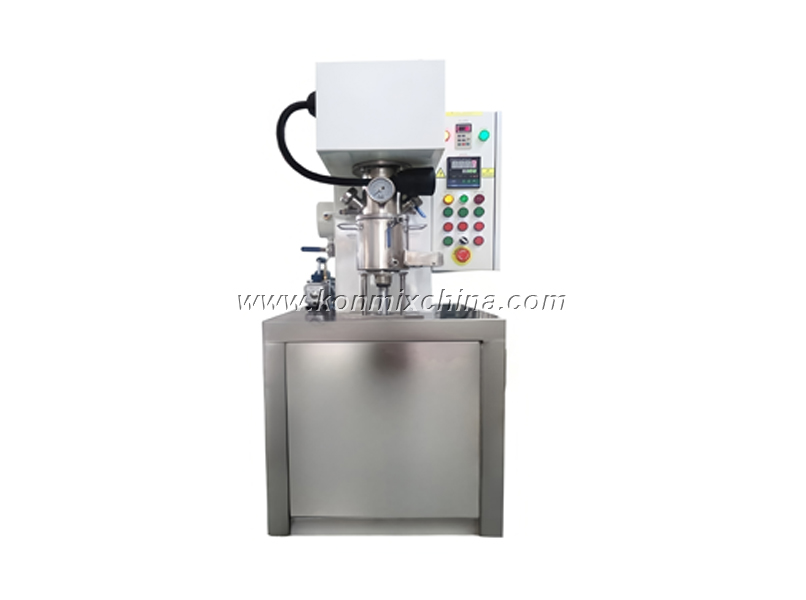

Category： Lab mixers
Model：KMXJ-5L
Feature： With planet mixing rotation, professional for small batch testing,running speed is variable, with multi-shaft mixing blades
This mixer is applied in laboratory for mixing middle or high viscous liquid materials.
It is for the industries whose production process involve two or more liquids, solids in liquids, ointment with
ointment, powder with paste mixings.
With different mixing agitators for optional,such as paddle,twist and butterfly style.
• Mixing workheads and the holding vessel are made of stainless steel which is easily clean.
• This lab planetary mixer have models of capacity 2L, 5L, 10L & 15Liters.
• Mixing workheads with three distinct & simultaneous movements:
• The blades'running along with their shafts.
• The scraper's motion along with scraper shaft.
• All mixing heads also follow a complete revolution running.
Lab planetary mixer is composed of decelerating motor, planetary frame, agitator, scraper, bucket, hydraulic
lifting system, hydraulic extrusion system and supporting stand.
When the planetary mixer is rotated, the stirring shaft and dispersion axis of the box (optional) are driven
around the axis of the barrel axis and high-speed autobiographies, so that the material is strong shear,
kneading, achieving the goal of fully dispersed and mixed.
On the planet rack, there is a scraper that moves with the planet box, so the wall of the barrel/tank is
constantly scraping.
The wall of the barrel is refined by the lathing machine, and then polished by automatic polishing machine.
It ensures that the movable knife on the planet rack will completely scrape off the material of the barrel wall when rotating, so that the wall of the bucket will not retain the material and improve the mixing effect.
After mixing well, then the mixing tank can be moved to the extrusion system to complete the extrusion process.
1. Motor: user can selec SIEMENS or ABB brand.
2. Explosion-proof type mixer is optional.
3. Power: 0.75KW.
4. Power Supply: 380V, 50HZ.
5. Speed Control: various speed controlling.
6. Revolution Seed: 0-63RPM.
7. Capacity: 5L (2L, 10L & 15L models are optional).
This machine is suitable to do the materials of viscosity up or below 1,000,000 cps.
Production capacity: this model for laboratory trials.
Applied materials: Suitable for many kinds of vicious chemical products, such as paint and coatings, adhesives, agrochemicals, inks, putty, silicones, glues, sealants, pastes, dental, --- etc.
