Category： Lab Homogenizer
Model：KRM-I
Feature： For lab emulsifying homogeneous trials, with variable rotation speed, user can operation to work hold in hand
This Lab homogenizer has high linear velocity, and with excellent emulsifying, mixing & homogenious function.
The structure is compact, and users can operate handheld.
It is an ideal machine for laboratory small sample trials and available for research and development fields
This model is maily applicable for capacity 0 ~ 350ml.

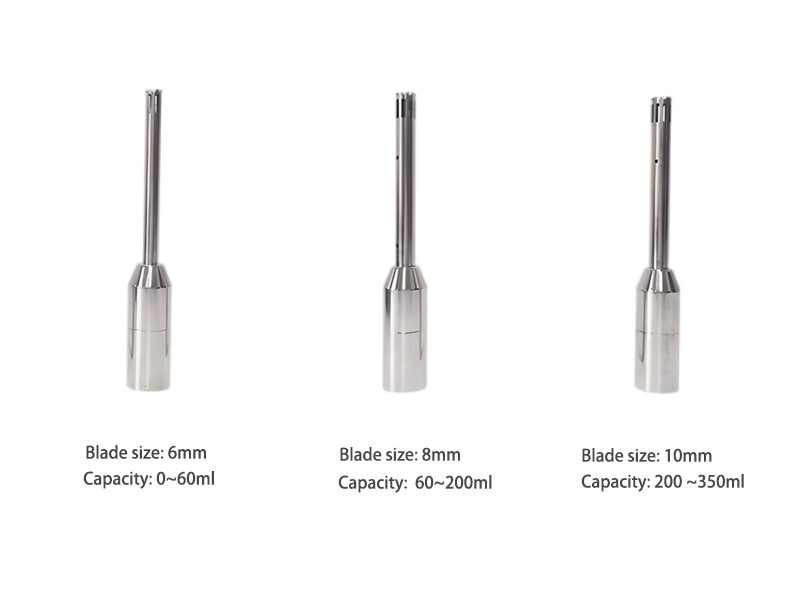

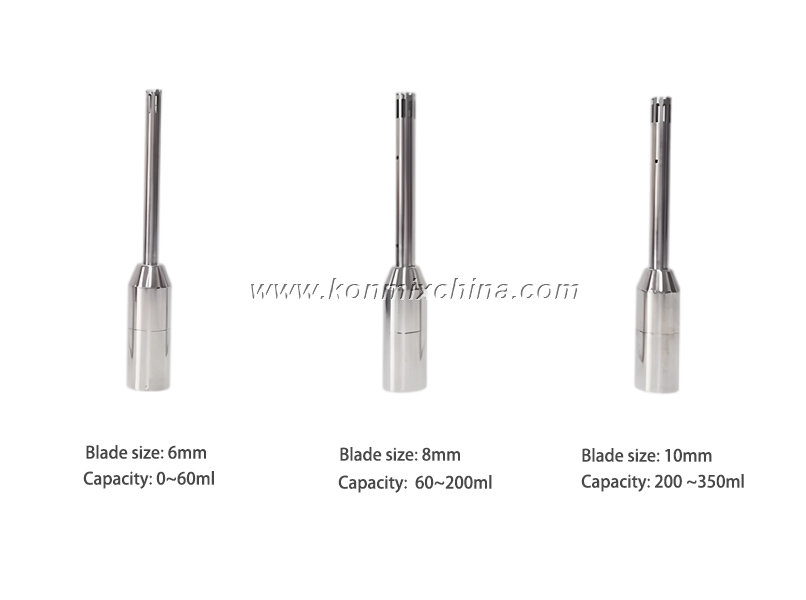

The rotor-stator workhead with 6mm, 8mm and 10mm for selection.
The 6mm workhead is good to work capacity 0~60ml, the 8mm workhead is good to work 60~200ml,
and 10mm workhead is good to work 200~350ml.
• With small size workhead of diameter 6mm, 8mm, 10mm for selection.
• Have the function of stepless speed controlling.

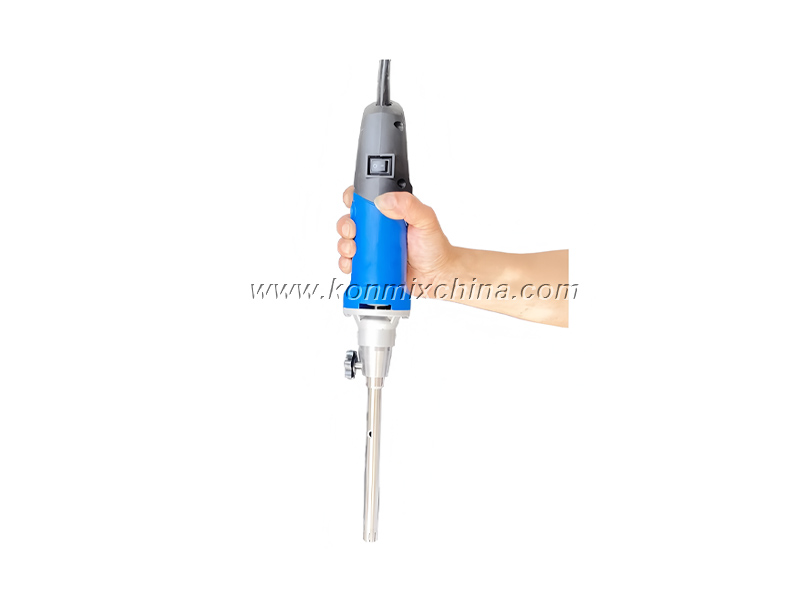

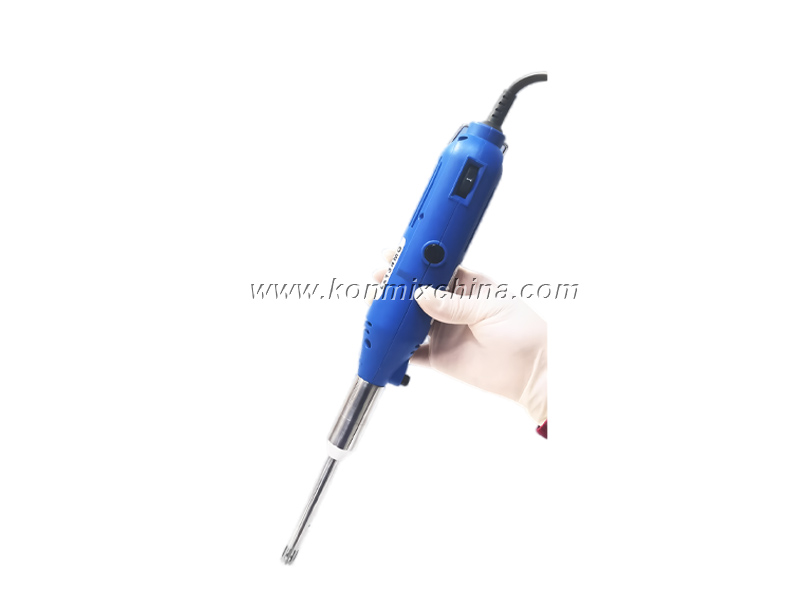

• Operator can hold this model in hand for operation.
• Used for emulsification of liquid or liquids with a little solid.
• With high shear rotor/stator workhead.
• Low noise when under working.
• The emulsifying head can be dismantled rapidly, easy to clean.
High-speed rotation motor drives the rotor to rotate at high speed, which generates vacuum environment between the stator and rotor. So materials are sucked into the chamber from the top of the stator, rotor and also from the bottom. Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor. After processed, the materials are flying out and generates strong turbulence under the action of forces from different direction. Stable emulsion is obtained after repeated disaggregation, dispersion, homogenization, shearing for a certain period with help of mature production technology.
1. Model: KRM-I
2. Motor power: 180W
3. Power supply: 220V, 50HZ/60HZ
4. Speed regulation method: Electronic infinitely variable speed regulator
5. The 6mm workhead is good to work capacity 0~60ml, the 8mm workhead works 60~200ml, 10mm works 200~350ml.
6. Speed range: 0~28000RPM
7. Capacity: 0ml~350ml
8. Contact Material: SUS304 Stainless Steel
9. Adjustment Type: Manual Adjustment
10. Equipped with different working heads for selection.
11. Weight: 7.0KG
12. Packaging: standard carton box for packaging.
This model is suitable for dispersing, emulsifying and homogenized the materials in the field of biology, medicine, food, coating, printing ink, textile auxiliary, cosmetics, lubricating, pesticide, fine chemicals.
