Category： Customizable Disperser
Model：KFS-D
Feature： With high-speed disperser & low-speed scraper blade, very competent for middle & high viscosity materials
This Disperser mixer is also called " Coaxial-shaft Dispersion Mixer ”.
It integrates high-speed dispersion and low-speed mixing function together.
This mixer is professional for middle/high viscous products or thixotropic materials.
When under working, the high speed and low speed mixing workhead are running at the same time.
This model is with very ideal blending performance.
• This machine has two basic styles: one is double shafts style, another is coaxial shaft style.

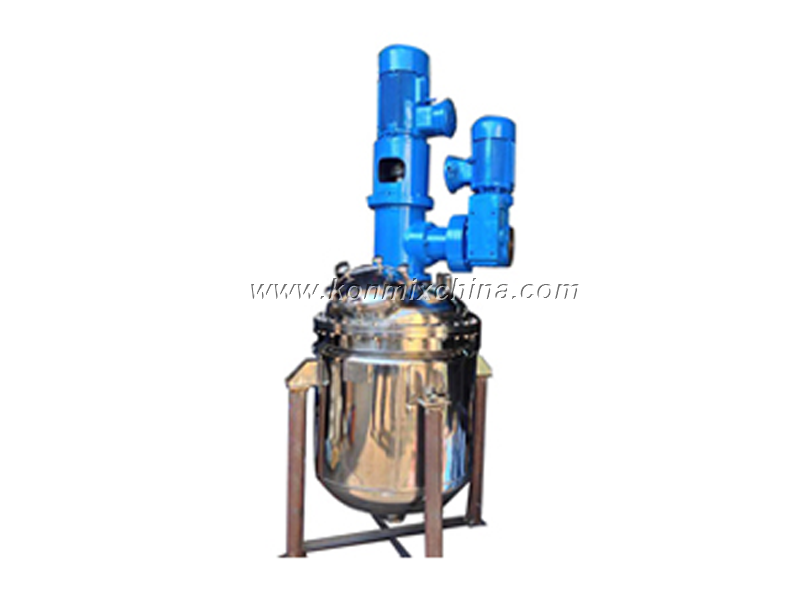

• The dual-shafts type is a high-speed dispersion with another low-speed anchor or butterfly blade.

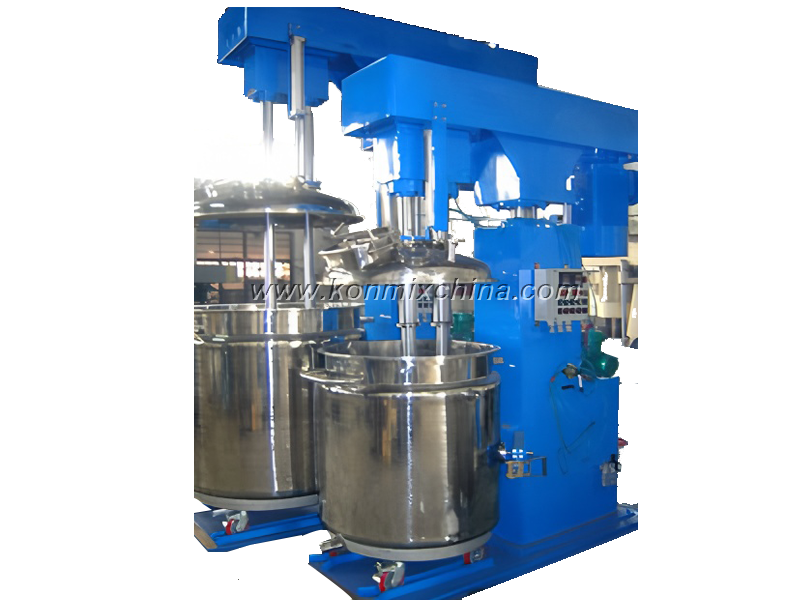

• The coaxial type is high-speed disperser workhead and with a scraper blade structure.
• These two structures will be optional according to customer’s request.
• The running speed is various adjustment, and with digital display.
• Tank/Vessel can be customized with jacket, for heating or coolant.
• Vessel's surface is mirror polished treatment.
• Machine's overall with luminant appearance.

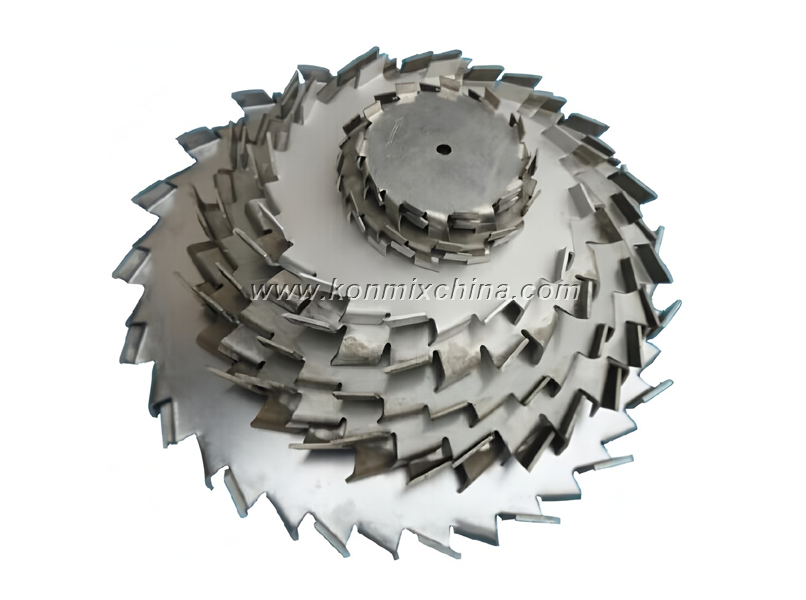

Through the high speed rotation dispersing disc, the materials flow in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state.
During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.
PTFE scraper rotates clinging to the tank wall to scrape the materials staying on the tank wall off and also enhances the material circulation.

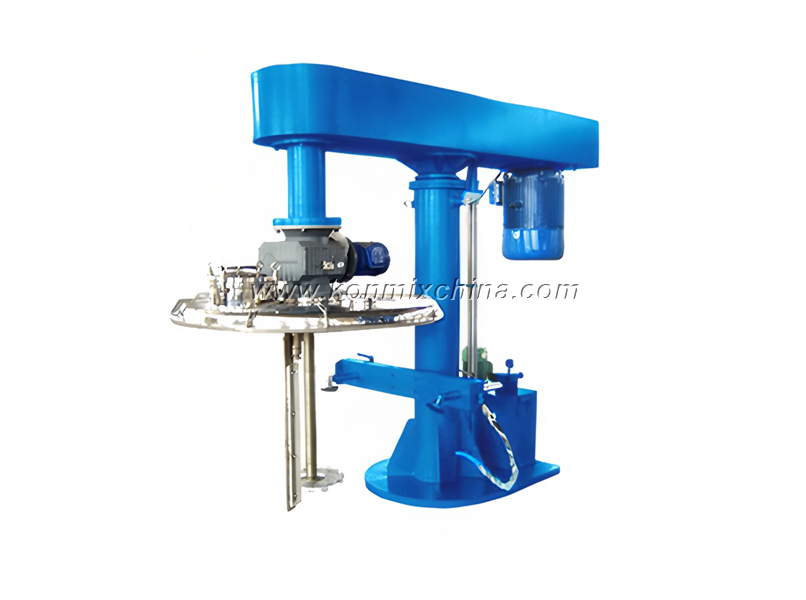

The hydraulic pump drives the hydraulic cylinder ascend and descend, which drives the whole transmission and working set up and down.
| Model | Capacity(L) | Power(kW) | Speed(RPM) | Disc dia(MM) | Lift Stroke(MM) | Hydraulic Power(kW) |
| KFS-D-4 | ≤200 | 4 | 0~1450 | 200 | 600 | 0.55 |
| KFS-D-7.5 | ≤300 | 7.5 | 0~1450 | 250 | 700 | 0.75 |
| KFS-D-11 | ≤400 | 11 | 0~1450 | 300 | 900 | 0.75 |
| KFS-D-15 | ≤500 | 15 | 0~1450 | 300 | 900 | 0.75 |
| KFS-D-22 | ≤1000 | 22 | 0~1450 | 350 | 1000 | 1.1 |
| KFS-D-30 | ≤1200 | 30 | 0~1450 | 400 | 1100 | 1.5 |
| KFS-D-37 | ≤1500 | 37 | 0~1450 | 450 | 1200 | 1.5 |
| KFS-D-45 | ≤2000 | 45 | 0~1450 | 500 | 1300 | 2.2 |
| KFS-D-55 | ≤2500 | 55 | 0~1450 | 550 | 1500 | 2.2 |
| KFS-D-75 | ≤3000 | 75 | 0~1450 | 600 | 1600 | 2.2 |
| KFS-D-90 | ≤4000 | 90 | 0~1450 | 650 | 1700 | 3 |
| KFS-D-110 | ≤5000 | 110 | 0~1450 | 700 | 2000 | 3 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity,gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
Material viscosity: <=200,000 cps
Production Capacity: 50L~5,000L
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
