Category： Customizable Disperser
Model：KFS-F
Feature： Easy installation, good dispersion, and mounted on reactor/vessel

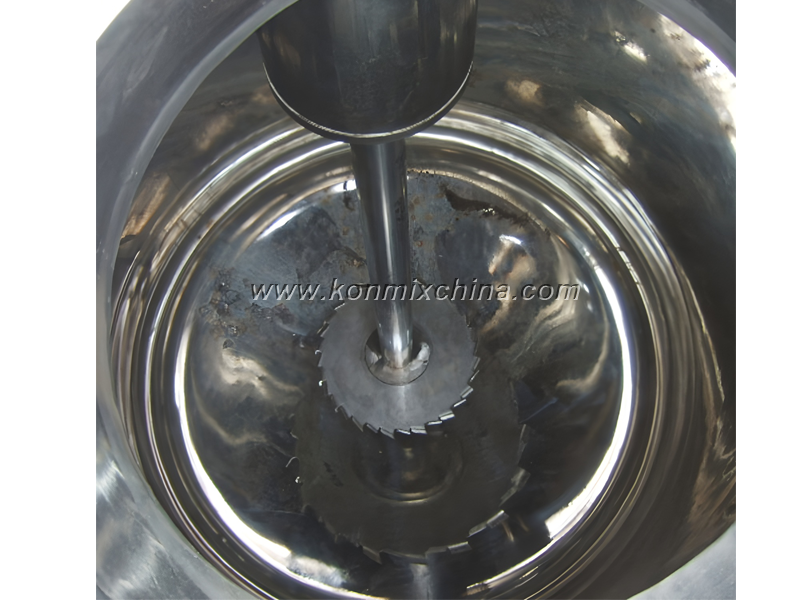

This disperser machine is mounted on vessel is fixed on reactor/kettle or stainless steel vessel.
Its application widely due to the good dispersing, mixing effect.
Vessel using type disperser/dissolver is suitable for different viscous products.

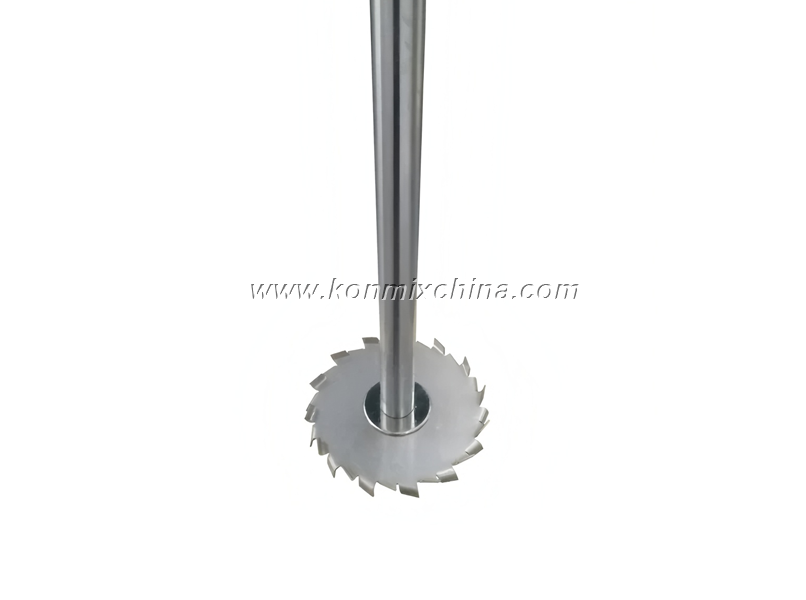

The mixture is sufficiently dispersed through the high-speed rotating blade, without any dead-spot.
• It is to dissolve, disperse and mix materials with different viscosity.
• Through the high peripheral tip speed of blade, the strong shearing, crashing and friction forces is generated.
• This model will disperse, dissolve and mix the materials efficiently.
• The large stress forces from blade will break down any agglomerates into the liquid.
• Speed control: with frequency inverter to realize various speed control.
The dispersion blade rotates towards a fixed direction driven by the power unit. during the rotation, it drives materials to rotate radially and axially.
Materials inside the reactor are in both axial and circular motion, generating several forms of mixing such as shearing mixing and diffusion stirring. Thus the material can be effectively rapidly stirred and mixed.
Dispersing disc rotates in high speed, generating annular flow, resulting in strong vortex, thus the materials spirally down to the bottom. Strong shearing and friction force between particles get the mixture rapidly dispersed and dissolved. The circular motion of the stirring disc generates good radial effect, accelerating material circulation, improve the dispersing efficiency.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Disc dia(mm) | Vessel dia.(mm) |
| KFS-F-2.2 | ≤100 | 2.2 | 0~1450 | 150 | 500 |
| KFS-F-4 | ≤200 | 4 | 0~1450 | 200 | 600 |
| KFS-F-7.5 | ≤300 | 7.5 | 0~1450 | 250 | 800 |
| KFS-F-11 | ≤400 | 11 | 0~1450 | 300 | 800 |
| KFS-F-15 | ≤500 | 15 | 0~1450 | 300 | 900 |
| KFS-F-22 | ≤1000 | 22 | 0~1450 | 350 | 1000 |
| KFS-F-30 | ≤1200 | 30 | 0~1450 | 400 | 1100 |
| KFS-F-37 | ≤1500 | 37 | 0~1450 | 450 | 1200 |
| KFS-F-45 | ≤2000 | 45 | 0~1450 | 500 | 1400 |
| KFS-F-55 | ≤2500 | 55 | 0~1450 | 550 | 1600 |
| KFS-F-75 | ≤3000 | 75 | 0~1450 | 600 | 1700 |
| KFS-F-90 | ≤4000 | 90 | 0~1200 | 650 | 1800 |
| KFS-F-110 | ≤5000 | 110 | 0~1200 | 700 | 2000 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity,gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
Material viscosity: <=100,000 cps
Production Capacity: 0L~10,000L
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder, etc.
