Category： Customizable Disperser
Model：KFS-M
Feature： One disperser is mounted with multi-vessels, with big capacity, easy installation & operation

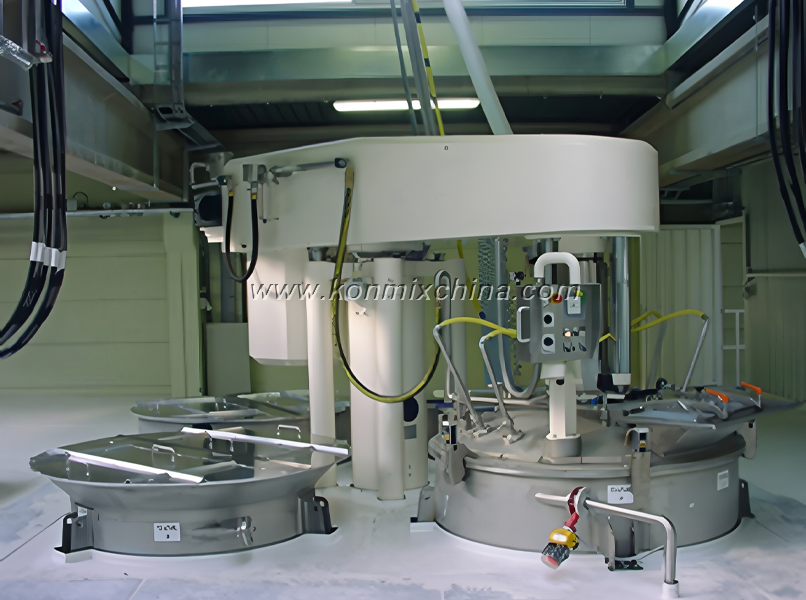

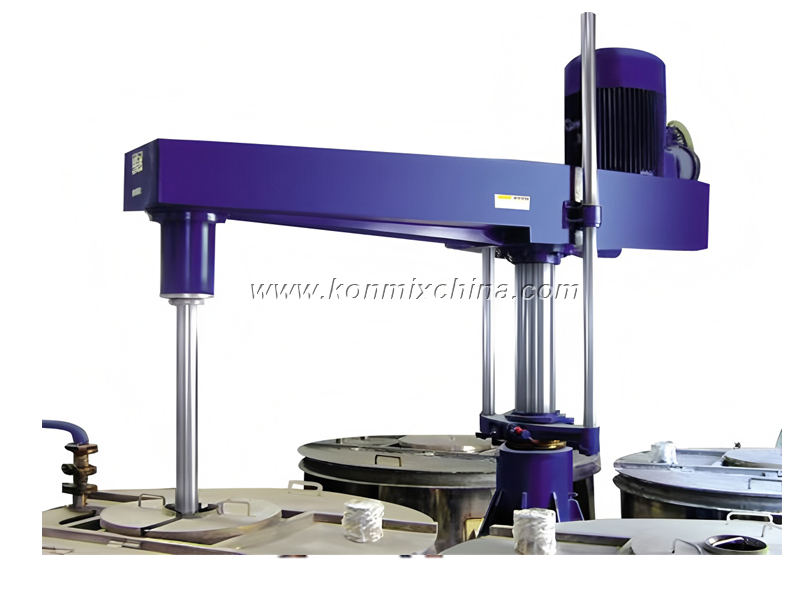

This platform disperser is mounted with a few Tanks, also called " disperser mixer mounted vessel "
With electric or manual rotation function to remove workhead.
This device greatly improves batch capacity, reduces investment costs, save space.

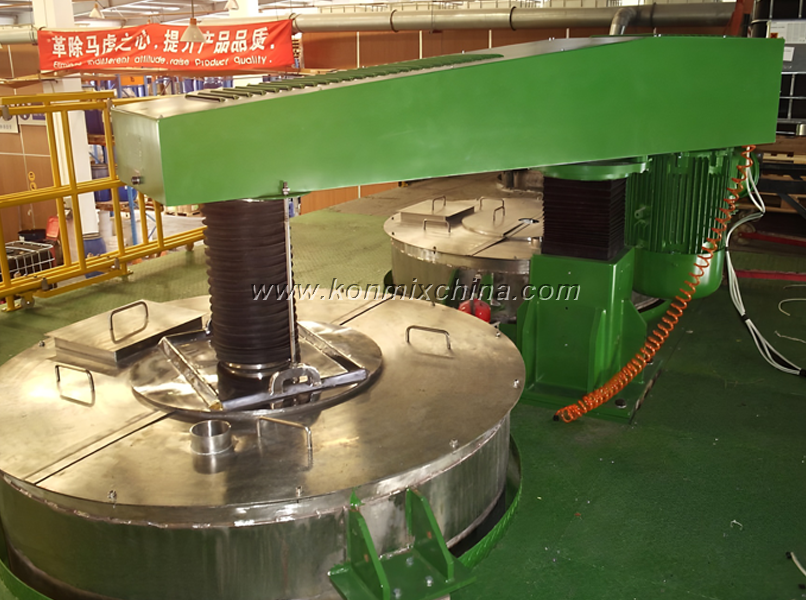

It can design as platform-type (tanks and machine put on platform) or floor-type.
• The working style is one disperser/mixer work with two or more tanks.
• This model has high production cabacity.
• Motor: Siemens, ABB, flameproof type is optional.
• Power: from 1.5KW to 160KW.
• Power Supply: 380V/50HZ, 3P (voltage can be customized ).
• Capacity: 50~12000L
• Speed control: with frequency inverter to realize various speed control.

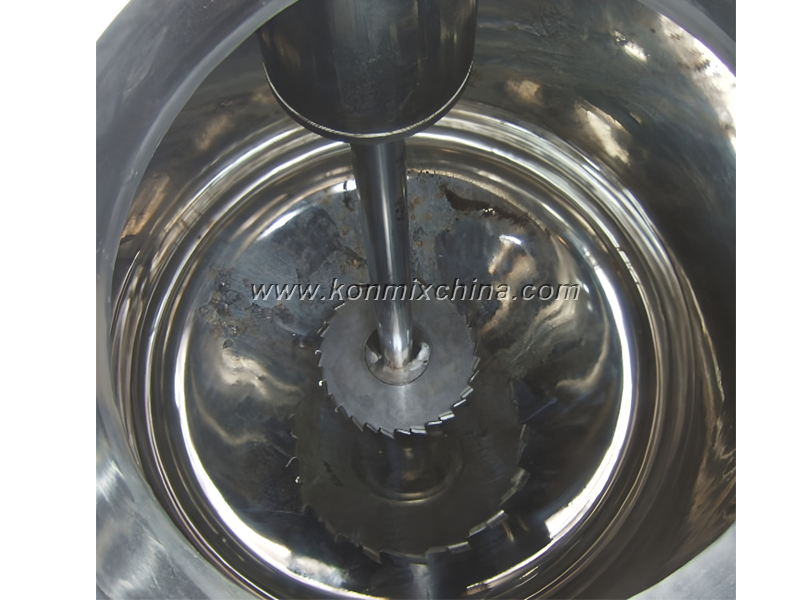

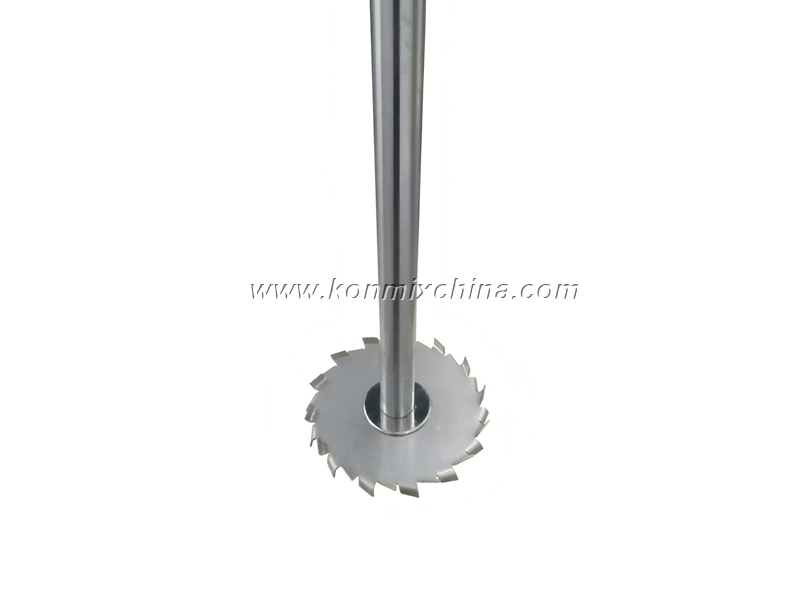

Through the high speed of the dispersing disk, the material presented as annular flow results in a strong vortex, which is spiraling downward to the bottom of the vortex. Strong shear collision and friction between particles achieves the function of rapid dispersion, dissolving, mixing and emulsifying.
Through the hydraulic pump driving hydraulic cylinder lifting up, then the top crossbeam can more different corner, then disperser machine can work with two or more vessels at a platform.
| Model | Capacity (L) | Power (kw) | Speed (rpm) | Disc diameter (mm) |
| KFS-M-11 | ≤500 | 11 | 0~1450 | 250 |
| KFS-M-15 | ≤800 | 15 | 0~1450 | 300 |
| KFS-M-22 | ≤1000 | 22 | 0~1450 | 350 |
| KFS-M-30 | ≤1500 | 30 | 0~1450 | 400 |
| KFS-M-37 | ≤1800 | 37 | 0~1450 | 450 |
| KFS-M-45 | ≤2500 | 45 | 0~1450 | 450 |
| KFS-M-55 | ≤3000 | 55 | 0~1450 | 500 |
| KFS-M-75 | ≤4000 | 75 | 0~1450 | 550 |
| KFS-M-90 | ≤5000 | 90 | 0~1450 | 600 |
| KFS-M-110 | ≤8000 | 110 | 0~1450 | 700 |
Remarks:
*The above listed max. capacity is calculated according to water as medium.Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
*Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
Material viscosity: <=50,000 cps
Production Capacity: 1000L-12,000L
Applied materials: suitable for liquid or liquid-phase's high-speed stirring, dissolving and scattering in the field of coating, paint, dye, ink, biology, pharmacy, cosmetics, resin, adhesive, latex, pigment, pharmaceutical, oil, fertilizer, colors, etc.
