Tri-Roll Mills (Popular using model)_Three Roll Mills_Professional mixing,emulsification,homogenization,dispersion,mills and agitator equipment manufacturer

This Triple Roller Mill is widely used in high viscosity materials grinding process.

Its 3-rollers squeeze materials by different speed so as to get good result.

Machine'surface is coated anti-solvent paint which is shining and prevent any possible corrosion.

•  Rollers'  material: alloy steel or pottery materials.

•  Our this model adopts newest chain wheels transmission system.

•  All gears are dipped in lubricant which will prolong the machine life and reduce noise.

•  Traditional adjustment has changed to the gear adjusting which is more stable.

•  Water temperature indicator can be set in both inlet and outlet to keep stable temperature.

•  The cooling water's cycling system can be available as customer's request.

•  The roller's heating system can be made same as user's need.

The rollers are mounted on an iron frame, who's center is on the line.

Horizontal or slightly inclined installation is acceptable. It gets the effect of grinding through the surface of the horizontal three rollers squeezing each other and the friction at different speeds.

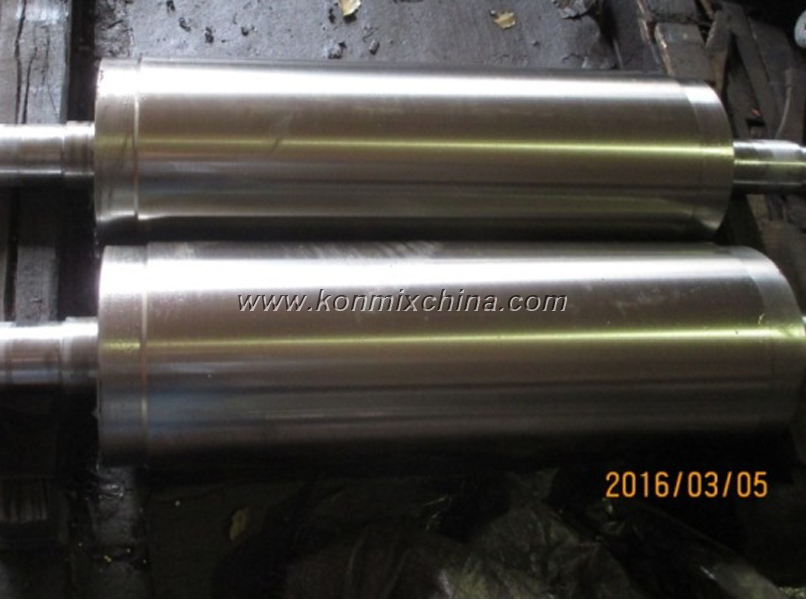

The steel drum can be hollow. The material is added between the middle and back rolls.

Because the rotation direction of the three drums is different (the speed increases from the back forward), this produces a good grinding effect.

The material was scraped off by a scraper which is put in front of the preliminary roller.

Generally, the tri-roll mill is made of cold hard alloy-steel, and the surface hardness reaches above HS70°.

This machine is suitable to do the materials of viscosity up to 3,000,000 cps.

Production capacity:  for lab trials and industrial production process.

It is mainly used for the grinding of various kinds of paints, inks, pigments, plastics, cosmetics, chocolate, soap, ceramics, food, rubber and other liquid and paste materials.
