Category： Industrial Three Roll Mill
Model：KM-S Series
Feature： With three rollers, mainly used for high viscosity materials grinding, rollers are made of wear-resistant alloy steel.
This Three Roll Mill is also called - Triple Roll Mills, which is widely used in high viscosity materials grinding process.
Its 3-rollers will squeeze the materials by different rotation speed, so that will get good grinding particles.

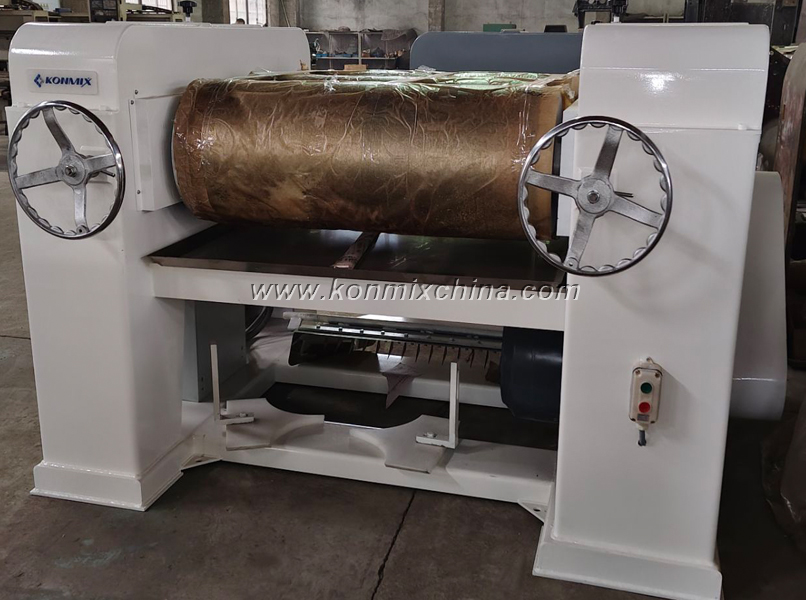

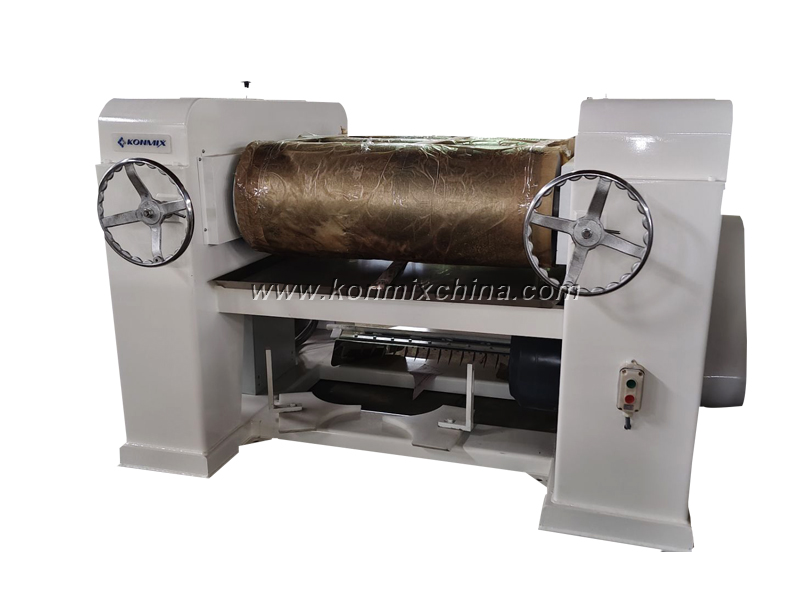

There're operating-handles for adjustment the gaps between three rollers.
The machine's surface is coated anti-solvent paint which is shining and prevent any possible corrosion.
• Rollers' material: alloy stainless steel, stone or pottery.
• This model adopts newest chain wheel transmission system.
• All gears are dipped in lubricant which will prolong the machine life.
• Machine's working noise is very low.
• Traditional adjustment has changed to the gear adjusting which is more stable.
• Water temperature indicator can be set in both inlet and outlet to keep stable temperature & good quality.

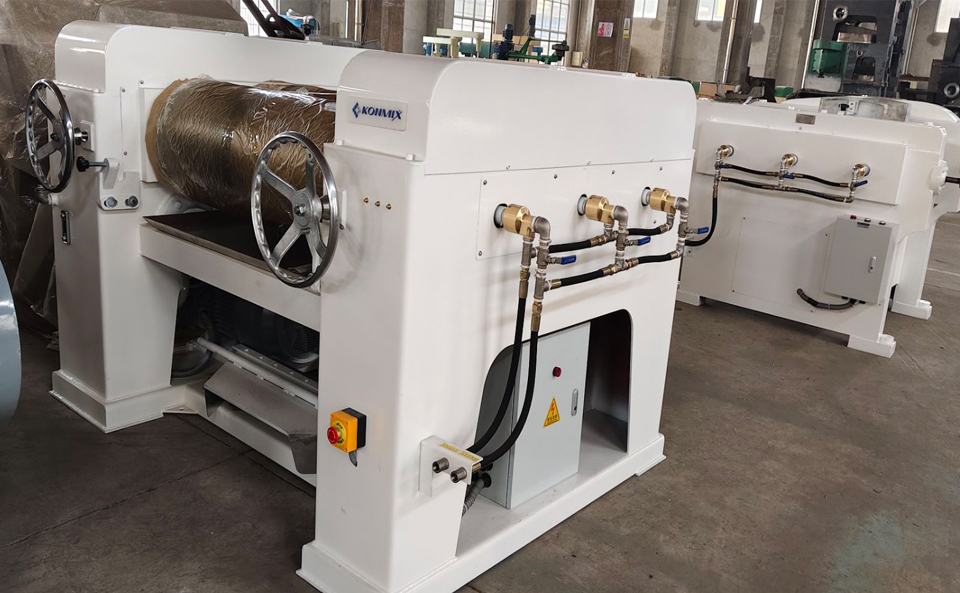

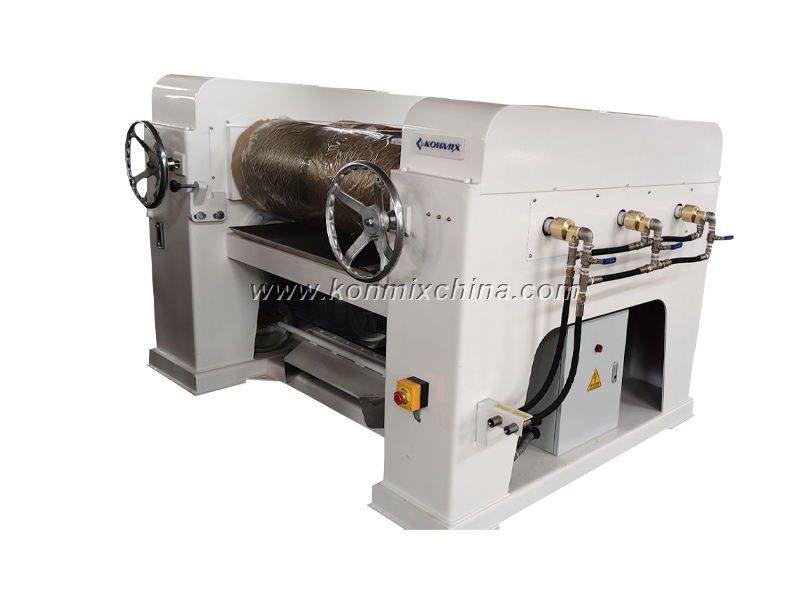

• The cooling water cycling system and roller heating system can be available as customer request.
The rollers are mounted on an iron frame, who's center is on the line.
Horizontal or slightly inclined installation is acceptable. It gets the effect of grinding through the surface of the horizontal three rollers squeezing each other and the friction at different speeds.
The steel drum can be hollow. The material is added between the middle and back rolls. Because the rotation direction of the three drums is different (the speed increases from the back forward), this produces a good grinding effect.

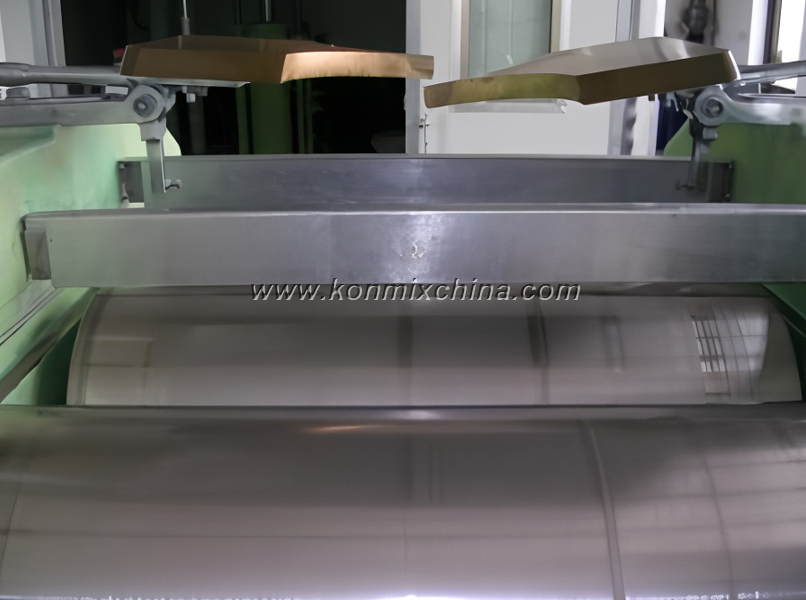

The material was scraped off by a scraper which is put in front of the preliminary roller.

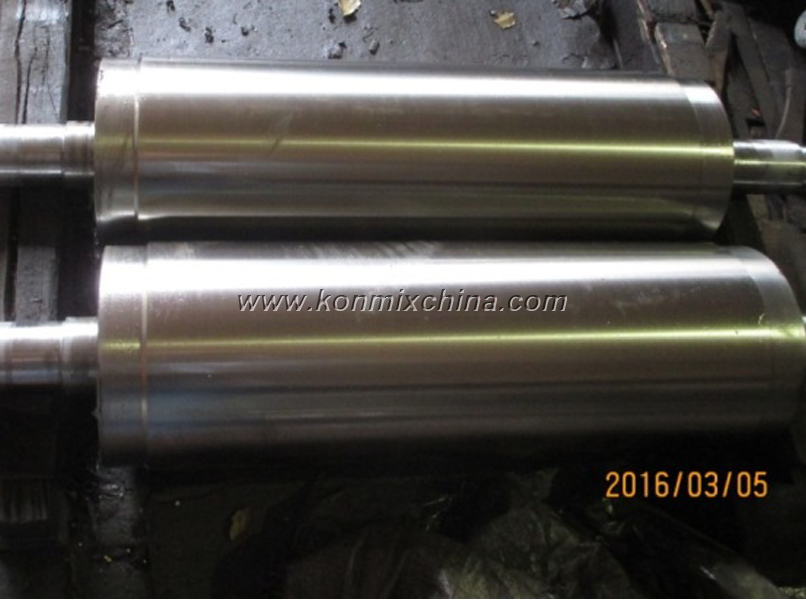

Generally, the three roll mills is made of cold hard alloy cast iron.
The surface of roller's hardness is up to Shore HS70° .
2. Roller's dia. 405mm, and length with 810mm, 1000mm & 1300mm
3. Voltage: 380V, 50HZ, 3Phase or customized
4. Rollers' material: alloy stainless steel/pottery

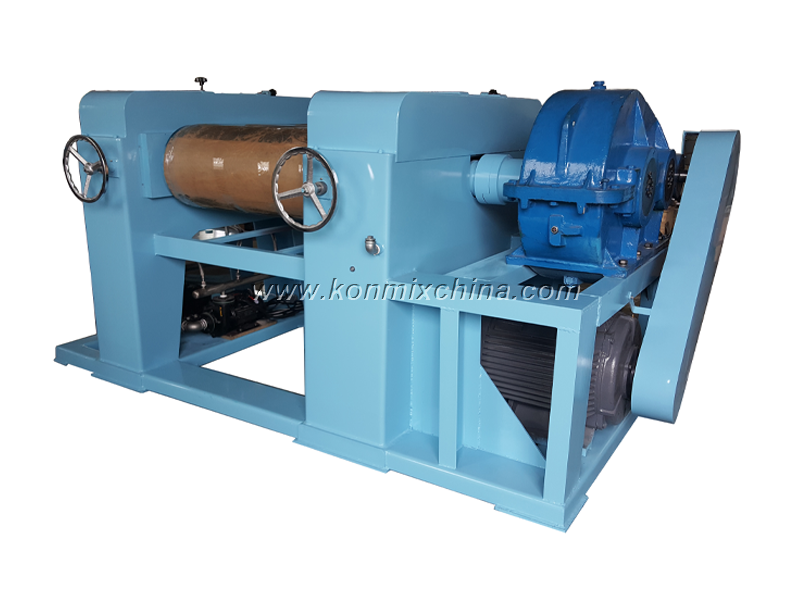

5. Transmission ways: by gears
6. Accessory: with scraping knife
| Model | Power(kw) | Roller dia.(mm) | Roller length(mm) | Slow-roller speed(rpm) | Mid-roller speed(rpm) | Fast-roller speed |
| KM-S100 | 1.5 | 100 | 200 | 28 | 66 | 152 |
| KM-S150 | 2.2 | 150 | 300 | 28 | 66 | 152 |
| KM-S200 | 4 | 200 | 500 | 19 | 55 | 155 |
| KM-S260 | 7.5 | 260 | 695 | 19 | 55 | 155 |
| KM-S315 | 11 | 315 | 760 | 19 | 55 | 155 |
| KM-S405 | 15 | 405 | 810 | 15 | 45 | 135 |
| KM-S405(I) | 22 | 405 | 1000 | 15 | 45 | 135 |
| KM-S405(II) | 30 | 405 | 1300 | 15 | 45 | 135 |
This machine is suitable to do the materials of viscosity up to 1,000,000 cps.
Production capacity: for lab trials and industrial production process.
It is mainly used for the grinding of various kinds of paints, inks, pigments, plastics, cosmetics, chocolate, soap, ceramics, food, rubber and other liquid and paste materials.
