Category： Three Roll Mills
Model：KM-SH Series
Feature： With strong driving power, widely applied in high viscosity and hardness materials including pencil core, slice-material, silicon rubber & pastes.

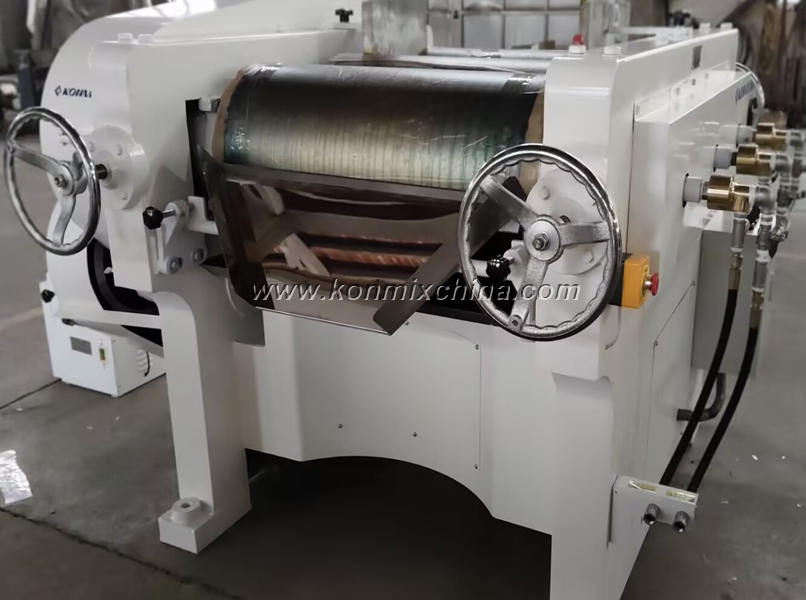

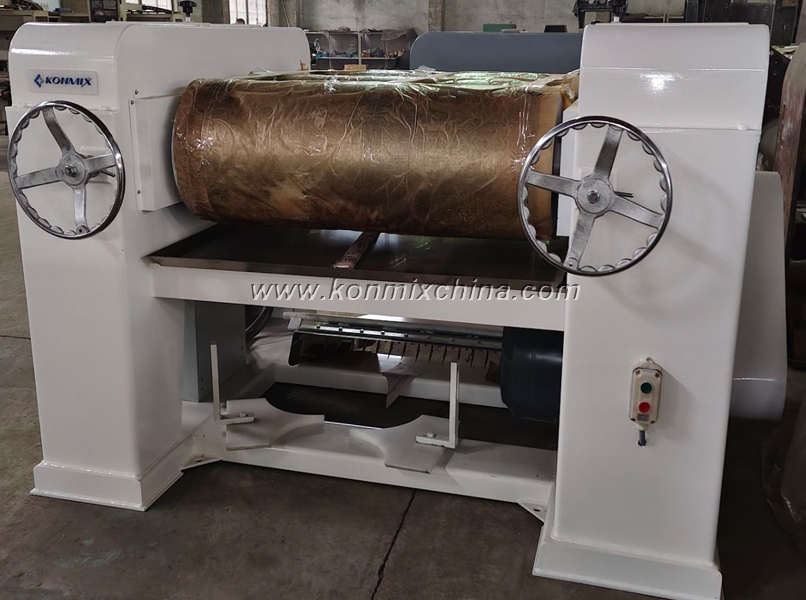

This Heavy-duty Three Roller Mill is widely used in high viscosity materials grinding process.
Its 3-rollers squeeze materials by different speed so as to get good result.
This heavy-duty three roll mill configures with strong driving power system.
This machine is good at grinding high viscosity & solid slice material.
With large production output ability.
• With different capacity models for optional.
• Voltage: 380V or 415V, 50HZ, 3P (voltage can be customized).
• Variable materials' fineness can be available by adjust roller's gap.
• Whole machine's operation is controlled by control panel.

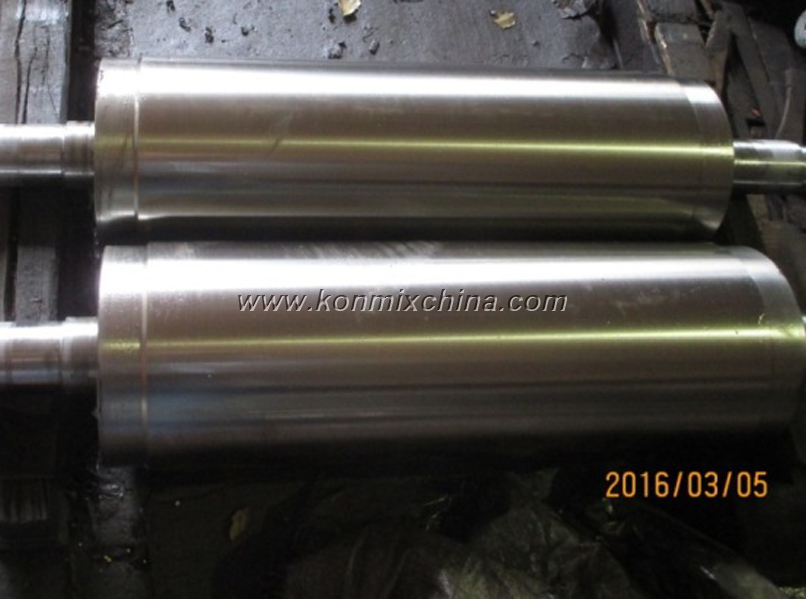

• Rollers are made of special alloy material casting with high strength and anti-abrade.
• Transmission ways: by gears.
• Accessory: with scraping knife.
• This model is easy to operate.
Each of the three roller is equipped with an individually adjustable high-efficiency cooling system.
Automatic, precise control ensures constant roll temperatures and thereby uniform, reproducible operating conditions.
The cooling water supply is automatically stopped when the machine is not running.
This prevents undesirable cooling of the rolls and unnecessary water consumption.
With strong driving power, especially for silicon rubber, pencil core, reflex blue paste and so on.
| Model | Power(kw) | Roller dia.(mm) | Roller length(mm) | Slow speed(rpm) | Middle speed(rpm) | High speed(rpm) |
| KM-SH260 | 15 | 260 | 695 | 11 | 33 | 99 |
| KM-SH400 | 37 | 400 | 900 | 11 | 33 | 99 |
| KM-SH400(II) | 55 | 400 | 1050 | 11 | 33 | 99 |
| KM-SH400(III) | 75 | 400 | 1350 | 11 | 33 | 99 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc.Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com .
This machine is suitable to do the materials of viscosity up to 3,000,000 cps.
Production capacity: for industrial production process.
It is mainly used for high viscosity and high hardness material. Especially for silicon rubber, pencil core, slice solid materials, reflex blue paste and so on.
