Category： Planetary mixer & Extruder
Model：KYJ Series
Feature： For high viscous materials discharging, with customized design of different function. Match to work with different size tanks

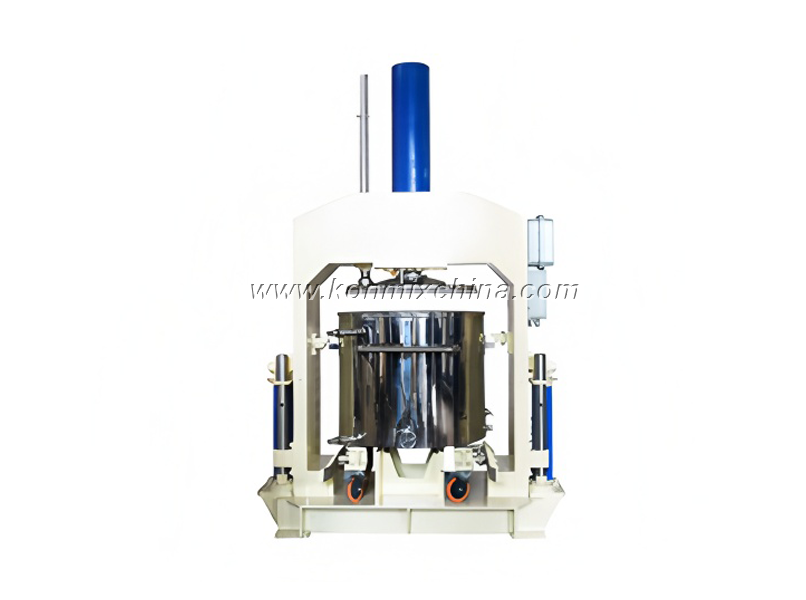

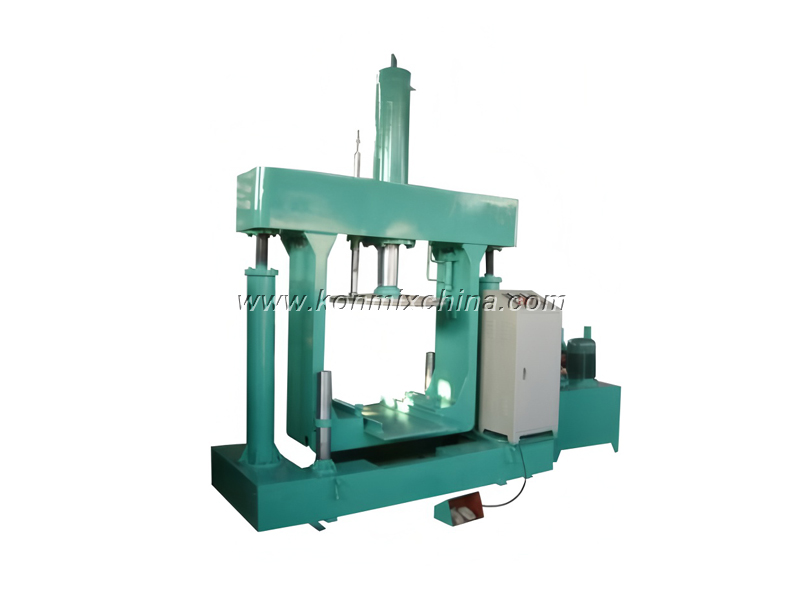

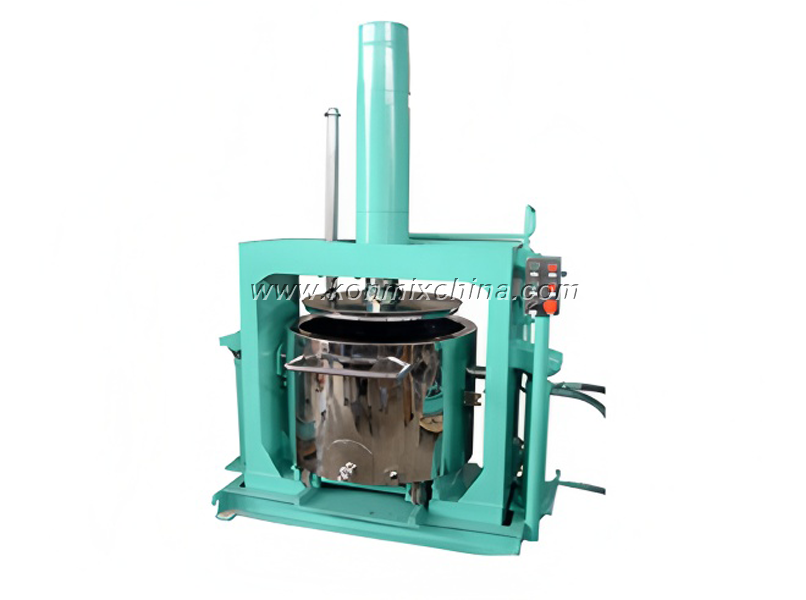

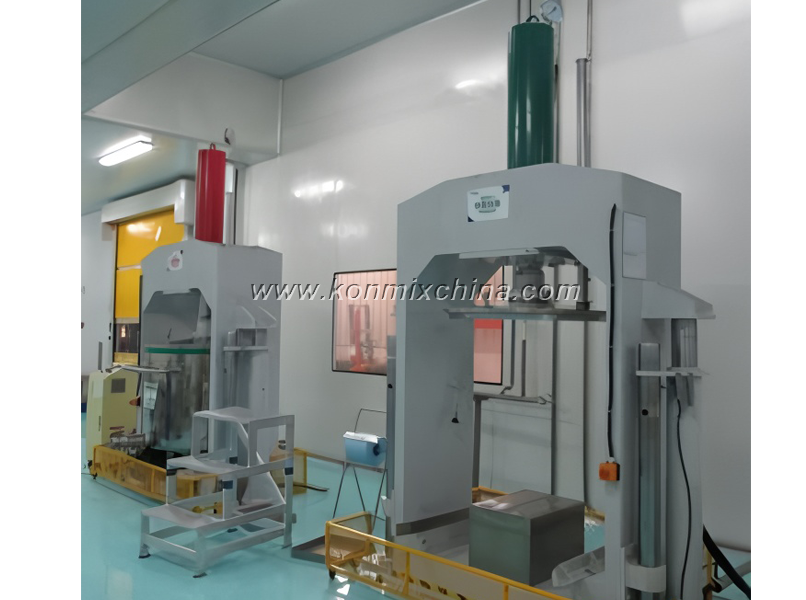

This Pressing Machine is also called - extruder machine, which is designed for the discharging of high viscosity materials.
This machine is consisted of standing base, hydraulic system, cylinder, disk and control panel.
It has cylinder pressure form for the high-viscosity materials ischarging or packaging. And also for packaging barrels to take out the material; structural form of a single-cylinder type and three-cylinder type, generally hydraulic drive, less pneumatic drive, which will be able to barrels of adhesives, inks, resins, and other high-viscosity materials through the pressure plate pressure to the material from the pressure plate or the outlet at the bottom of the barrel to the pipeline to achieve the purpose of discharging.
• This machine can work as a general pressing feeder.
• We have a special design for cartridge bucket filling,and materials without leakage.
• It can work under pressure maintaining and stable pressure condition.
• The disk ring contacts with vessel's inner wall which will stop materials flowing back.
• This model discharges without any remains.
• Support stand is lifted up by hydraulic cylinder,and with operation control panel.
With the hydraulic discharging system to press materials.
The hydraulic cylinder can be adjusted within the pressure range of 0-20MPa at all levels, the piston rod can stay at any position, and can work continuously under pressure preservation and stabilization; the pressure plate rubber ring in contact with the barrel wall of the container (can be equipped with vacuum defoaming device), so that the material does not return to the outside, and the material in the container can be discharged without residues.
| Model | Tank volume(L) | Hydraulic power(kw) | Motor speed(rpm) | Pressing plate(mm) | Lifting stroke(mm) | Plate pressure(ton) |
| KYJ-30 | 40 | 2.2 | 1450 | 400 | 400 | 15 |
| KYJ-50 | 65 | 3 | 1450 | 460 | 500 | 15 |
| KYJ-60 | 80 | 3 | 1450 | 550 | 600 | 20 |
| KYJ-100 | 150 | 4 | 1450 | 600 | 700 | 25 |
| KYJ-200 | 250 | 4 | 1450 | 750 | 750 | 30 |
| KYJ-300 | 360 | 5.5 | 1450 | 850 | 800 | 40 |
| KYJ-500 | 600 | 7.5 | 1450 | 1000 | 950 | 65 |
| KYJ-800 | 900 | 7.5 | 1450 | 1200 | 1050 | 80 |
| KYJ-1000 | 1100 | 11 | 1450 | 1250 | 1200 | 100 |
| KYJ-1200 | 1400 | 15 | 1450 | 1300 | 1300 | 110 |
| KYJ-1500 | 1800 | 15 | 1450 | 1400 | 1400 | 120 |
This machine is suitable to do the high viscosity materials discharging.
Production capacity: this model often use for lab trials and industrial production.
Applied materials: suitable for many kinds of vicious chemical products, such as paint and coatings, putty, adhesives, agrochemicals, inks, putty, silicones, glues, sealants, pastes, dental, --- etc.
