Category： Batch Homogenizer/emulsifier
Model：KRH-B
Feature： High-shear Emulsifier, fixed on top of vessel, homogenizing workhead immerges into materials for mixing
This bottom type high-shear homogenizerne has precised rotor & stator workhead.
The high linear velocity and strong kinetic energy put the materials under comprehensive action.
This model usually installs on reactor, vessel or tank's bottom.
This model has the mechanical seals for shaft sealins, without any leakage.
The rotation speed is variable rpm, user can control & adjust running freely.
• Whole machine is mounted on kettle, reactor or tank's top.
• The emulsifying rotor/stator workhead immerges into materials to work.

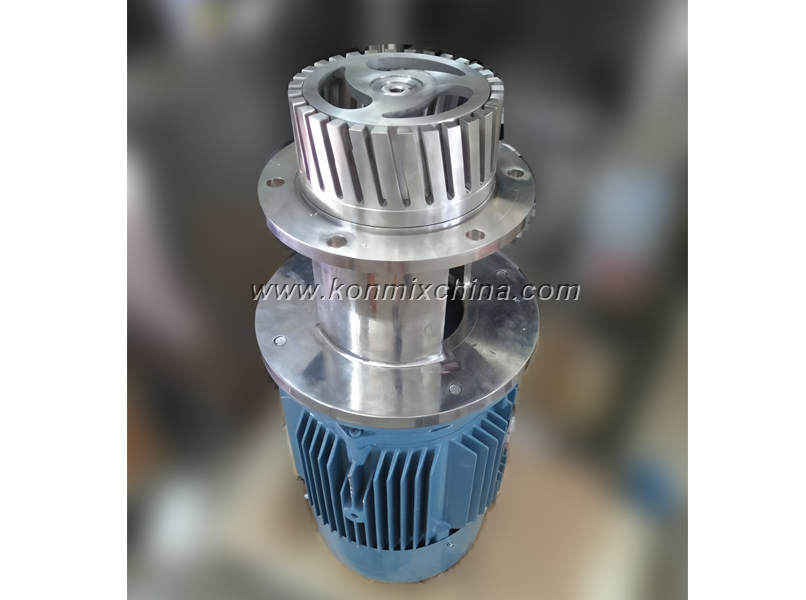

• Claw shaped workhead with double-direction suction.
• All contacting parts are made of stainless-steel.
• Workhead has good gap fitness and high tip speed ensure excellent emulsifying and homogenizing.
• All components are processed by the CNC machine.
• Whole machine is easy to operate.
• This model is widely applicable for industrial production.

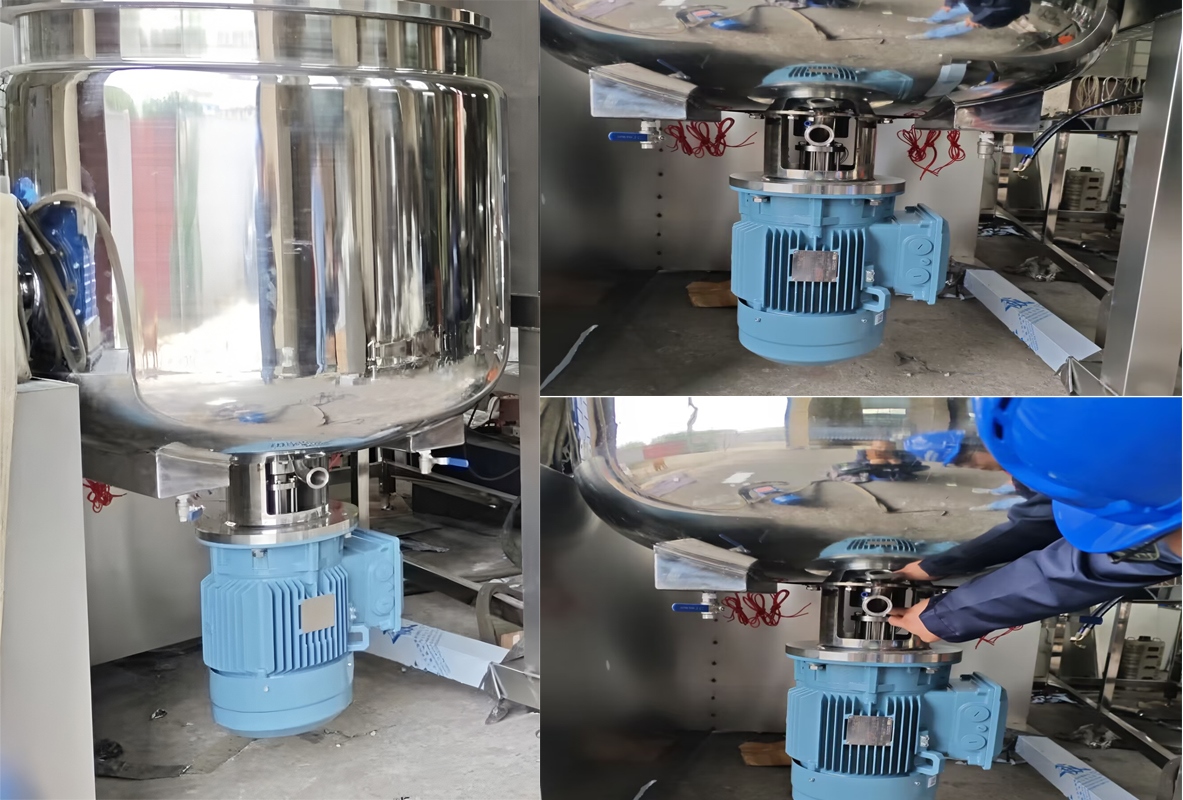

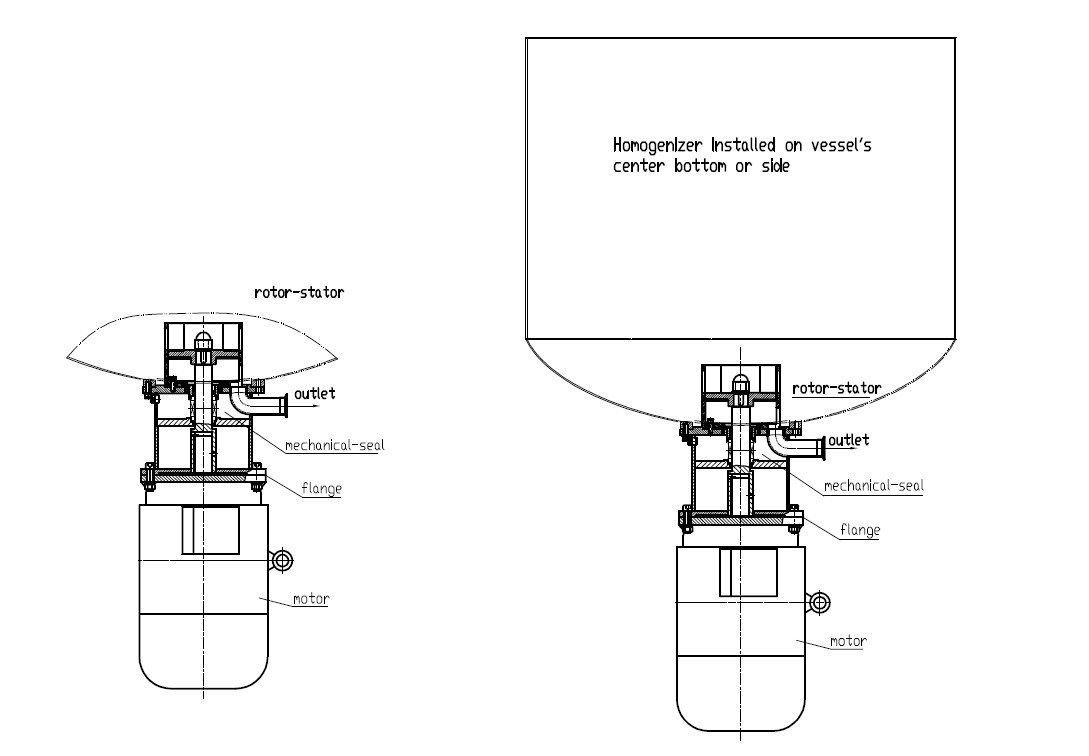

This type homogenizer equipment is installed on the center of vessel's bottom or side.
It is consisted of rotor and stator workheads. Under the centrifugal force and hydraulic force generated by the high-speed rotor, the stator will put materials under comprehensive action such as strong shearing, centrifugal extrusion, crashing, hydraulic friction etc.
And the solid phase, liquid phase and gas phase which is insoluble at beginning will prompt evenly dispersed and emulsified with various additives.
After high-frequency circulation, stable materials with high quality are obtained in a short time.
This type high-shear homogenizer usually install on the bottom or side of vessel, pot & reactor.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Vessel volume(L) |
| KRH-B-1.1 | ≤200 | 1.1 | 0~2900 | 200 |
| KRH-B-2.2 | ≤300 | 2.2 | 0~3000 | 300 |
| KRH-B-4 | ≤400 | 4 | 0~3000 | 400 |
| KRH-B-11 | ≤800 | 11 | 0~3000 | 800 |
| KRH-B-15 | ≤1000 | 15 | 0~1450 | 1000 |
| KRH-B-22 | ≤2000 | 22 | 0~1450 | 2000 |
| KRH-B-30 | ≤2500 | 30 | 0~1450 | 2500 |
| KRH-B-37 | ≤3000 | 37 | 0~1450 | 3000 |
| KRH-B-45 | ≤4000 | 45 | 0~1450 | 4000 |
| KRH-B-55 | ≤5000 | 55 | 0~1450 | 5000 |
| KRH-B-75 | ≤6000 | 75 | 0~1450 | 6000 |
| KRH-B-90 | ≤7000 | 90 | 0~1450 | 7000 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
Suitable to do the materials of viscosity up to 100,000 cps
Production Capacity: 0~10,000L
Applied materials: Suitable for industrial coatings, general printing inks, paint, and general pigment dispersions, cosmetic, cream, shampoo, calcium carbonate powder, liquids agrochemicals etc.
