Category： Batch Homogenizer/emulsifier
Model：KRH-F
Feature： High-shear Emulsifier, fixed on top of vessel, homogenizing workhead immerges into materials for mixing
With high shearing rotor & stator workhead.
The high linear velocity and strong kinetic energy put the materials under comprehensive action.
With strong shearing, centrifugal extrusion, and mixing effect.
The solid-phase, liquid-phase and gas-phase will promptly dispersed and homogenized.
After circulation work, high quality materials are obtained in short time.

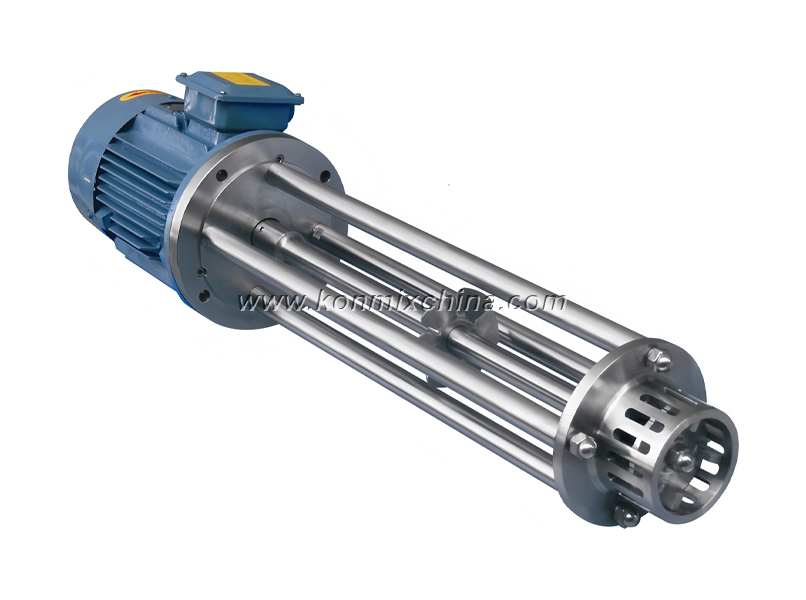

• Whole machine is mounted on kettle, reactor or tank's top.
• The emulsifying rotor/stator workhead immerges into materials to work.
• Claw shaped workhead with double-direction suction.
• All contacting parts are made of stainless-steel.
• Workhead has good gap fitness and high tip speed ensure excellent emulsifying and homogenizing.
• All components are processed by the CNC machine.
• Whole machine is easy to operate.
• This model is widely applicable for industrial production.

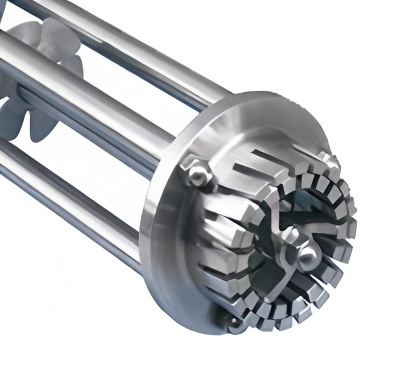

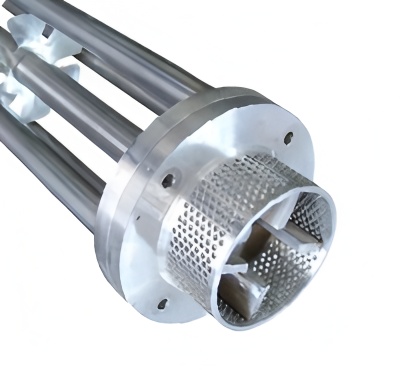

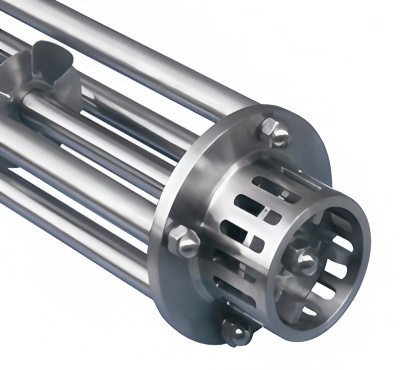

Sawtooth type Large Round hole type Screen hole type
For fine emulsions For high viscous products For middle or low viscosity

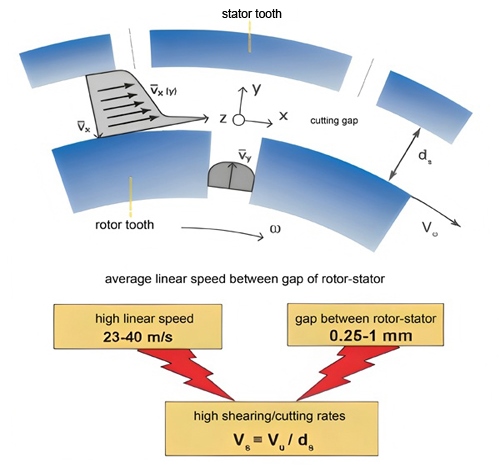

It is consisted of rotor and stator. Under the centrifugal force and hydraulic force generated by the high-speed rotor, the stator will put materials under comprehensive action such as strong shearing, centrifugal extrusion, crashing, hydraulic friction etc.
And the solid phase, liquid phase and gas phase which is insoluble at beginning will prompt evenly dispersed and emulsified with various additives.
After high-frequency circulation, stable materials with high quality are obtained in a short time.

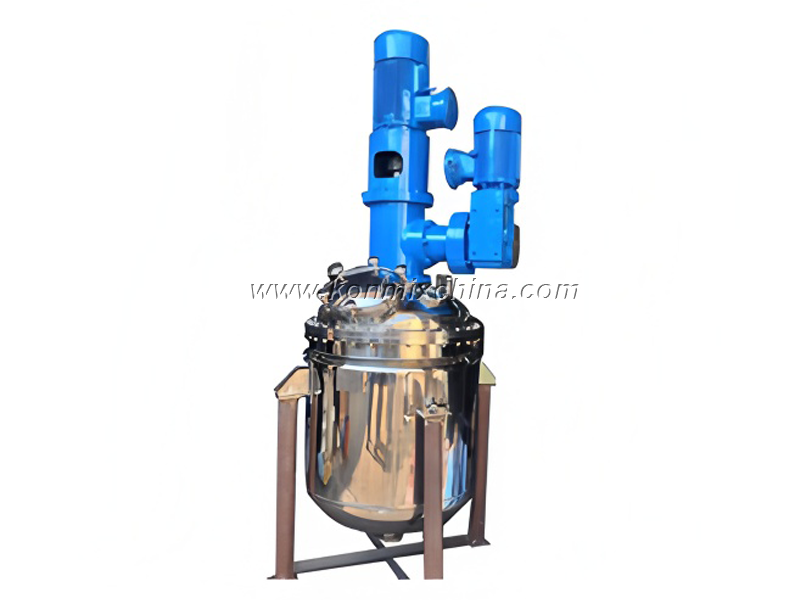

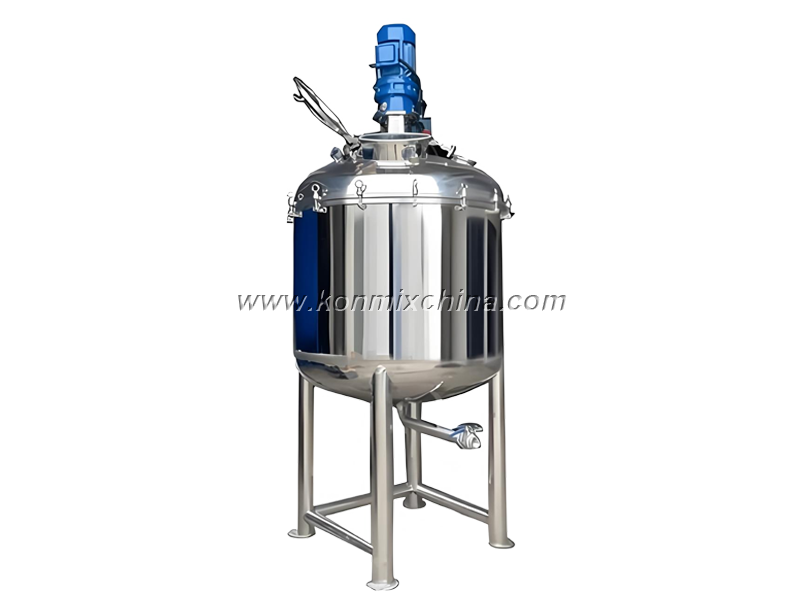

The high shear emulsifying mixer will be installed on the top of a vessel, pot, reactor or tank.
With different volume scale for selection.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Vessel volume(L) |
| KRH-F-1.1 | ≤200 | 1.1 | 0~2900 | 200 |
| KRH-F-2.2 | ≤300 | 2.2 | 0~3000 | 300 |
| KRH-F-4 | ≤400 | 4 | 0~3000 | 400 |
| KRH-F-11 | ≤800 | 11 | 0~3000 | 800 |
| KRH-F-15 | ≤1000 | 15 | 0~1450 | 1000 |
| KRH-F-22 | ≤2000 | 22 | 0~1450 | 2000 |
| KRH-F-30 | ≤2500 | 30 | 0~1450 | 2500 |
| KRH-F-37 | ≤3000 | 37 | 0~1450 | 3000 |
| KRH-F-45 | ≤4000 | 45 | 0~1450 | 4000 |
| KRH-F-55 | ≤5000 | 55 | 0~1450 | 5000 |
| KRH-F-75 | ≤6000 | 75 | 0~1450 | 6000 |
| KRH-F-90 | ≤7000 | 90 | 0~1450 | 7000 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com.
Suitable to do the materials of viscosity up to 100,000 cps
Production Capacity: 0~10,000L
Applied materials: Suitable for industrial coatings, general printing inks, paint, and general pigment dispersions, cosmetic, cream, shampoo, calcium carbonate powder, liquids agrochemicals etc.
