Category： Powder mixer
Model：KLDG
Feature： Materials in the chamber are in a state of weightlessness, with strong mixing force and can realize rapid mixing at short time

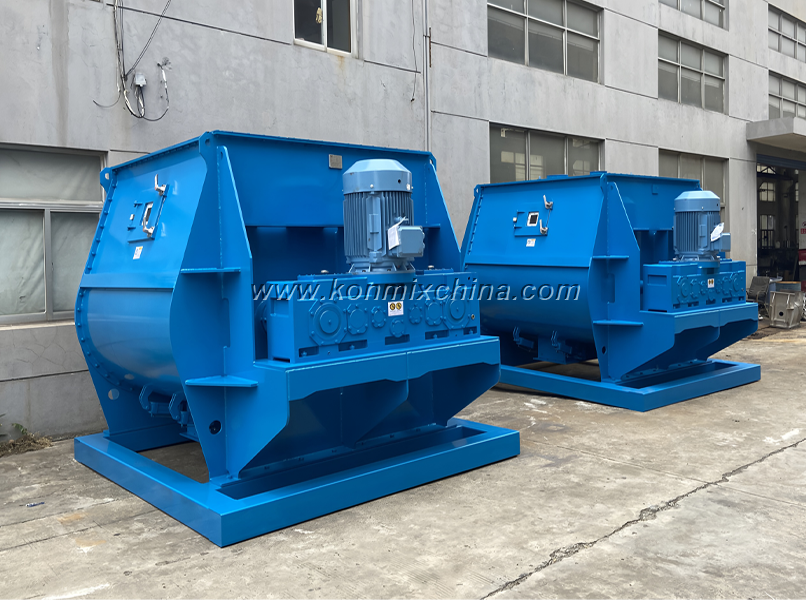

This mixer/blender has double paddle shafts. The double shafts run in counter-rotation to make paddles turn over the materials in axial and radial direction of mixing action in fluidized zone.
All the materials will be lifted in non-gravity status and also fall down to form a cross mixing.
It can get perfect homogeneous mixing in very short time and almost all the materials can be emptied through full bottom discharge valve.
Liquid Additions can also be sprayed at top of cover and mix with powder in short time.
For some heat sensitive and fragile material, this mixer mixer can fulfill perfect mixing result.
• By mechanical effect, materials in chamber are in state of weightlessness.
• With staggered convection & diffusion, achieves uniform mixing.
• The range of materials that is suitable for mixing is very large.
• The proportion of the difference in size and weight, mixed materials do not produce tin.
• Abrasion resistant and heavy duty design for some abrasive material.
• It is confined to operate, reliable to operate, and convenience to repair.

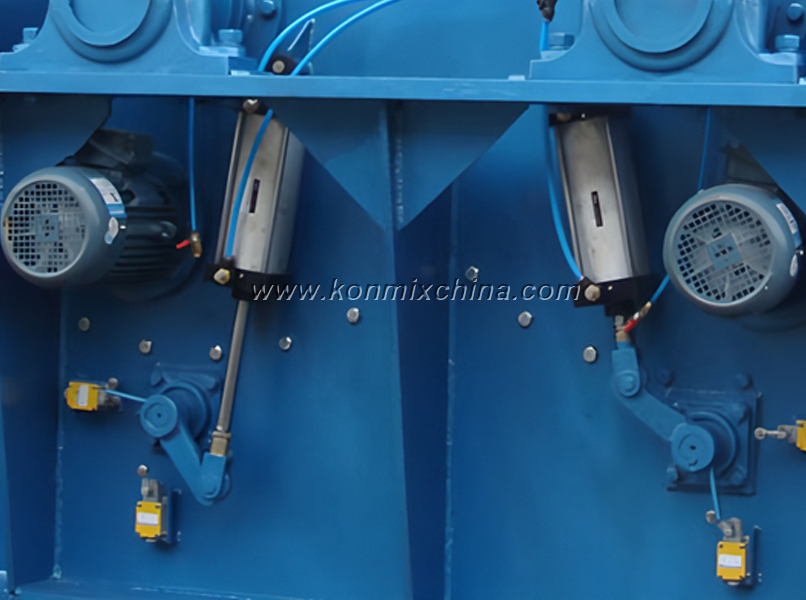

• There are manual, electric or pneumatic discharging valve for optional.
• Driving motor uses SIEMENS, ABB, SEW and etc international brands products.
• Output torque can be output by direct-combination, chain-wheel combination, hydraulic couplers and etc.

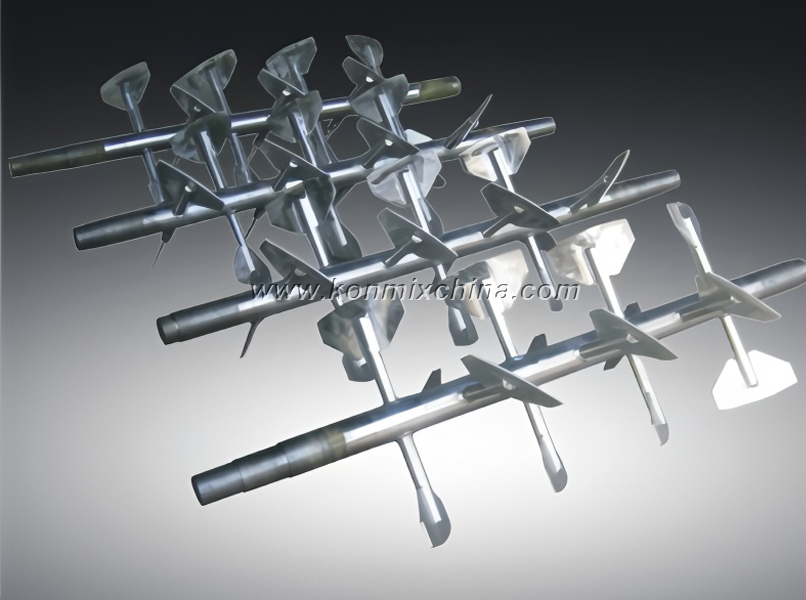

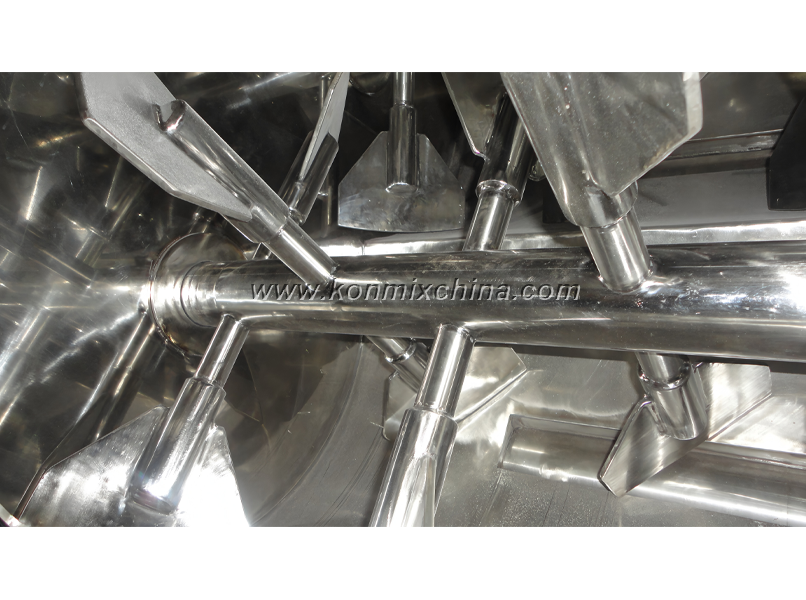

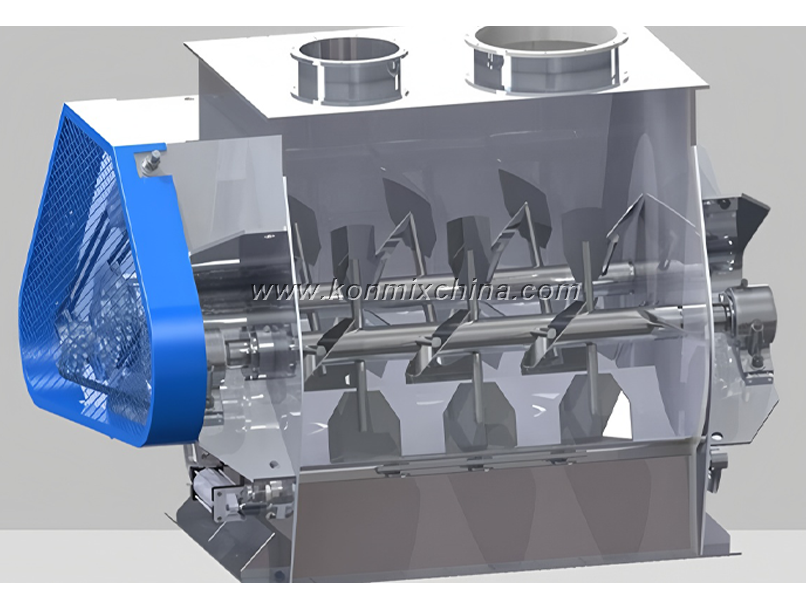

Non-gravity mixer equips two paddle mixing shafts which rotate in the opposite direction at the same time.
The driving device drives the propeller shaft to rotate quickly.
The rotating blades produce centrifugal force to effectively drop the material into the upper part of the chamber.
When the material reaches the highest point of the parabola (The highest point of a parabola is also known as the condition of instantaneous weightlessness), then it falls off.
Then the materials is driven away by the blade and reciprocating mixture in the chamber, to get the good mixings.
| Model | Main power(kw) | Speed(rpm) | Chamber Vol.(L) | Capacity(L) | Shape size(mm) | Weight(kg) |
| KLDG-0.5 | 7.5 | 60 | 500 | 150~400 | 1500*1500*1200 | 1100 |
| KLDG-1 | 15 | 60 | 1000 | 300~800 | 1750*1750*1500 | 1800 |
| KLDG-2 | 18.5 | 43 | 2000 | 600~1600 | 2150*2350*1750 | 2500 |
| KLDG-3 | 22 | 43 | 3000 | 900~2400 | 2350*2600*1800 | 3600 |
| KLDG-4 | 30 | 40 | 4000 | 1200~3200 | 2550*2850*2200 | 4500 |
| KLDG-5 | 37 | 40 | 5000 | 1500~4000 | 2800*2950*2450 | 5500 |
| KLDG-6 | 45 | 35 | 6000 | 1800~4800 | 2850*3000*2800 | 6500 |
KLDG-8 | 55 | 35 | 8000 | 2400~6400 | 2950*3350*2550 | 7800 |
KLDG-10 | 75 | 26 | 10000 | 3000~8000 | 3150*3600*2650 | 8500 |
KLDG-12 | 90 | 26 | 12000 | 3600~9600 | 3200*3800*2900 | 9800 |
Remarks:
* The above listed data is calculated according to powder's gravity of 1.0g/cm3 as medium. Model selection should depend on the
comprehensive factors, such as viscosity, mesh, gravity etc.
* If works under special environment, such as high temperature, high pressure, explosive, combustible, corrosive etc. Users need to provide
detailed data, in order to select and customize.
* Not all products' parameter are listed. For more information, please contact our sales engineer by info@konmixchina.com .
Materials' specific gravity: ≤5.0g/cm³
Production capacity: 0 ~ 15,000L
Application industry: suitable for the mixing of pharmacy, food, pesticide, dye, chemical industry, plastic, lithium battery, ceramic, chemical fertilizer,rubber, mortar and etc.
Applicable products: powders with fluidity whose specific gravity is up to 3g/cm³, such as: milk powder, food activities, organic chemical fertilizer, dry powder mortar, specific building materials, antiflame materials and etc.
