Category： Basket Mill
Model：KBM-C
Feature： With cover to match tank to avoid dust, materials splashing and volatilization of the solvents. Running speed is variable

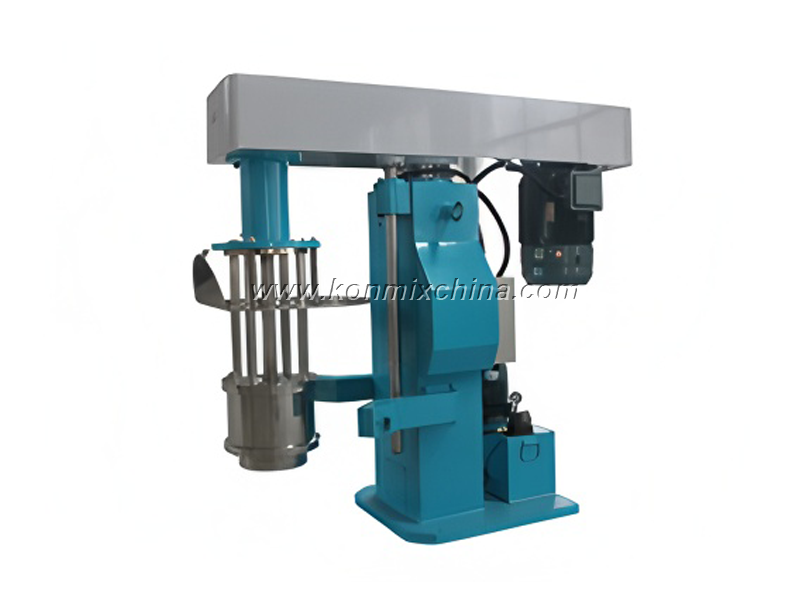

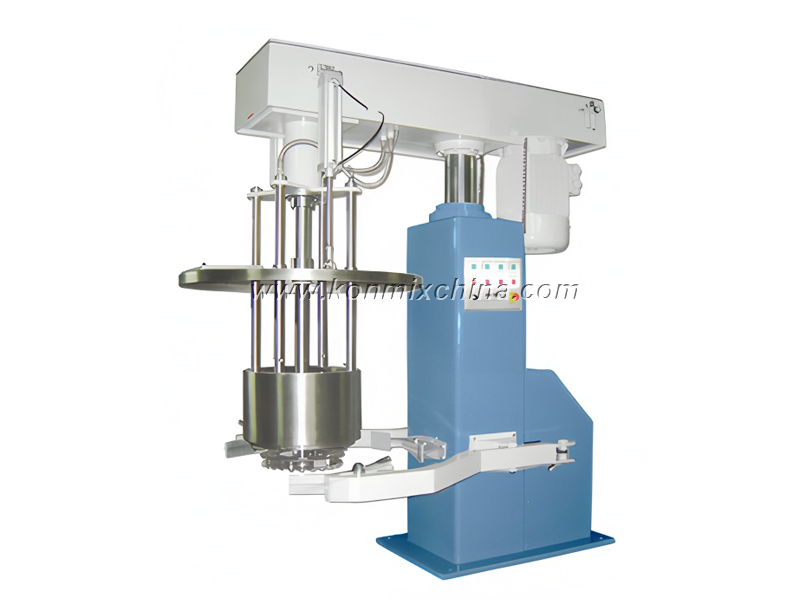

Basket Mill is wet grinding machine, this model has a lifting cover/lid.
Baset mill has gathered the dispersing & milling two processes into one machine.
Without pump, it realizes one machine to do dispersion & grinding together, with high work efficiency.
This machine will reduce product residues.
The lid/cover can prevent dust or materials overflow out.
• With a cover/lid to avoid dust,materials splashing or volatilization.
• Without pump or pipelines, easy to clean.
• Liquid circulation system is generated between the material feeding rotor and toothed dispersing disc.
• The grinding beads are driven by the high-speed rod in basket chamber.
• The beads are high hardness which result in finemilling effect.
• Good milling fineness, high efficiency, and uniform particle distribution are easily achieved.
• Without dead-corner, little residue, and easy to change color or other products.
• This model is widely used in paint,coatings, printing ink, pigment, color paste, pesticide,-- etc.
• Lifting ways: with hydraulic cylinder to drive the lifting up & falling down.

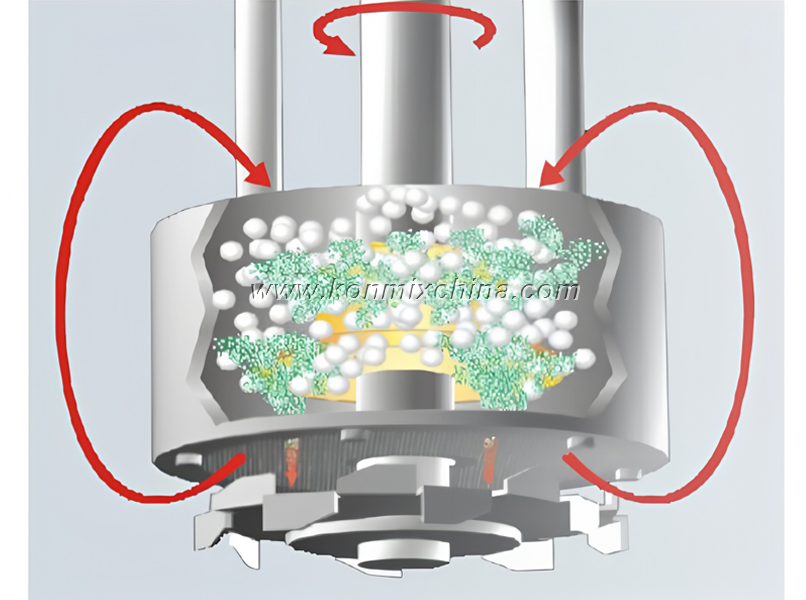

The chamber's rotor/pin drives zirconia disc at high speed, which makes the upper part of dispersing disc and inner grinding chamber become negative pressure.
The liquid or slurry material is inhaled into grinding chamber. The grinding medium driven by the driving pin inside the chamber produces force in all directions, which put materials under the action of constant collision and friction to smaller the particle size and reducing fineness.
| Model | Capacity(L) | Power(kw) | Speed(rpm) | Basket volume(L) | Lift Stroke(mm) | Medium size(mm) | Hydraulic Power(kw) |
| KBM-C-2.2 | 5~20 | 2.2 | 0~2880 | 2 | 600 | 1.2~1.6 | 0.55 |
| KBM-C-4 | 10~60 | 4 | 0~1440 | 3.5 | 800 | 1.2~1.6 | 0.55 |
| KBM-C-7.5 | 30~100 | 7.5 | 0~1440 | 4.8 | 900 | 1.2~1.6 | 0.75 |
| KBM-C-11 | 40~200 | 11 | 0~1440 | 6.5 | 900 | 1.2~1.6 | 0.75 |
| KBM-C-15 | 50~350 | 15 | 0~1440 | 9 | 900 | 1.2~1.6 | 0.75 |
| KBM-C-22 | 150~600 | 22 | 0~1440 | 20 | 1100 | 1.2~1.6 | 1.1 |
| KBM-C-30 | 200~800 | 30 | 0~1440 | 32 | 1100 | 1.2~1.6 | 1.1 |
| KBM-C-37 | 300~1000 | 37 | 0~1440 | 40 | 1600 | 1.2~1.6 | 1.1 |
| KBM-C-45 | 400~1200 | 45 | 0~1440 | 52 | 1600 | 1.2~1.6 | 1.1 |
| KBM-C-55 | 500~1600 | 55 | 0~1440 | 65 | 1600 | 1.2~1.6 | 1.1 |
| KBM-C-75 | 800~2000 | 75 | 0~1200 | 85 | 1800 | 1.2~1.6 | 2.2 |
| KBM-C-90 | 1000~3000 | 90 | 0~960 | 105 | 1800 | 1.2~1.6 | 2.2 |
| KBM-C-110 | 1500~4000 | 110 | 0~960 | 132 | 2000 | 1.2~1.6 | 3 |
Remarks:
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.
* Not all products' parameter are listed. For more information, please contact us by info@konmixchina.com .
This machine is suitable to do the materials of viscosity up to 8,000 cps.
Production capacity scope: 50 ~ 10000Liters.
It is suitable for industrial of coatings, general printing inks, paint, and general pigment dispersions, cosmetic,
adhesive, ointment, cream, shampoo, calcium carbonate powder, liquids agrochemicals etc.
