Category： Powder equipment

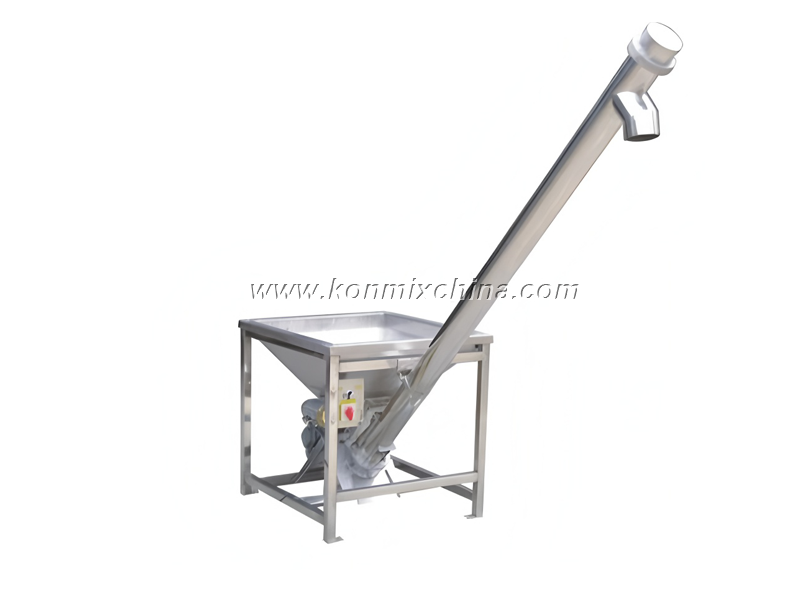

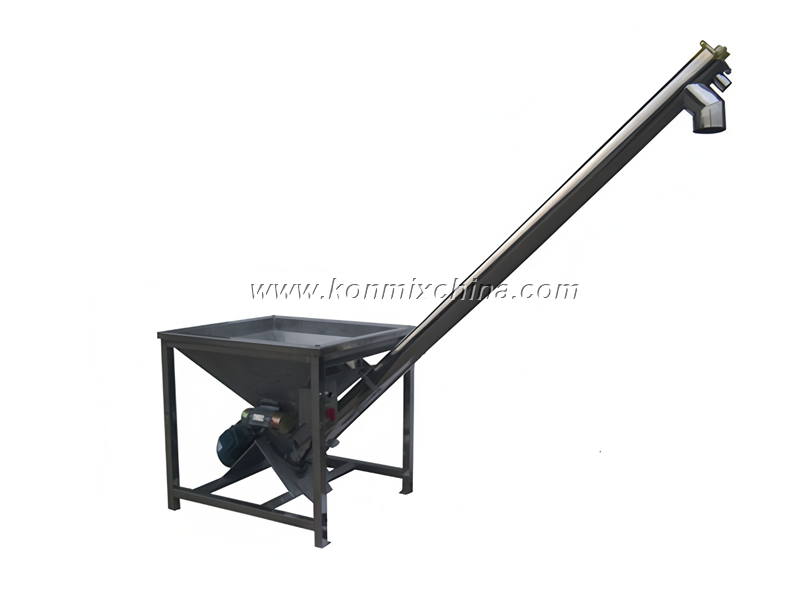

Model：KMPL Series
Feature： For powder conveying use, it can continuously feed powders, without leakage
This conveyor's spiral head is with high rotation speed.
With large conveying scale, precised measurement and good feeding work.
This machine is a safe and reliable product, no leaking-out of powdery dust and can be considered as an ideal product of new generation for environmental protection.
• The driving device adopts gearbox reducer which embodies the merits of large torque.
• Low noise, no oil seepage and with a long lifetime.
• The tube is made of high quality seamless pipes which are connected by flange.
• Its overall rigidity is good and bearing capacity is large.
• Continuous feeding can be realized whether horizontally or in a large inclined angle.
• Working place and posture can be chosen.
• It is convenient to do assembly & disassembly and relocation.
• Charging angle: Standard 45 degree,30~60 degree are also available.
• Charging Height: Standard 1.85M,1～5M could be designed and manufactured.
• Square hopper, with vibrator, Round hopper could be designed and manufactured.
• Fully stainless steel structure, contact parts SS304.
With large conveying scale, precised measurement and good feeding work.
This machine is a safe and reliable product, no leaking-out of powdery dust and can be considered as an ideal
product of new generation for environmental protection.
| Model | Feeding capacity(m3/h) | Power(kw) | Screw tube dia. (mm) | Screw dia. (mm) | Speed(rpm) | Tube loading(m) |
| KMPL-S2 | 8 | 2.2 | Φ133 | Φ90 | 300 | 4 |
| KMPL-S3 | 20 | 5.5 | Φ159 | Φ140 | 200 | 6 |
| KMPL-S5 | 30 | 7.5 | Φ219 | Φ185 | 200 | 8 |
| KMPL-S7 | 50 | 11 | Φ273 | Φ237 | 200 | 10 |
Remarks:
* The above listed data is calculated according to powder's gravity of 1.0g/cm3 as medium. Model selection should depend on the
comprehensive factors, such as viscosity, mesh, gravity etc.
* If works under special environment, such as high temperature, high pressure, explosive, combustible, corrosive etc. Users need to
provide detailed data, in order to select and customize.
* Not all products’ parameter are listed. For more information, please contact our sales engineer by info@konmixchina.com.

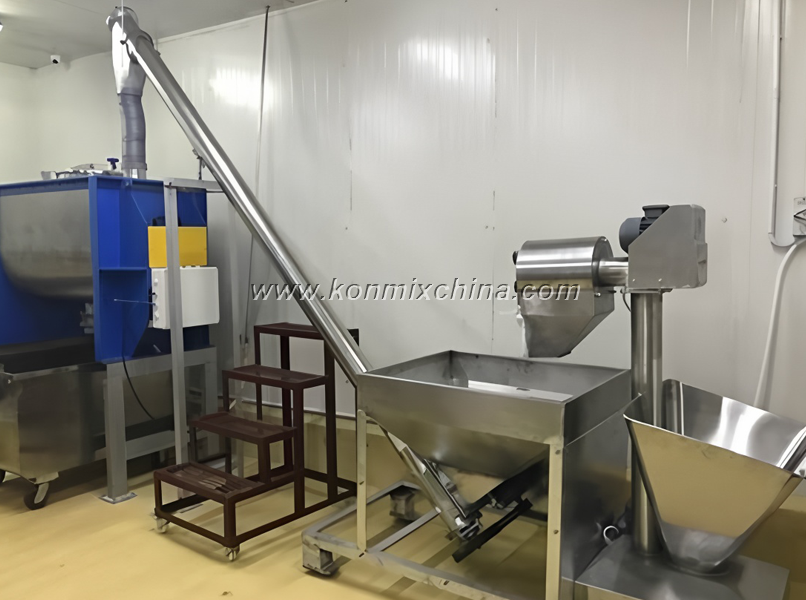

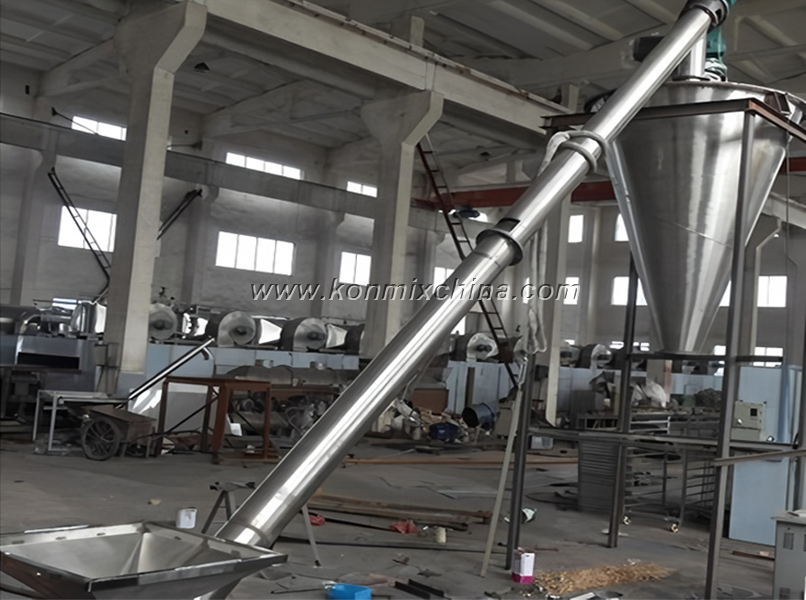

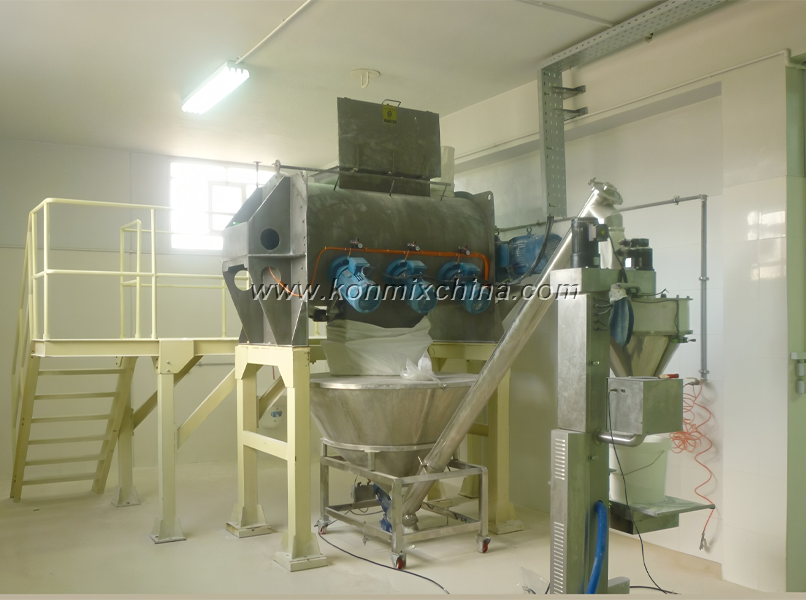

It is widely used for conveying the powders, such as pharmaceutical, food, animal feed, pesticide, dye, chemical,
plastic, ceramic, sand, coating, putty, sand, mortar and other industries.
