Category： Powder equipment
Model：KMP

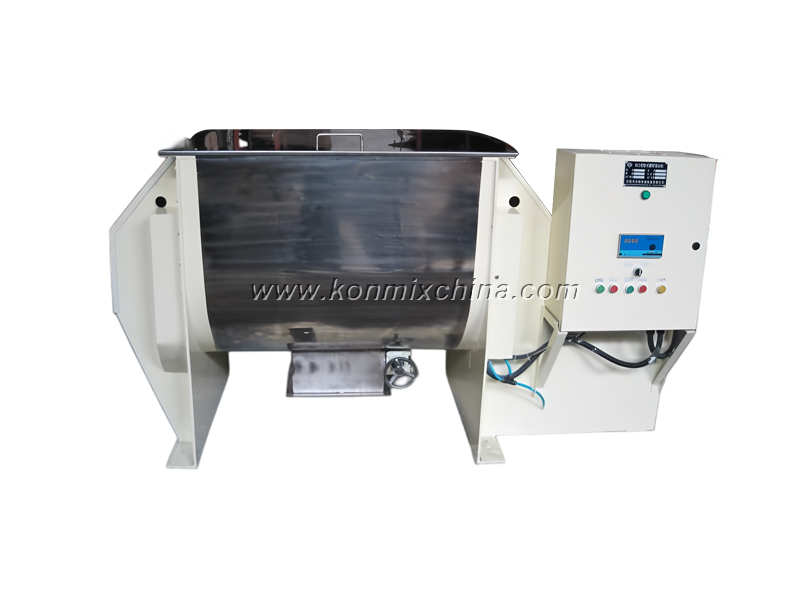

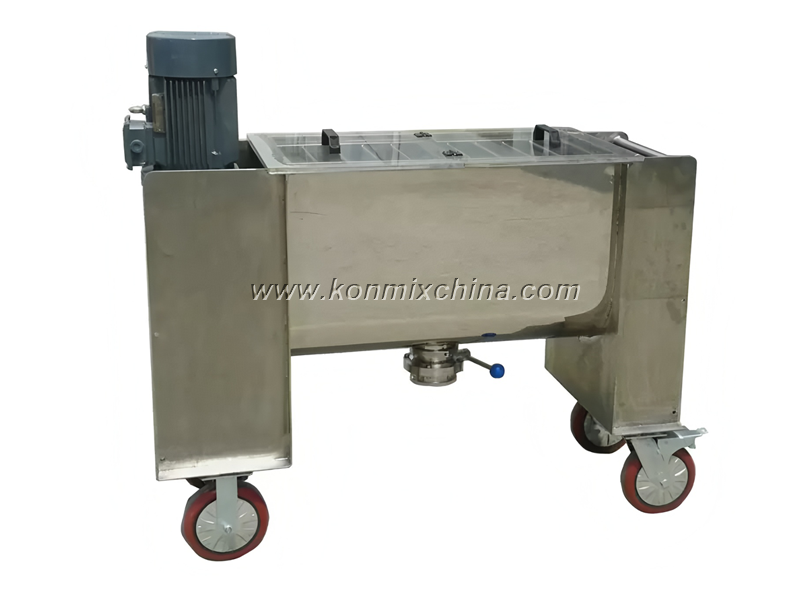

Feature： This model is suitable to mix small trials powders & powder with liquid materials, contacting parts made of stainless-steel
Lab powder mixers have a few models: lab ribbon mixer, lab plough blender, lab non-gravity mixer, and lab V-shape mixer.
Most customers need lab mixer to test their new formulas before making production line in order to save risk and make sure if this mixer is suitable or not to mix their materials.
All of our mixers can be lab mixer and designed totally meet customer's requirement.
The rotation-speed can be controlled on panel, and RPM is digital displayed.
• This lab powder mixer has a good result in the mix of viscosity or cohesion powders.
• The chamber's cylinder cover can be fully open so as to clean and change the device.
• Machine's all contacting parts are made of SS304 stainless steel.
• Machine's surface is mirror polished, easy to clean.
• Work-chamber can be made with the Heating/Cooling jacket.
• Vaccum work condition also can be customized.

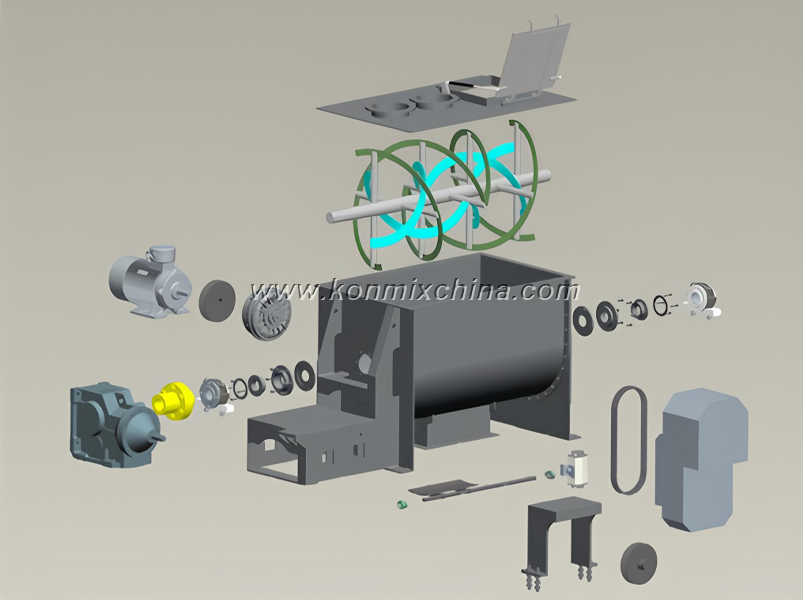

This mixer is equipped with a double spiral blade on the shaft. Through the efficient operation of the transmission shaft, it makes the inner and outer spiral belts flip the materials in a wide range.
The inner spiral belt drives the material toward both sides, and the outer spiral belt drives the material to move toward from both sides.
At the same time, part of the material driven by the spiral belt radial motion along the axis.
The convection shear can be formed and it realizes omni-directional non-dead angle depth mixing to realize that the material is quickly and uniformly mixed in a short time.
1. Motor: can be customized on Explosion-proof type.
2. Power: 1.5kW ~ 7.5kW.
3. Power supply: 380/220V, 50HZ, 3Phase; or same as client's need.
4. Speed control: can customize the various speed controllings.
5. Revolution Seed: 0~56RPM.
6. Capacity: 30L, 50L, 100L and 150L model is for optional.
7. Contacting parts' material: made of SS304 stainless-steel.
8. With top opening gate on work-chamber.
9. With bottom discharging outlet & valve.
It is widely used in stirring and mixing powder and powder, powder and liquid, such as pharmaceutical, food, animal feed, pesticide, dye, chemical, plastic, ceramic,shampoo, coating, putty, sand, mortar and other industries.
