Name: Extruder Machine
Category: Extruder / pressing Machine
Model: KYJ Series
Feature: This model is for high viscous materials discharging out of the tank
Overview

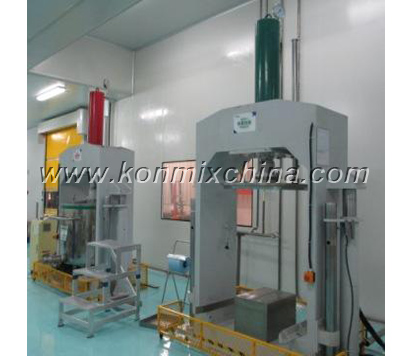

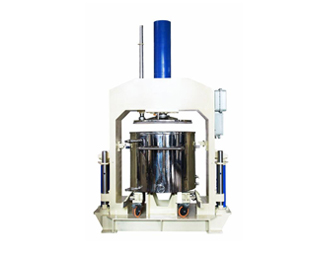

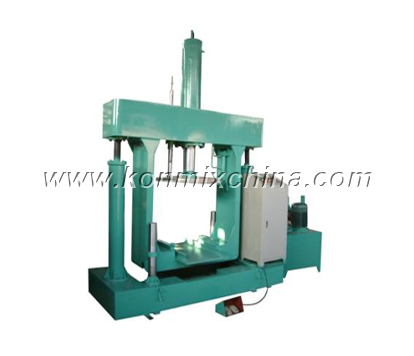

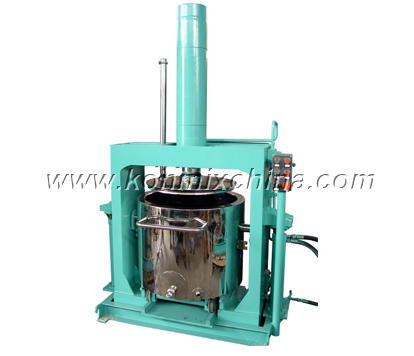

KYJ Pressing Machine is designed for the discharging of high viscosity materials.
This machine is consisted of standing base, hydraulic system, cylinder, disk and control panel.
Design Highlights
• This machine can work as a general pressing feeder.
• We have a special design for cartridge bucket filling,and materials without leakage.
• It can work under pressure maintaining and stable pressure condition.
• The disk ring contacts with vessel's inner wall which will stop materials flowing back.
• This model discharges without any remains.
• Support stand is lifted up by hydraulic cylinder,and with operation control panel.
Technical Parameter
|
Model |
Pressing Disc |
Hydraulic Power |
Lift Stroke （mm） |
Lifting Stroke （mm） |
Pressure （T） |
|
KYJ-30 |
350 |
2.2 |
300 |
350 |
15 |
|
KYJ-50 |
400 |
2.2 |
400 |
450 |
15 |
|
KYJ-60 |
420 |
3 |
500 |
550 |
15 |
|
KYJ-100 |
550 |
4 |
600 |
650 |
25 |
|
KYJ-200 |
650 |
4 |
650 |
700 |
30 |
|
KYJ-300 |
750 |
4 |
700 |
800 |
50 |
|
KYJ-500 |
900 |
5.5 |
800 |
900 |
65 |
|
KYJ-800 |
1050 |
7.5 |
900 |
1100 |
80 |
|
KYJ-1000 |
1100 |
11 |
1000 |
1200 |
100 |
|
KYJ-1200 |
1200 |
15 |
1100 |
1200 |
120 |
|
KYJ-1500 |
1300 |
18.5 |
1100 |
1300 |
150 |
|
KYJ-2000 |
1400 |
22 |
1200 |
1450 |
200 |
Product Application
This machine is suitable to do the high viscosity materials discharging.
Production capacity: this model often use for lab trials and industrial production.
Applied materials: Suitable for many kinds of vicious chemical products, such as paint and coatings, adhesives, agrochemicals, inks, putty, silicones, glues, sealants, pastes, Dental, --- etc.
