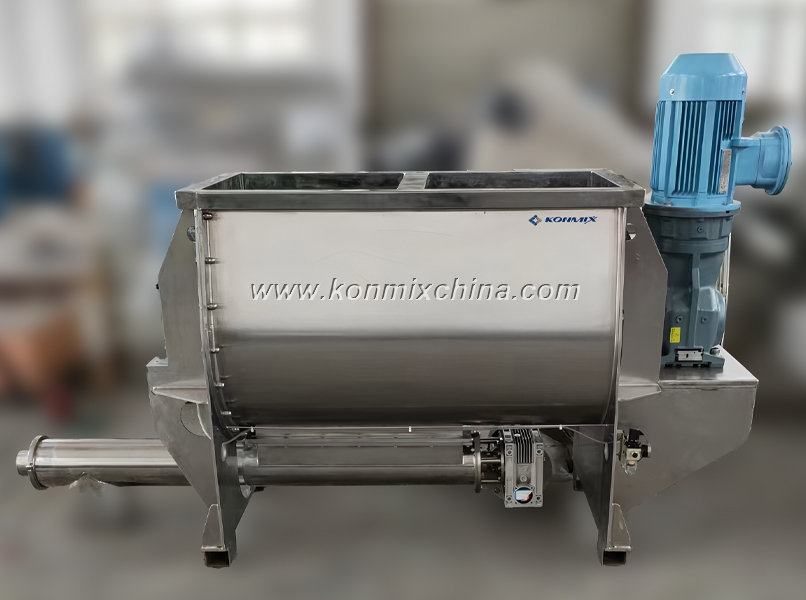

Category： Powder equipment
Model：KMWF
Feature： Ribbon mixer, suitable to blend powders & powder with liquid materials, with large diameter pneumatic discharging valve
This powder mixer can use for food industrial application.
It comprises of work-chamber, transmission parts and agitating blades.
This model usually has double layers ribbon head or the plough shear type mixing blade.
The contacting parts can be made in SS304 or SS316L stainless steel.
With different working capacity models for option.
• Food powder mixer has a good mixing for viscosity liquid or cohesion powder.
• It is good at mixing food type materials.
• The chamber's cylinder cover can be fully open so as to clean and change the device.
• This mixer has double seals design, without any leakages.
• It can be made by GMP designing with FDA certificate of non-metal part of mixer.
• Drying/cooling jacket and vacuum design is optional.
• With heavy-duty design for high loading works.
• Whole machine is easy cleaning and maintenance.

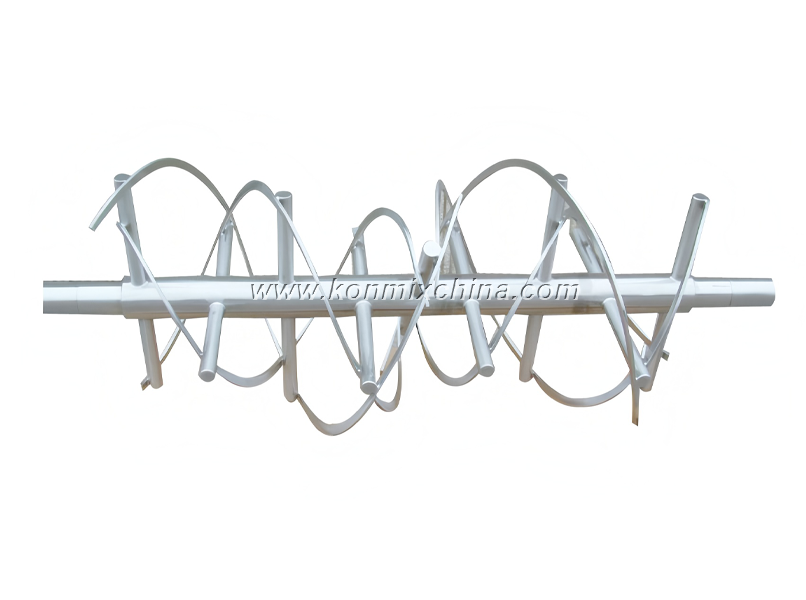

This type powder mixer is equipped with a double spiral/ribbon blade or plough shear mixing blades.
Through the efficient operation of the transmission shaft, it makes the inner and outer spiral belts flip the materials in a wide range. The inner spiral belt drives the material toward both sides, and the outer spiral belt drives the material to move inward from both sides. At the same time, part of the material driven by the spiral belt radial motion along the axis.
The convection shear can be formed and it realizes omni-directional non-dead angle depth mixing to realize that the material is quickly and uniformly mixed in a short time.
| Model | Power(kw) | Speed(rpm) | Chamber Vol.(Liter) | Capacity(Liter) | Shape size(mm) | Weight(kg) |
| KMWF-0.1 | 3 | 43 | 100 | 30~80 | 1500*500*700 | 400 |
| KMWF-0.3 | 5.5 | 43 | 300 | 90~240 | 1900*700*1050 | 800 |
| KMWF-0.5 | 7.5 | 43 | 500 | 150~400 | 2500*900*13000 | 900 |
| KMWF-1 | 15 | 43 | 1000 | 300~800 | 2950*1000*1400 | 1600 |
| KMWF-2 | 18.5 | 33 | 2000 | 600~1600 | 3350*1200*1700 | 2100 |
| KMWF-3 | 22 | 33 | 3000 | 900~2400 | 3750*1300*1800 | 3000 |
| KMWF-4 | 30 | 33 | 4000 | 1200~3200 | 4150*1450*1900 | 3850 |
| KMWF-5 | 37 | 32 | 5000 | 1500~4000 | 4300*1500*2000 | 4500 |
| KMWF-6 | 45 | 32 | 6000 | 1800~4800 | 4500*1750*2100 | 6000 |
KMWF-8 | 55 | 28 | 8000 | 2400~6400 | 5000*1850*72200 | 7100 |
KMWF-10 | 75 | 28 | 10000 | 3000~8000 | 5500*1950*2350 | 8500 |
Remarks:
* The above listed data is calculated according to powder’s gravity of 1.0g/cm3 as medium. Model selection should depend on the
comprehensive factors, such as viscosity, mesh, gravity etc.
* If works under special environment, such as high temperature, high pressure, explosive, combustible, corrosive etc. Users need to provide
detailed data, in order to select and customize.
* Not all products' parameter are listed. For more information, please contact our sales engineer by info@konmixchina.com .
It is widely used in stirring and mixing food or similar type materials, and can mix the powder or powder and liquid, such as pharmaceutical, food, animal feed, and other industries.
